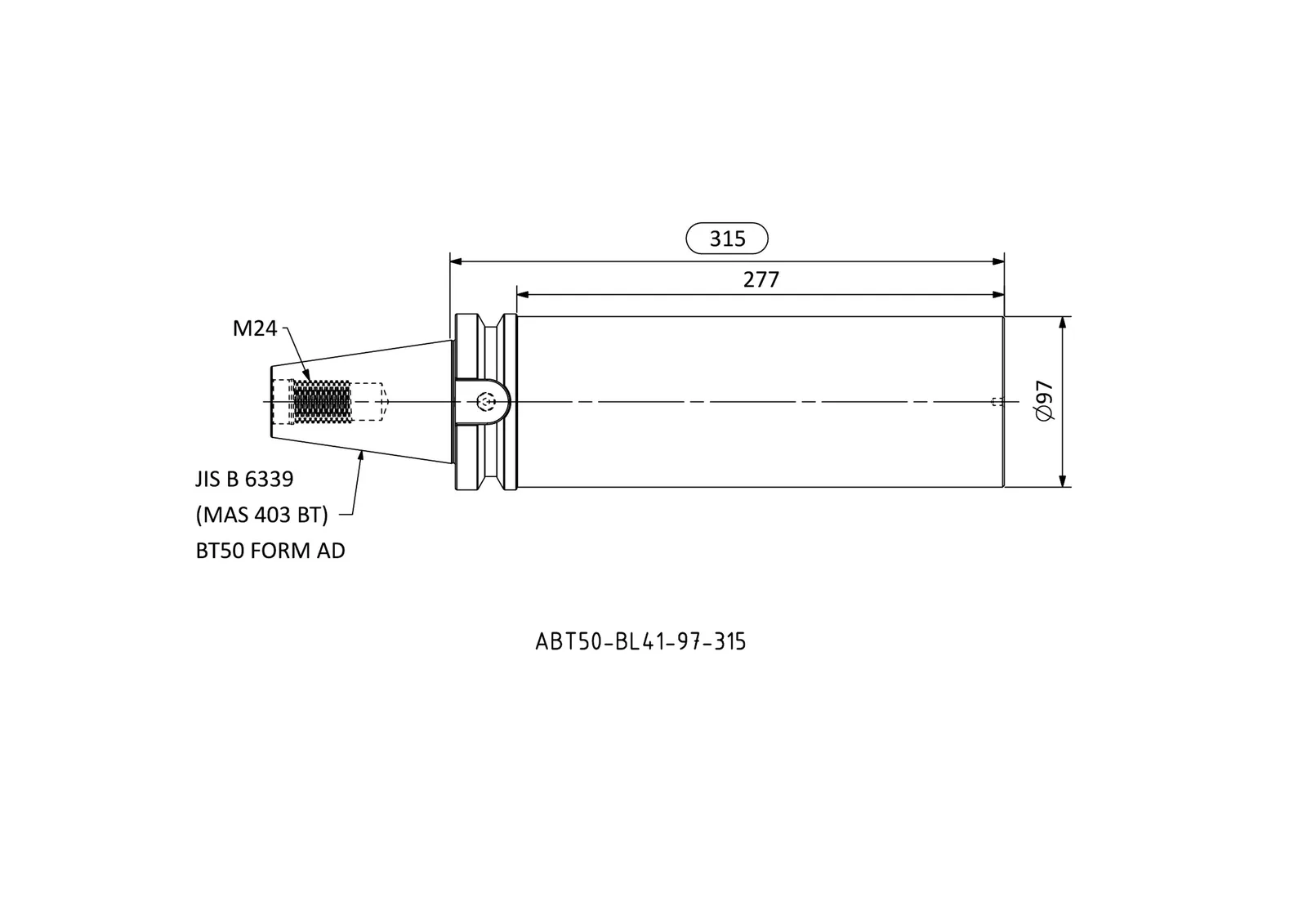

Specifications — ABT50-BL41-97-315
| SS | Spindle / taper size | 50 |
|---|---|---|
| CRKS | Clamping / retention thread | M24 |
| BD | Bore diameter (mm) | 97 |
| LPR | Protruding / projection length (mm) | 315 |
| BD2 | Second bore diameter (mm) | 0 |
| LBX | Maximum body length (mm) | 277 |
| KG | Weight (kg) | 19.61 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 2 sizes in ABT-BL41
| Product code | Spindle / taper size | Clamping / retention thread | Bore diameter (mm) | Body length (mm) |
|---|---|---|---|---|
| ABT40-BL41-63-250 | 40 | M16 | 63 | 213 |
| ABT50-BL41-97-315 | 50 | M24 | 97 | – |
