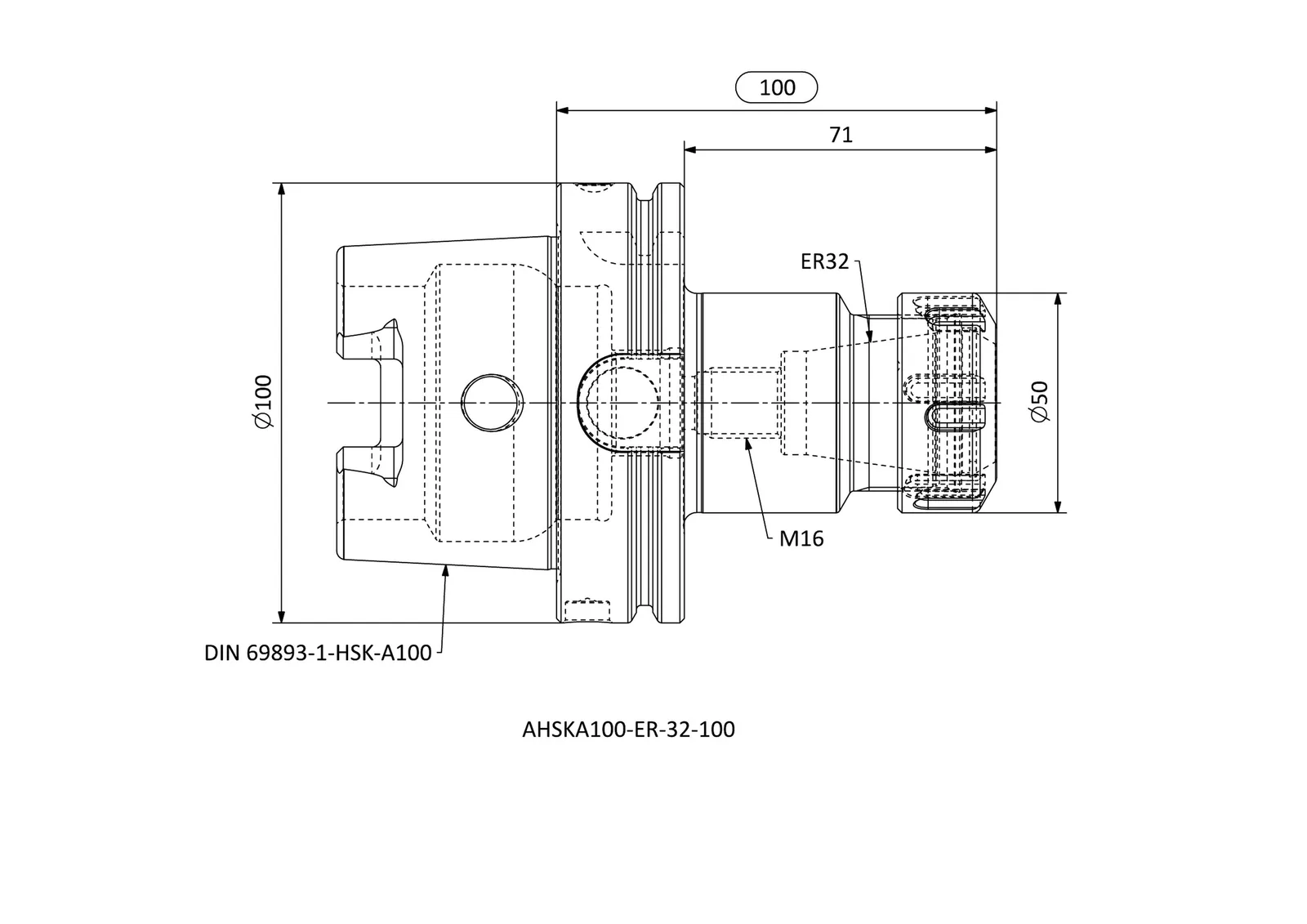

AHSKA100-ER-32-100

AHSK-ER series · see all 31 sizes

Specifications — AHSKA100-ER-32-100

BD	Bore diameter (mm)	50
LB	Body length (mm)	71
DCONMS	Connection diameter, machine side (mm)	100
CSI	CSI	ER32
DCONNWS	Connection diameter, neck, workpiece side (mm)	2
DCONXWS	Connection diameter, max, workpiece side (mm)	20
LPR	Protruding / projection length (mm)	100
THID	Thread inside diameter (mm)	M16

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

Product code	Bore diameter (mm)	Body length (mm)	Connection diameter, machine side (mm)	CSI
AHSKA32-ER-16-080	28	48	32	ER16
AHSKA32-ER-25-080	42	48	32	ER25
AHSKA40-ER-16-060	28	40	40	ER16
AHSKA40-ER-16-100	28	80	40	ER16
AHSKA40-ER-25-060	42	40	40	ER25
AHSKA40-ER-25-100	42	80	40	ER25
AHSKA40-ER-32-100	50	80	40	ER32
AHSKA50-ER-16-100	28	74	50	ER16
AHSKA50-ER-25-100	42	74	50	ER25
AHSKA50-ER-32-100	50	74	50	ER32
AHSKA63-ER-16-075	28	49	63	ER16
AHSKA63-ER-16-100	28	74	63	ER16
AHSKA63-ER-16-160	28	134	63	ER16
AHSKA63-ER-25-100	42	74	63	ER25
AHSKA63-ER-25-160	42	134	63	ER25
AHSKA63-ER-32-075	50	49	63	ER32
AHSKA63-ER-32-100	50	74	63	ER32
AHSKA63-ER-32-160	50	134	63	ER32
AHSKA63-ER-40-085	63	59	63	ER40
AHSKA63-ER-40-100	63	74	63	ER40
AHSKA63-ER-40-160	63	134	63	ER40
AHSKA80-ER-32-100	50	74	80	ER32
AHSKA80-ER-40-120	63	94	80	ER40
AHSKA100-ER-16-100	28	71	100	ER16
AHSKA100-ER-16-160	28	131	100	ER16
AHSKA100-ER-25-100	42	71	100	ER25
AHSKA100-ER-25-160	42	131	100	ER25
AHSKA100-ER-32-100	50	71	100	ER32
AHSKA100-ER-32-160	50	131	100	ER32
AHSKA100-ER-40-120	63	91	100	ER40
AHSKA100-ER-40-160	63	131	100	ER40
