Rotating Tools / ISO 12164-1 / HSK Shell Mill Holder

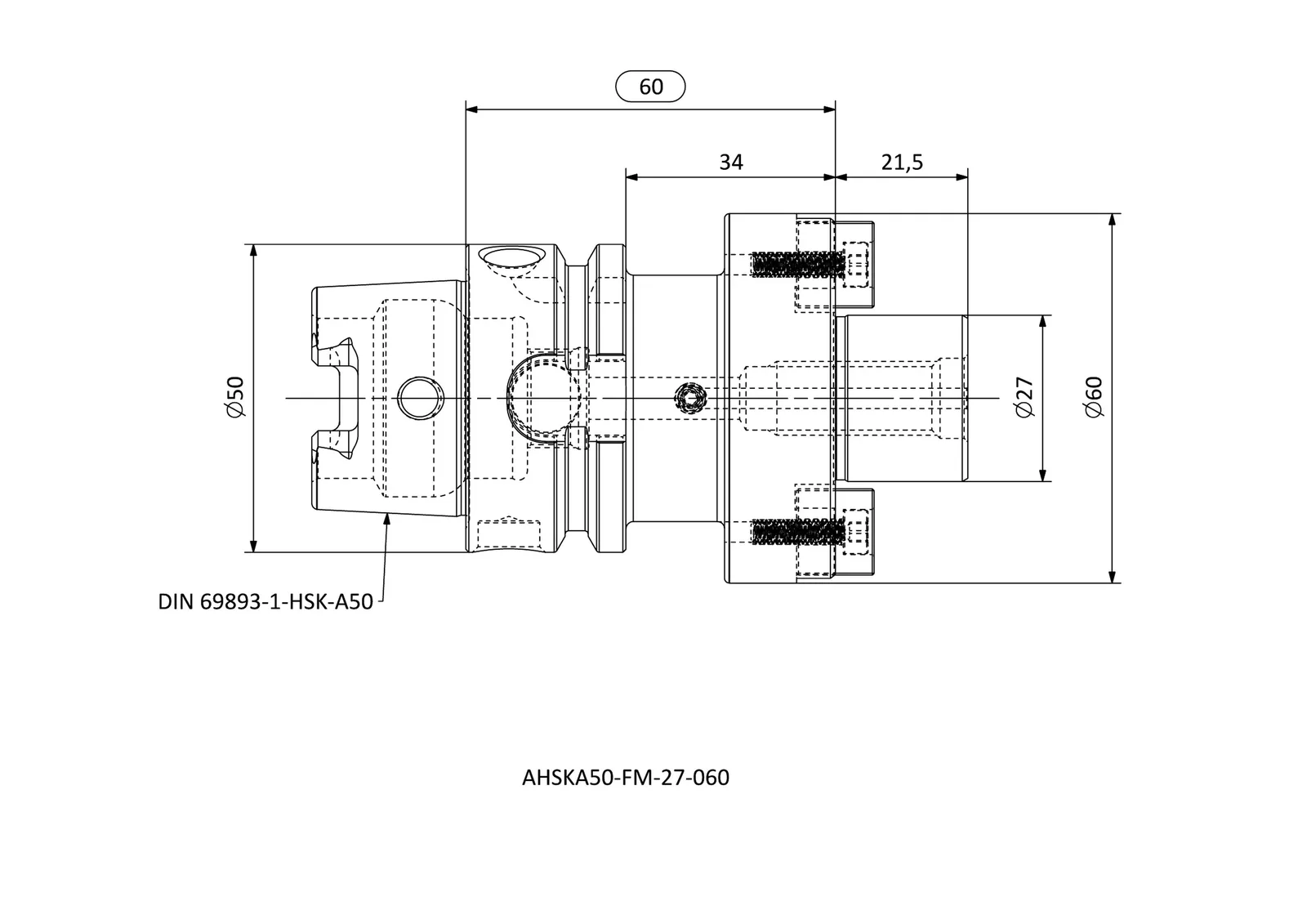

AHSKA50-FM-27-060

AHSK-FM series · see all 27 sizes

Specifications — AHSKA50-FM-27-060

BD	Bore diameter (mm)	60
LB	Body length (mm)	34
DCONMS	Connection diameter, machine side (mm)	50
DCONWS	Connection diameter, workpiece side (mm)	27
LF	Functional length (mm)	60
SCWS	SCWS	21.5

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

Product code	Bore diameter (mm)	Body length (mm)	Connection diameter, machine side (mm)	Connection diameter, workpiece side (mm)
AHSKA50-FM-16-050	38	24	50	16
AHSKA50-FM-16-100	38	74	50	16
AHSKA50-FM-22-060	48	34	50	22
AHSKA50-FM-22-100	48	74	50	22
AHSKA50-FM-27-060	60	34	50	27
AHSKA50-FM-32-060	78	34	50	32
AHSKA63-FM-16-050	38	24	63	16
AHSKA63-FM-16-100	38	74	63	16
AHSKA63-FM-22-050	48	24	63	22
AHSKA63-FM-22-100	48	74	63	22
AHSKA63-FM-27-060	60	34	63	27
AHSKA63-FM-27-100	60	74	63	27
AHSKA63-FM-32-060	78	34	63	32
AHSKA63-FM-32-100	78	74	63	32
AHSKA80-FM-22-100	48	74	80	22
AHSKA80-FM-27-100	60	74	80	27
AHSKA80-FM-32-100	78	74	80	32
AHSKA80-FM-40-100	88	74	80	40
AHSKA100-FM-16-160	38	131	100	16
AHSKA100-FM-22-100	48	71	100	22
AHSKA100-FM-22-160	48	131	100	22
AHSKA100-FM-27-100	60	71	100	27
AHSKA100-FM-27-160	60	131	100	27
AHSKA100-FM-32-100	78	71	100	32
AHSKA100-FM-32-160	78	131	100	32
AHSKA100-FM-40-100	88	71	100	40
AHSKA100-FM-40-160	88	131	100	40
