Rotating Tools / ISO 26623-1 / Polygonal Shank Collet Chucks ER Mini

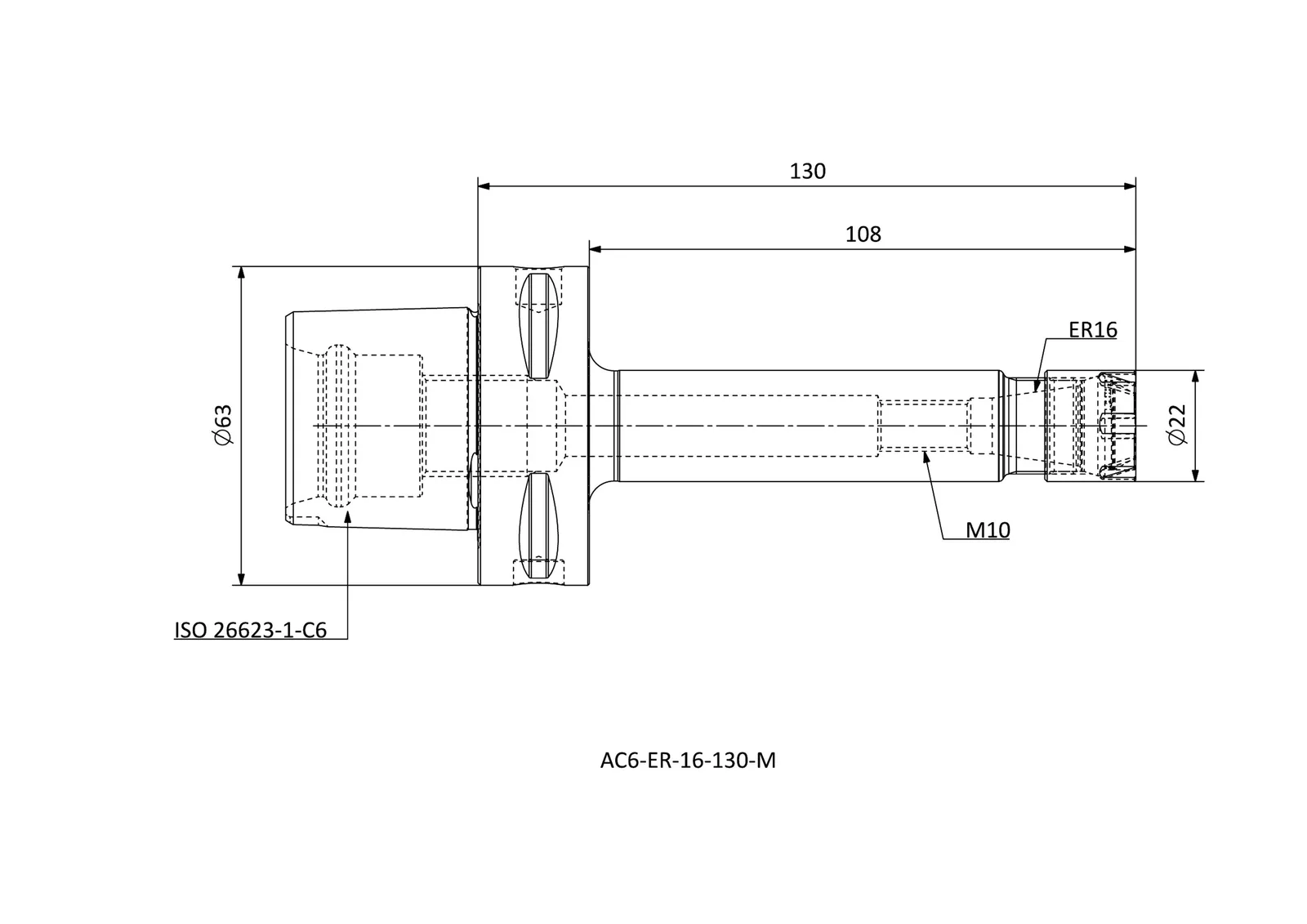

AC6-ER-16-130-M
AC-ER-M series · see all 5 sizes
Specifications — AC6-ER-16-130-M
| BD | Bore diameter (mm) | 22 |
|---|---|---|
| LB | Body length (mm) | 108 |
| DCONMS | Connection diameter, machine side (mm) | 63 |
| CSI | CSI | ER16 |
| DCONNWS | Connection diameter, neck, workpiece side (mm) | 0.5 |
| DCONXWS | Connection diameter, max, workpiece side (mm) | 10 |
| LPR | Protruding / projection length (mm) | 130 |
| THID | Thread inside diameter (mm) | 108 |
| KG | Weight (kg) | 1 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 5 sizes in AC-ER-M
| Product code | Bore diameter (mm) | Body length (mm) | Connection diameter, machine side (mm) | CSI |
|---|---|---|---|---|
| AC5-ER-16-130-M | 22 | 108 | 50 | ER16 |
| AC4-ER-16-070-M | 22 | 50 | 40 | ER16 |
| AC5-ER-16-100-M | 22 | 80 | 50 | ER16 |
| AC6-ER-16-100-M | 22 | 78 | 63 | ER16 |
| AC6-ER-16-130-M | 22 | 108 | 63 | ER16 |
