Rotating Tools / ISO 26623-1 / Polygonal Shank Shell Mill Holder

AC8-FM-40-060

AC-FM series · see all 18 sizes

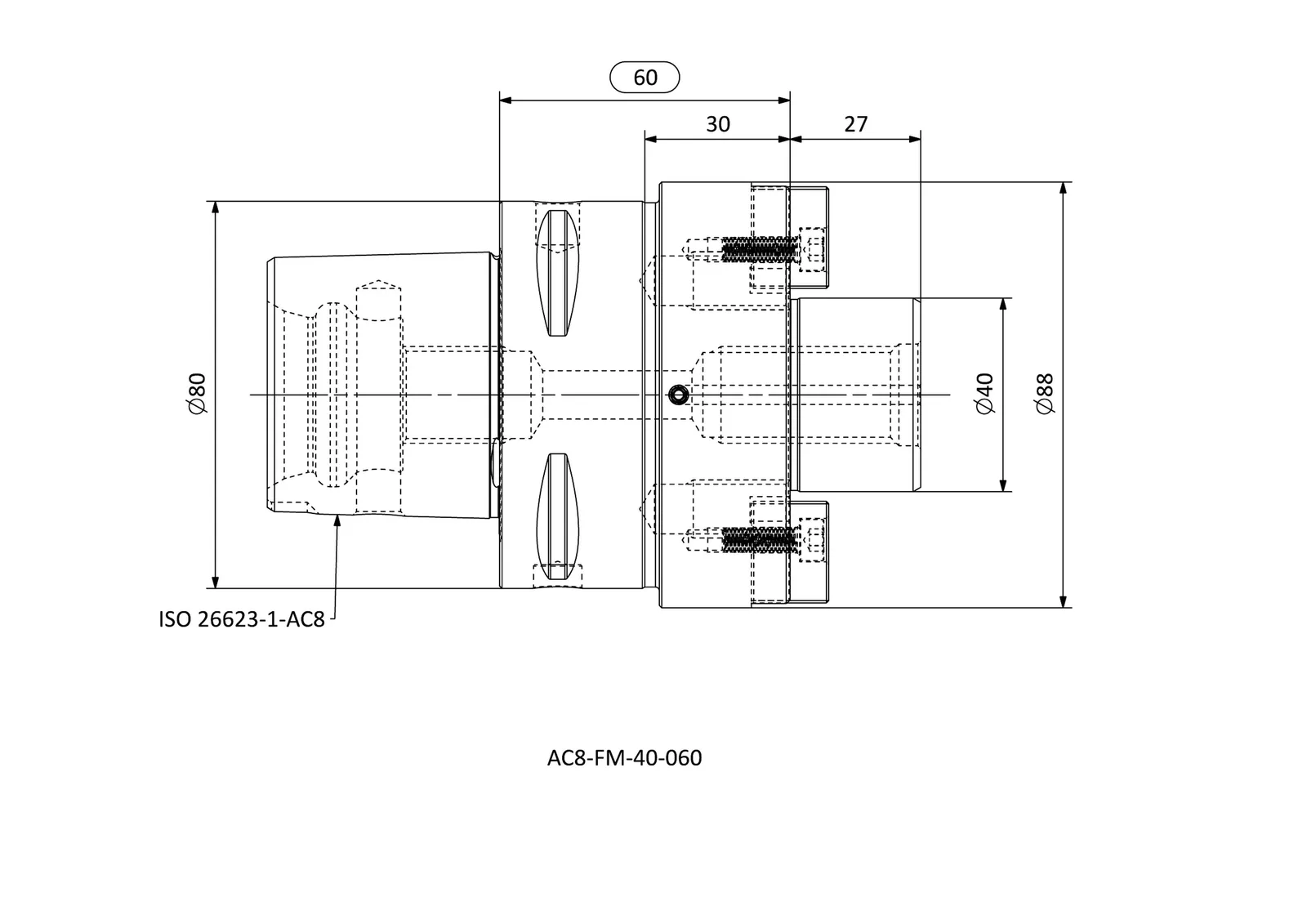

Specifications — AC8-FM-40-060

CRKS	Clamping / retention thread	M20
BD	Bore diameter (mm)	88
LB	Body length (mm)	30
DCONMS	Connection diameter, machine side (mm)	80
DCONWS	Connection diameter, workpiece side (mm)	40
LF	Functional length (mm)	30
SCWS	SCWS	27

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

Product code	Clamping / retention thread	Bore diameter (mm)	Body length (mm)	Connection diameter, machine side (mm)
AC3-FM-16-030	M12	38	15	32
AC4-FM-16-035	M14	38	15	40
AC4-FM-22-040	M14	48	20	40
AC5-FM-16-035	M16	38	15	50
AC5-FM-16-070	M16	36	50	50
AC5-FM-22-040	M16	48	20	50
AC5-FM-22-070	M16	48	50	50
AC5-FM-27-040	M16	60	20	50
AC6-FM-16-035	M20	38	28	63
AC6-FM-16-100	M20	38	78	63
AC6-FM-22-050	M20	48	28	63
AC6-FM-22-100	M20	48	78	63
AC6-FM-27-050	M20	60	28	63
AC6-FM-27-100	M20	60	78	63
AC6-FM-32-060	M20	78	38	63
AC8-FM-27-100	M20	60	70	80
AC8-FM-32-100	M20	78	70	80
AC8-FM-40-060	M20	88	30	80
