Rotating Tools / JIS B 6339 (MAS 403 BT) / BT Collet Chucks ER Mini

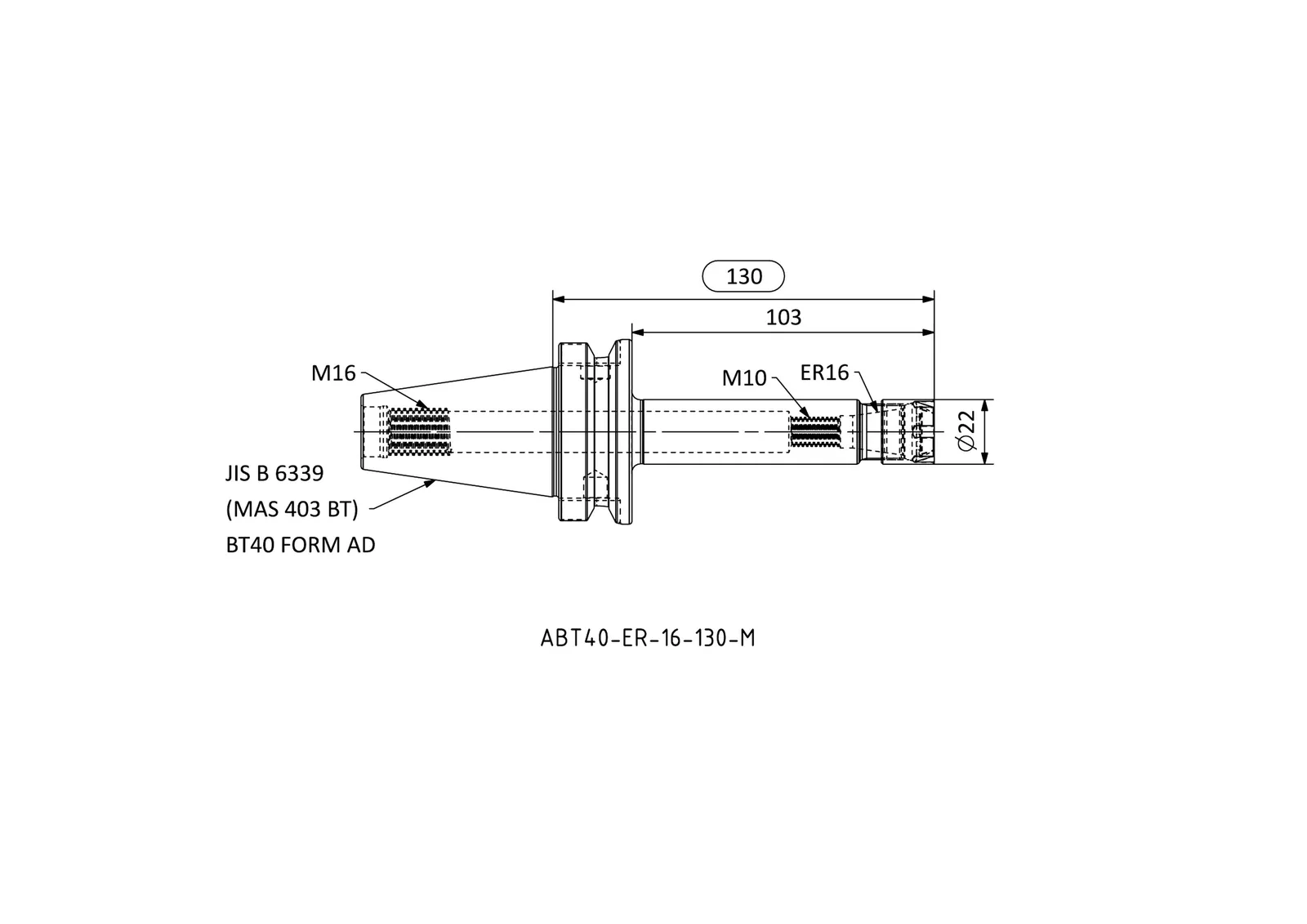

ABT40-ER-16-130-M
ABT-ER-M series · see all 5 sizes
Specifications — ABT40-ER-16-130-M
| SS | Spindle / taper size | 40 |
|---|---|---|
| CRKS | Clamping / retention thread | M16 |
| BD | Bore diameter (mm) | 22 |
| LB | Body length (mm) | 103 |
| CSI | CSI | ER16 |
| DCONNWS | Connection diameter, neck, workpiece side (mm) | 0.5 |
| DCONXWS | Connection diameter, max, workpiece side (mm) | 10 |
| LPR | Protruding / projection length (mm) | 130 |
| THID | Thread inside diameter (mm) | M13 |
| KG | Weight (kg) | 1.19 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 5 sizes in ABT-ER-M
| Product code | Spindle / taper size | Clamping / retention thread | Bore diameter (mm) | Body length (mm) |
|---|---|---|---|---|
| ABT40-ER-16-100-M | 40 | M16 | 22 | 73 |
| ABT40-ER-16-130-M | 40 | M16 | 22 | 103 |
| ABT50-ER-16-100-M | 50 | M24 | 22 | 62 |
| ABT50-ER-16-130-M | 50 | M24 | 22 | 92 |
| ABT50-ER-16-160-M | 50 | M24 | 22 | 122 |
