Rotating Tools / JIS B 6339 (MAS 403 BT) / BT End Mill Holder

ABT40-EM-10-100

ABT-EM series · see all 38 sizes

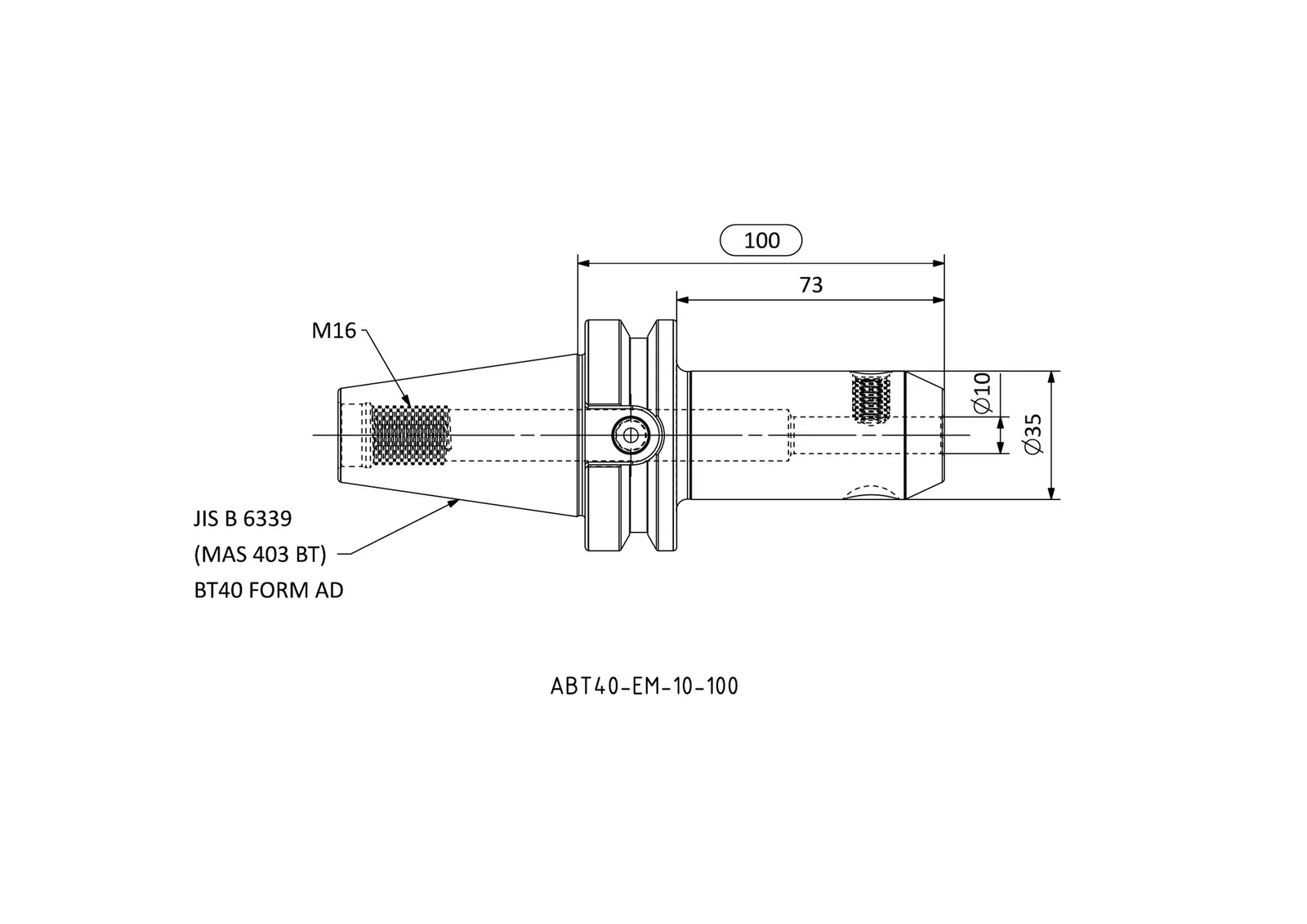

Specifications — ABT40-EM-10-100

SS	Spindle / taper size	40
CRKS	Clamping / retention thread	M16
BD	Bore diameter (mm)	35
LB	Body length (mm)	73
DCONWS	Connection diameter, workpiece side (mm)	10
LPR	Protruding / projection length (mm)	100
BD2	Second bore diameter (mm)	0
KG	Weight (kg)	1.41

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

Product code	Spindle / taper size	Clamping / retention thread	Bore diameter (mm)	Body length (mm)
ABT30-EM-06-050	30	M12	25	28
ABT30-EM-08-050	30	M12	28	28
ABT30-EM-10-050	30	M12	35	28
ABT30-EM-12-050	30	M12	42	28
ABT30-EM-14-050	30	M12	44	28
ABT30-EM-16-065	30	M12	48	43
ABT30-EM-18-065	30	M12	50	43
ABT40-EM-06-050	40	M16	25	48
ABT40-EM-06-100	40	M16	25	73
ABT40-EM-06-160	40	M16	25	133
ABT40-EM-08-050	40	M16	28	23
ABT40-EM-08-100	40	M16	28	73
ABT40-EM-08-160	40	M16	28	133
ABT40-EM-10-063	40	M16	35	36
ABT40-EM-10-100	40	M16	35	73
ABT40-EM-10-160	40	M16	35	133
ABT40-EM-12-063	40	M16	42	36
ABT40-EM-12-100	40	M16	42	73
ABT40-EM-12-160	40	M16	42	133
ABT40-EM-14-063	40	M16	44	36
ABT40-EM-14-100	40	M16	44	73
ABT40-EM-14-160	40	M16	44	133
ABT40-EM-16-063	40	M16	48	36
ABT40-EM-16-100	40	M16	48	73
ABT40-EM-16-160	40	M16	48	133
ABT40-EM-18-065	40	M16	50	38
ABT40-EM-18-100	40	M16	50	73
ABT40-EM-18-160	40	M16	50	133
ABT40-EM-20-063	40	M16	52	36
ABT40-EM-20-100	40	M16	52	73
ABT40-EM-20-160	40	M16	52	133
ABT40-EM-25-090	40	M16	63	63
ABT40-EM-25-130	40	M16	63	103
ABT40-EM-25-160	40	M16	63	133
ABT40-EM-32-100	40	M16	72	73
ABT40-EM-32-130	40	M16	72	103
ABT40-EM-32-160	40	M16	72	133
ABT40-EM-40-120	40	M16	79	93
