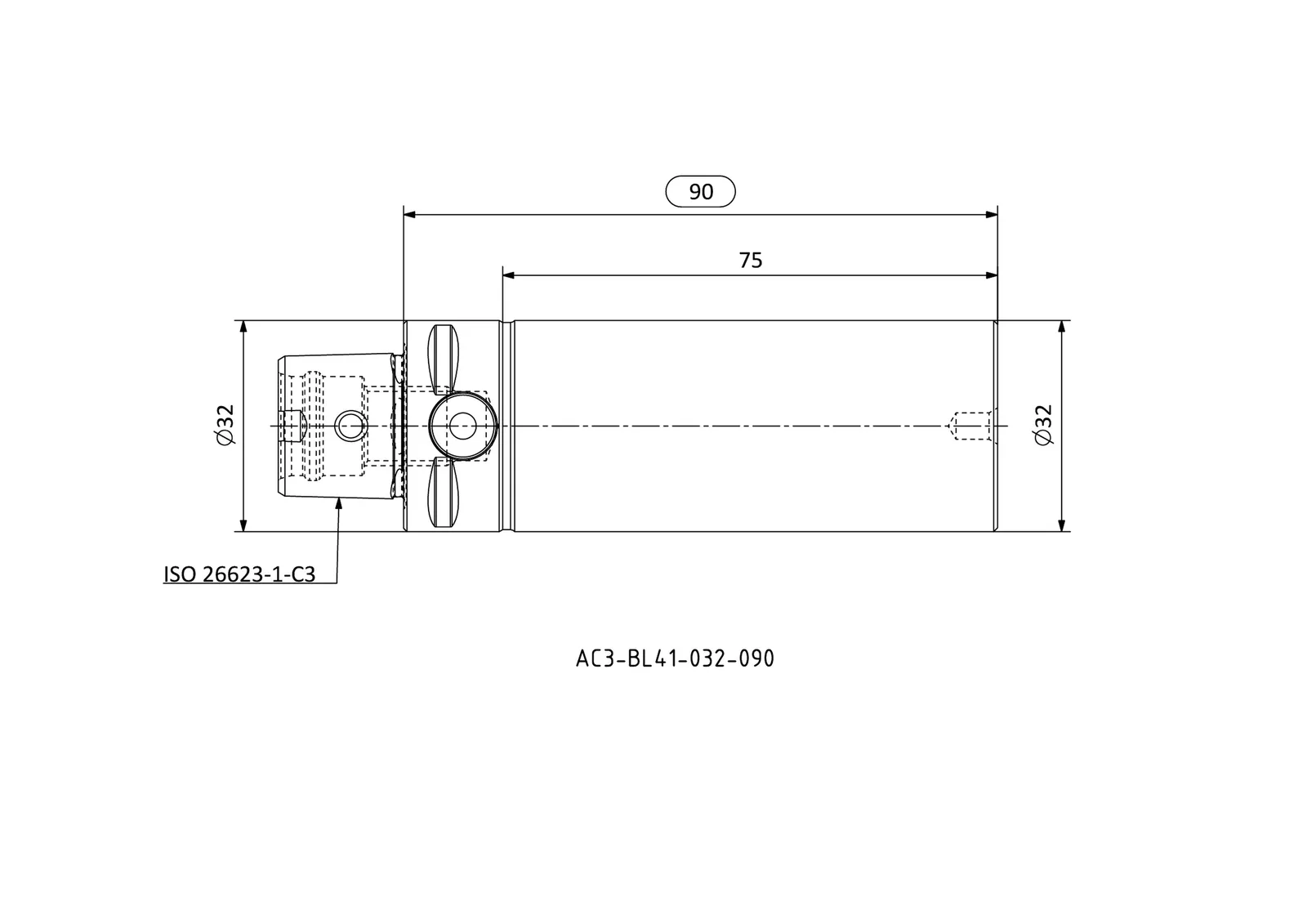

Specifications — AC3-BL41-032-090
| CRKS | Clamping / retention thread | M12x1.5 |
|---|---|---|
| BD | Bore diameter (mm) | 32 |
| LB | Body length (mm) | 75 |
| CONNECTION SIZE | Connection size | C3 |
| DCONMS | Connection diameter, machine side (mm) | 32 |
| LPR | Protruding / projection length (mm) | 90 |
| KG | Weight (kg) | 0.6 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 20 sizes in AC-BL41
| Product code | Clamping / retention thread | Bore diameter (mm) | Body length (mm) | Connection size |
|---|---|---|---|---|
| AC5-BL41-050-175 | M16x1.5 | 50 | 155 | C5 |
| AC5-BL41-075-070 | M16x1.5 | 75 | 50 | C5 |
| AC3-BL41-032-090 | M12x1.5 | 32 | 75 | C3 |
| AC3-BL41-060-090 | M12x1.5 | 60 | 75 | C3 |
| AC3-BL41-032-125 | M12x1.5 | 32 | 110 | C3 |
| AC4-BL41-040-045 | M14x1.5 | 40 | 25 | C4 |
| AC4-BL41-040-165 | M14X1.5 | 40 | 145 | C4 |
| AC4-BL41-052-065 | M14X1.5 | 52 | 44 | C4 |
| AC4-BL41-070-100 | M14x1.5 | 70 | 80 | C4 |
| AC5-BL41-050-050 | M16x1.5 | 50 | 30 | C5 |
| AC5-BL41-50-175 | M16x1.5 | 50 | 155 | C5 |
| AC5-BL41-75-070 | M16x1.5 | 75 | 50 | C5 |
| AC5-BL41-075-175 | M16X1.5 | 75 | 155 | C5 |
| AC6-BL41-063-048 | M20X2 | 110 | 62 | C6 |
| AC6-BL41-063-100 | M20x2 | 63 | 78 | C6 |
| AC6-BL41-063-195 | M20X2 | 63 | 78 | C6 |
| AC6-BL41-063-310 | M20X2 | 63 | 172 | C6 |
| AC6-BL41-080-250 | M20X2 | 80 | 228 | C6 |
| AC8-BL41-080-055 | M20x2 | 80 | 24 | C8 |
| AC8-BL41-120-160 | M20x2 | 120 | 129 | C8 |
