Rotating Tools / Pull Stud (DIN 69872-A)

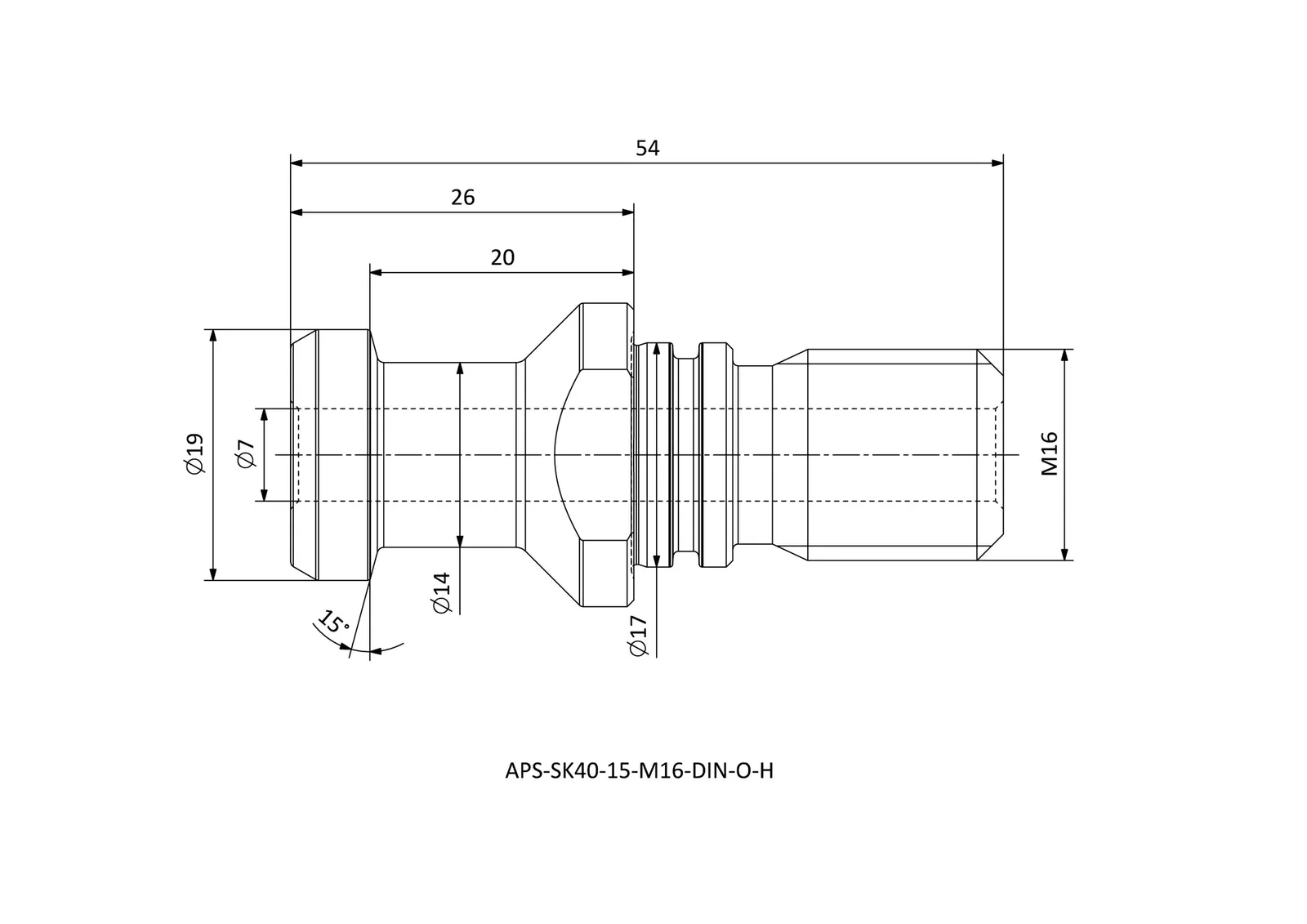

APS-SK40-15-M16-DIN-O-H
DIN 69872-A series · see all 6 sizes
Specifications — APS-SK40-15-M16-DIN-O-H
| SS | Spindle / taper size | 40 |
|---|---|---|
| CRKS | Clamping / retention thread | M16 |
| BD_3 | Third bore diameter (mm) | 19 |
| BD_2 | Second bore diameter (mm) | 14 |
| BD | Bore diameter (mm) | 17 |
| CND | Connection dimension | 7 |
| LB | Body length (mm) | 20 |
| OAL | Overall length (mm) | 20 |
| LB_2 | Second body length (mm) | 26 |
| BHTA | BHTA | 15 |
| Fig. | Figure | 2 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 6 sizes in DIN 69872-A
| Product code | Spindle / taper size | Clamping / retention thread | Third bore diameter (mm) | Second bore diameter (mm) |
|---|---|---|---|---|
| APS-BT40-15-M16-DIN-O-H | 40 | M16 | 19 | 14 |
| APS-SK40-15-M16-DIN-O-H | 40 | M16 | 19 | 14 |
| APS-SK40-15-M16-DIN-O | 40 | M16 | 19 | 14 |
| APS-BT40-15-M16-OKU-O-H | 40 | M16 | 19 | 14 |
| APS-SK50-15-M24-DIN-O-H | 50 | M24 | 28 | 21 |
| APS-SK50-15-M24-DIN-O | 50 | M24 | 28 | 21 |
