Rotating Tools / Pull Stud (ISO 7388-CAT)

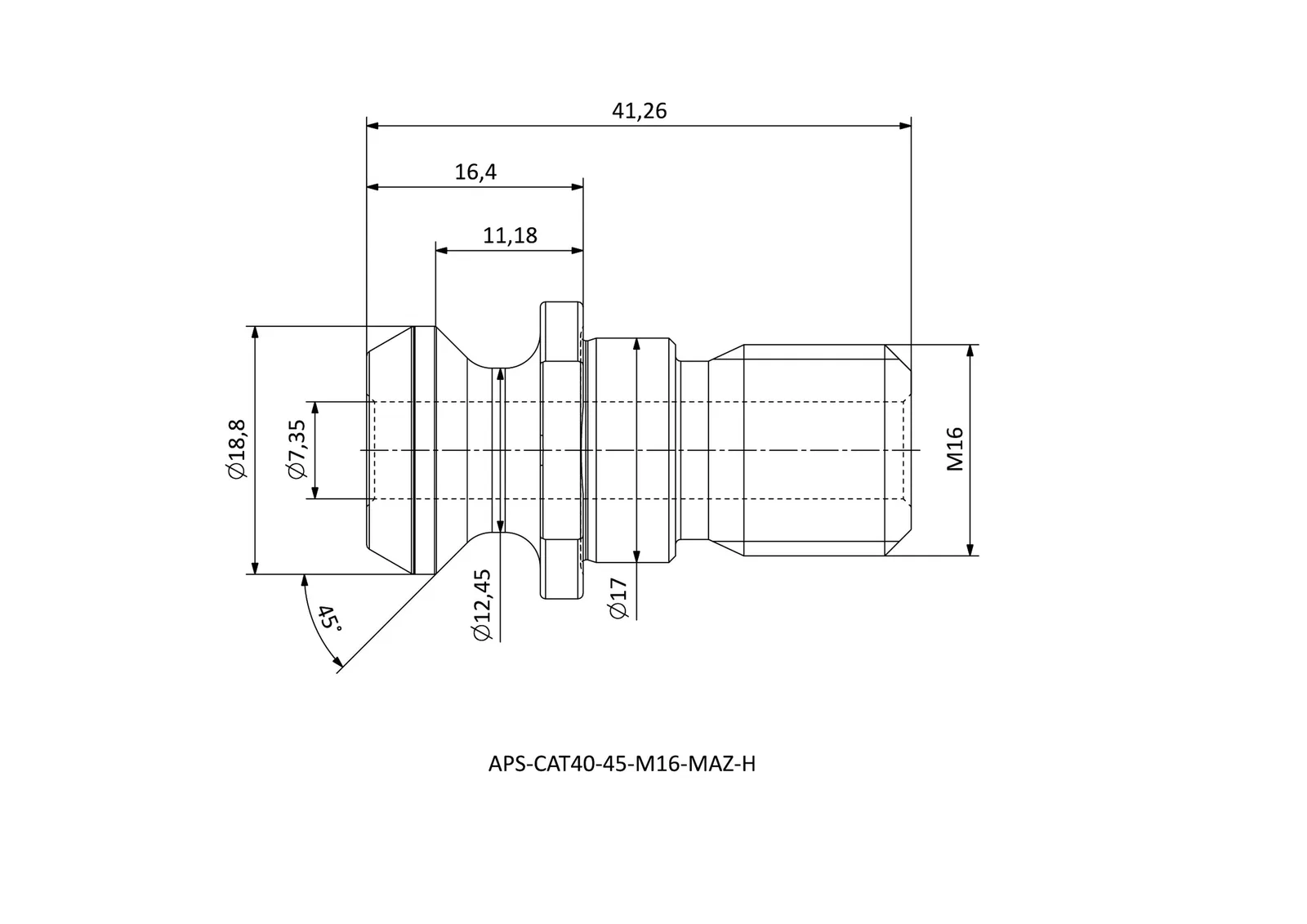

APS-CAT40-45-M16-MAZ-H
ISO 7388-CAT series · see all 2 sizes
Specifications — APS-CAT40-45-M16-MAZ-H
| SS | Spindle / taper size | 40 |
|---|---|---|
| CRKS | Clamping / retention thread | M16 |
| BD_3 | Third bore diameter (mm) | 18.8 |
| BD_2 | Second bore diameter (mm) | 12.45 |
| BD | Bore diameter (mm) | 17 |
| CND | Connection dimension | 7.35 |
| OAL | Overall length (mm) | 41.26 |
| LB_2 | Second body length (mm) | 16.4 |
| BHTA | BHTA | 45 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 2 sizes in ISO 7388-CAT
| Product code | Spindle / taper size | Clamping / retention thread | Third bore diameter (mm) | Second bore diameter (mm) |
|---|---|---|---|---|
| APS-BT40-45-M16-MAZ-H | 40 | M16 | 18.8 | 12.45 |
| APS-CAT40-45-M16-MAZ-H | 40 | M16 | 18.8 | 12.45 |
