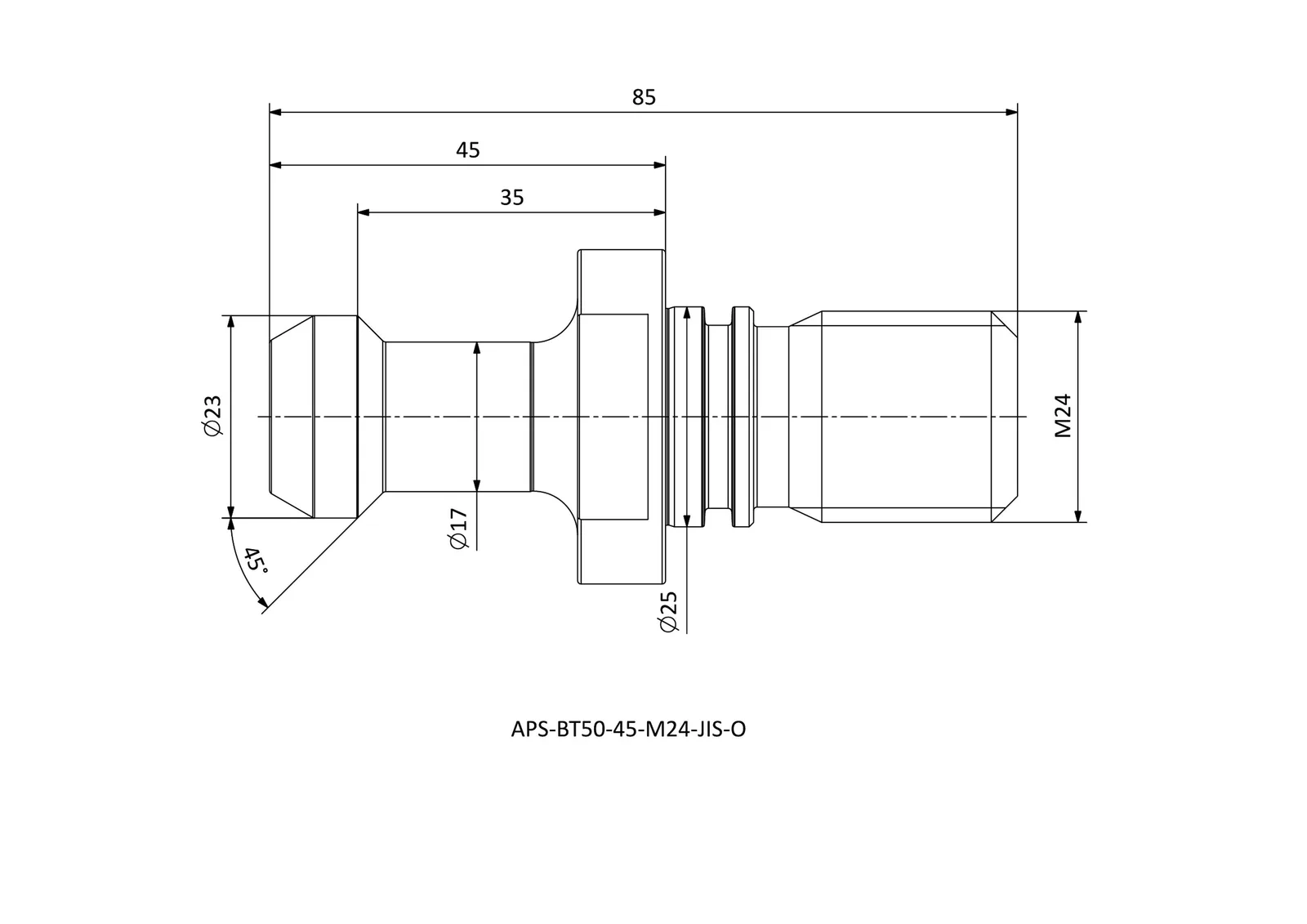

Specifications — APS-BT50-45-M24-JIS-O
| SS | Spindle / taper size | 50 |
|---|---|---|
| CRKS | Clamping / retention thread | M24 |
| BD_3 | Third bore diameter (mm) | 23 |
| BD_2 | Second bore diameter (mm) | 17 |
| BD | Bore diameter (mm) | 25 |
| CND | Connection dimension | 0 |
| LB | Body length (mm) | 35 |
| OAL | Overall length (mm) | 85 |
| LB_2 | Second body length (mm) | 45 |
| BHTA | BHTA | 45 |
| Fig. | Figure | 2 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 14 sizes in JIS B 6339
| Product code | Spindle / taper size | Clamping / retention thread | Third bore diameter (mm) | Second bore diameter (mm) |
|---|---|---|---|---|
| APS-BT30-45-M12-JIS | 30 | M12 | 11 | 7 |
| APS-BT40-45-M16-JIS-O-H | 40 | M16 | 15 | 10 |
| APS-BT30-45-M12-JIS-O-H | 30 | M12 | 11 | 8 |
| APS-BT40-45-M16-JIS-O | 40 | M16 | 15 | 10 |
| APS-BT50-45-M24-JIS-O | 50 | M24 | 23 | 17 |
| APS-BT50-45-M24-JIS-O-H | 50 | M24 | 23 | 17 |
| APS-BT30-60-M12-JIS | 30 | M12 | 11 | 7 |
| APS-BT40-60-M16-JIS-O-H | 40 | M16 | 15 | 10 |
| APS-BT50-60-M24-JIS-O | 50 | M24 | 23 | 17 |
| APS-BT50-60-M24-JIS-O-H | 50 | M24 | 23 | 17 |
| APS-BT40-90-M16-JIS-O | 40 | M16 | 15 | 10 |
| APS-BT40-90-M16-JIS-O-H | 40 | M16 | 15 | 10 |
| APS-BT50-90-M24-JIS-O | 50 | M24 | 23 | 17 |
| APS-BT50-90-M24-JIS-O-H | 50 | M24 | 23 | 17 |
