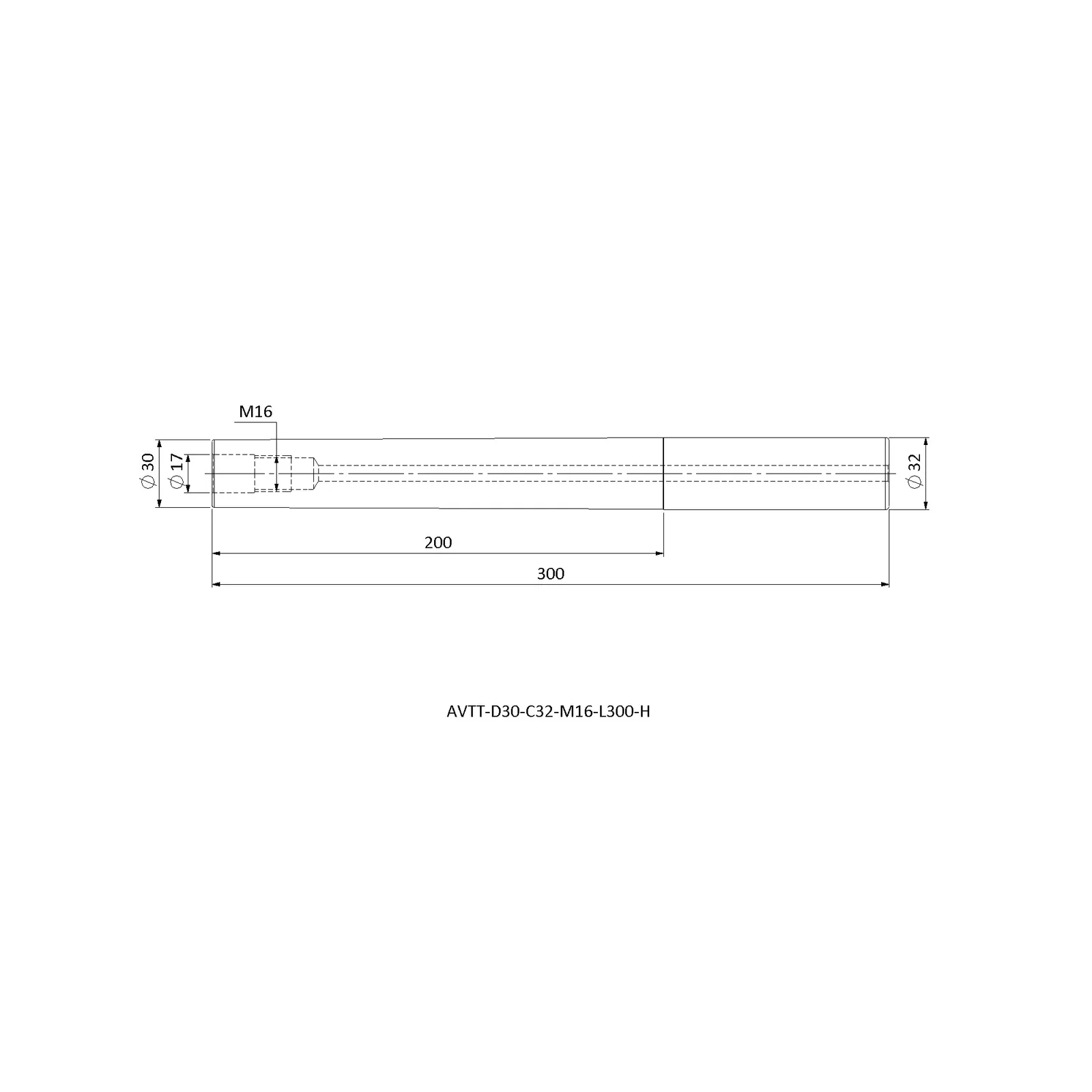

Specifications — AVTT-D30-C32-M16-L300-H
| BD | Bore diameter (mm) | 30 |
|---|---|---|
| OAL | Overall length (mm) | 300 |
| DCONMS | Connection diameter, machine side (mm) | 32 |
| DZ | Pilot / centre diameter (mm) | M16 |
| LH | Head length (mm) | 200 |
| DCONWS | Connection diameter, workpiece side (mm) | 17 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 11 sizes in AVTT
| Product code | Bore diameter (mm) | Overall length (mm) | Connection diameter, machine side (mm) | Pilot / centre diameter (mm) |
|---|---|---|---|---|
| AVTT-D13-C16-M08-L100-H | 13 | 100 | 16 | M08 |
| AVTT-D15-C16-M08-L130-H | 15 | 130 | 16 | M08 |
| AVTT-D18-C20-M10-L130-H | 18 | 130 | 20 | M10 |
| AVTT-D18-C20-M10-L160-H | 18 | 160 | 20 | M10 |
| AVTT-D23-C25-M12-L150-H | 23 | 150 | 25 | M12 |
| AVTT-D23-C25-M12-L200-H | 23 | 200 | 25 | M12 |
| AVTT-D23-C25-M12-L250-H | 23 | 250 | 25 | M12 |
| AVTT-D30-C32-M16-L150-H | 30 | 150 | 32 | M16 |
| AVTT-D30-C32-M16-L200-H | 30 | 200 | 32 | M16 |
| AVTT-D30-C32-M16-L250-H | 30 | 250 | 32 | M16 |
| AVTT-D30-C32-M16-L300-H | 30 | 300 | 32 | M16 |
