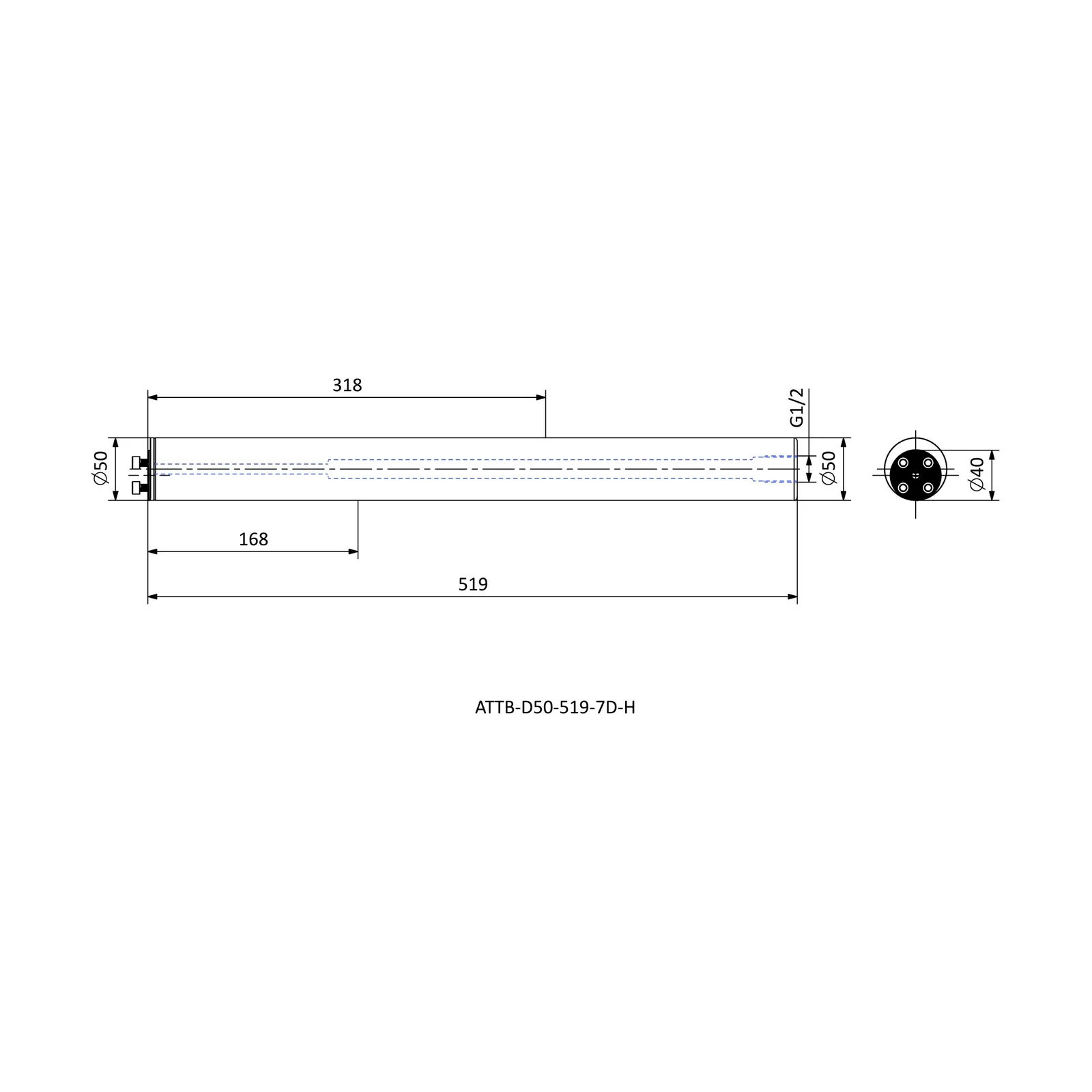

Specifications — ATTB-D50-519-7D-H
| Product Direction | Cutting direction (hand) | R |
|---|---|---|
| DCON | Connection diameter (mm) | 40 |
| OAL | Overall length (mm) | 519 |
| DCONMS | Connection diameter, machine side (mm) | 50 |
| OHN | Overhang, nominal (mm) | 168 |
| DCONWS | Connection diameter, workpiece side (mm) | 40 |
| OHX | Overhang, maximum (mm) | 318 |
| CNT | Coolant thread | G1/2 |
| D min | Minimum working diameter (mm) | 63 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 14 sizes in ATTB
| Product code | Cutting direction (hand) | Connection diameter (mm) | Overall length (mm) | Connection diameter, machine side (mm) |
|---|---|---|---|---|
| ATTB-D16-156-7D-H | R | 16 | 156 | 16 |
| ATTB-D16-204-10D-H-E | R | 16 | 204 | 16 |
| ATTB-D20-200-7D-H | R | 20 | 200 | 20 |
| ATTB-D20-260-10D-H-E | R | 20 | 260 | 20 |
| ATTB-D25-255-7D-H | R | 25 | 255 | 25 |
| ATTB-D25-330-10D-H | R | 25 | 330 | 25 |
| ATTB-D32-320-7D-H | R | 32 | 320 | 32 |
| ATTB-D32-416-10D-H | R | 32 | 416 | 32 |
| ATTB-D40-408-7D-H | R | 40 | 408 | 40 |
| ATTB-D40-528-10D-H | R | 40 | 528 | 40 |
| ATTB-D50-519-7D-H | R | 40 | 519 | 50 |
| ATTB-D50-669-10D-H | R | 40 | 669 | 50 |
| ATTB-D60-628-7D-H | R | 40 | 628 | 60 |
| ATTB-D60-808-10D-H | R | 40 | 808 | 60 |
