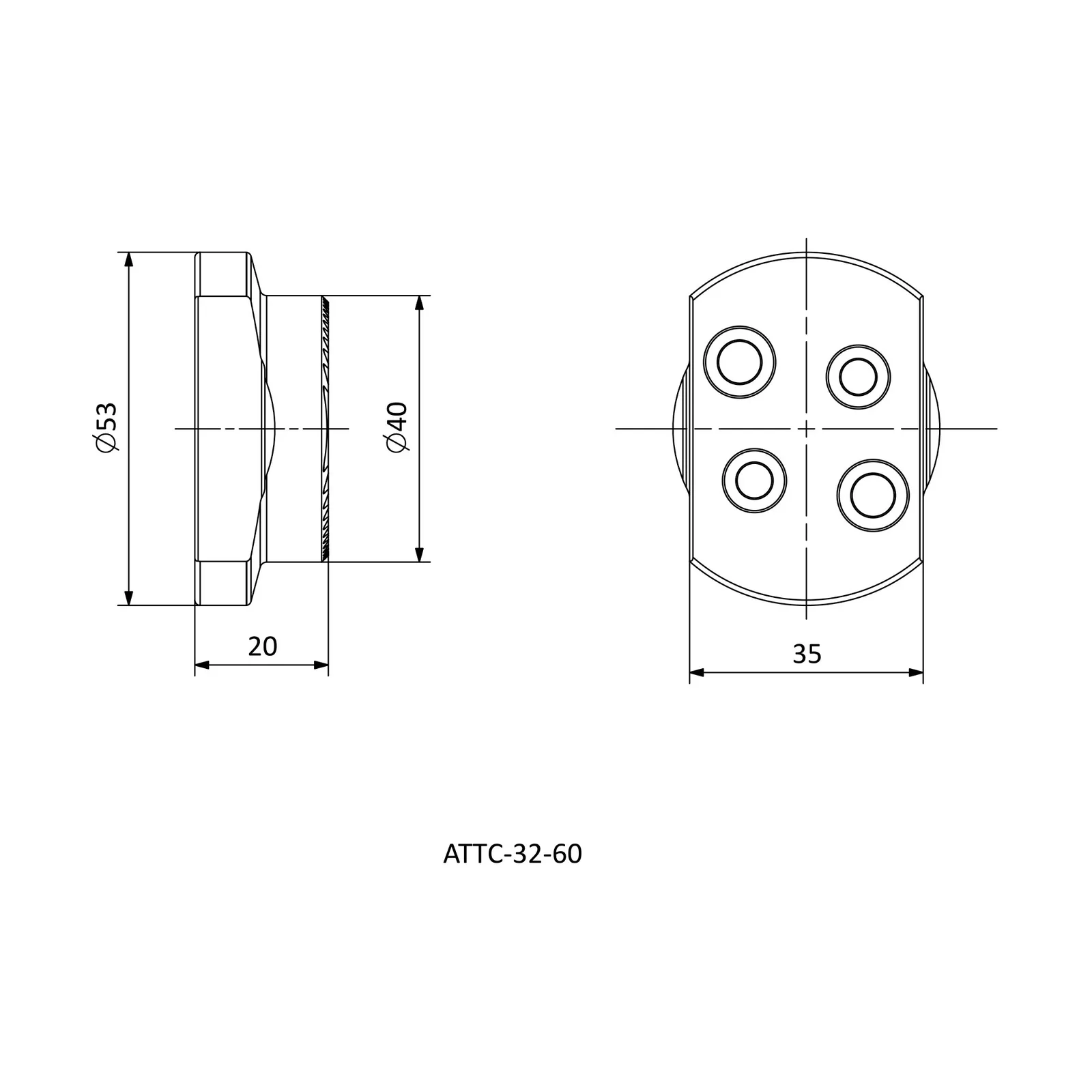

Specifications — ATTC-32-60
| Product Direction | Cutting direction (hand) | R |
|---|---|---|
| LF | Functional length (mm) | 20 |
| DCONMS | Connection diameter, machine side (mm) | 53 |
| DCONWS | Connection diameter, workpiece side (mm) | 40 |
| H | Shank height (mm) | 35 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 2 sizes in ATTC
| Product code | Cutting direction (hand) | Functional length (mm) | Connection diameter, machine side (mm) | Connection diameter, workpiece side (mm) |
|---|---|---|---|---|
| ATTC-16-25 | R | 15 | 25 | 28 |
| ATTC-32-60 | R | 20 | 53 | 40 |
