Tool Holders / Antivibration Tools
ATTC-A16 SCLCR 06
ATTC-SCLCR/L series · see all 12 sizes
Insert compatibility
This size is built for the insert designation CC.T 0602 (as listed in the catalogue data).

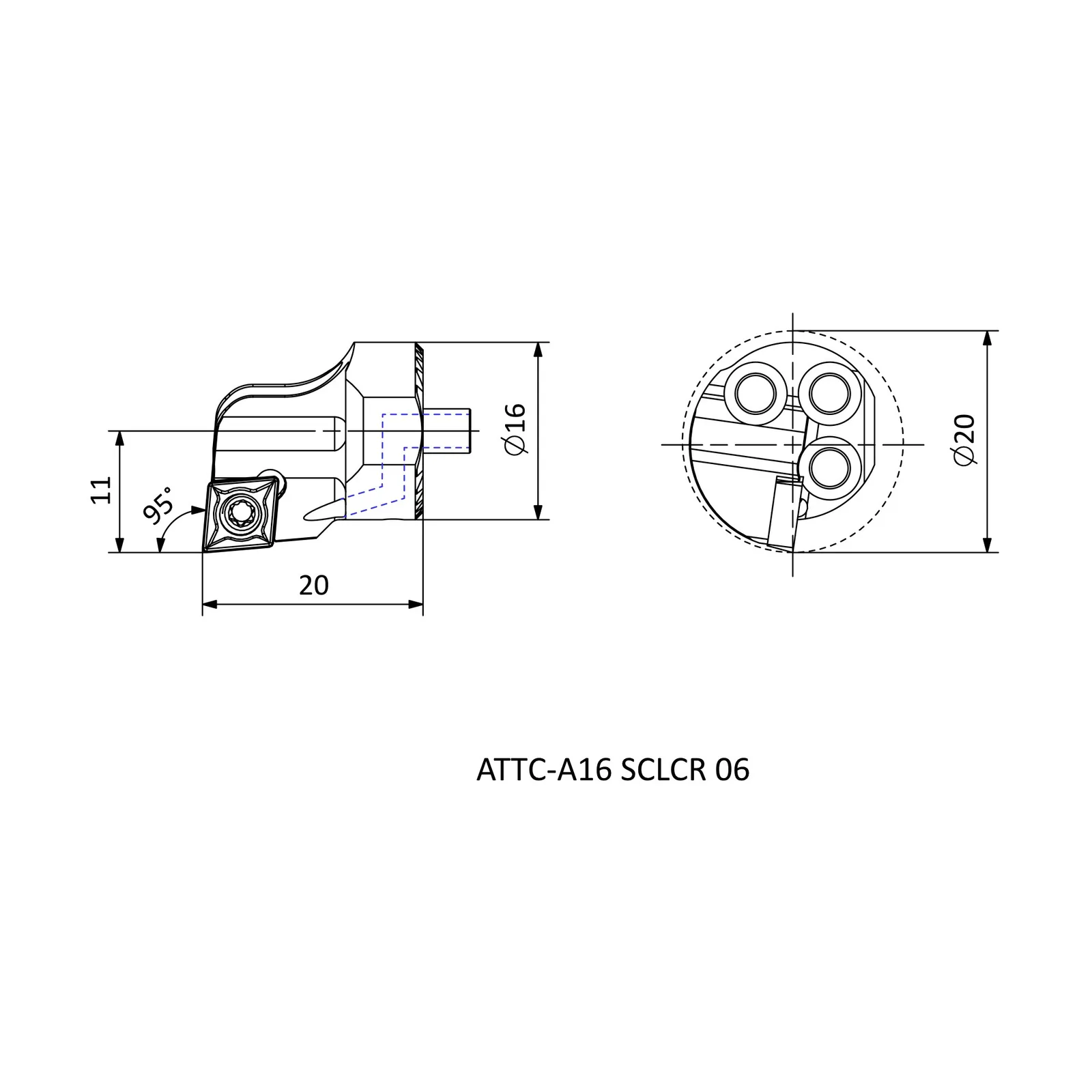

Specifications — ATTC-A16 SCLCR 06
| Insert Code | Insert designation | CC.T 0602.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 16 |
| LF | Functional length (mm) | 20 |
| WF | Functional width (mm) | 11 |
| D min | Minimum working diameter (mm) | 20 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
