Tool Holders / Antivibration Tools
ATTC-A25 SDUCL 11
ATTC-SDUCR/L series · see all 10 sizes
Insert compatibility
This size is built for the insert designation DC.T 11T3 (as listed in the catalogue data).

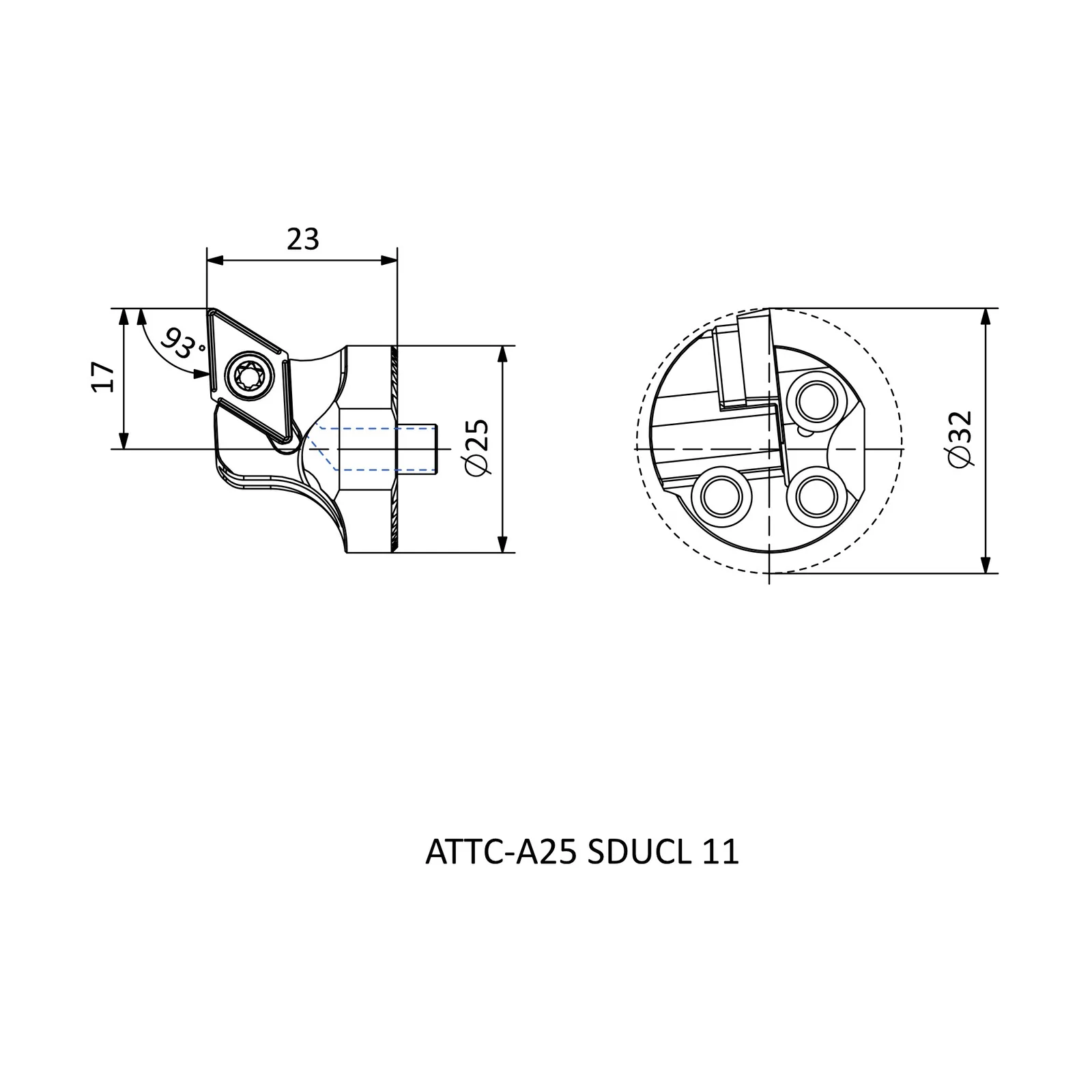

Specifications — ATTC-A25 SDUCL 11
| Insert Code | Insert designation | DC.T 11T3.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| DCON | Connection diameter (mm) | 25 |
| LF | Functional length (mm) | 23 |
| WF | Functional width (mm) | 17 |
| D min | Minimum working diameter (mm) | 32 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 10 sizes in ATTC-SDUCR/L
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Functional width (mm) |
|---|---|---|---|---|
| ATTC-A25 SDUCR 11 | R | 25 | 23 | 17 |
| ATTC-A20 SDUCL 11 | L | 20 | 20 | 13 |
| ATTC-A25 SDUCL 11 | L | 25 | 23 | 17 |
| ATTC-A16 SDUCR 07 | R | 16 | 20 | 11 |
| ATTC-A16 SDUCL 07 | L | 16 | 20 | 11 |
| ATTC-A40 SDUCL 11 | L | 40 | 32 | 27 |
| ATTC-A20 SDUCR 11 | R | 20 | 20 | 13 |
| ATTC-A32 SDUCL 11 | L | 32 | 32 | 22 |
| ATTC-A32 SDUCR 11 | R | 32 | 32 | 22 |
| ATTC-A40 SDUCR 11 | R | 40 | 32 | 27 |
