Tool Holders / Antivibration Tools
ATTC-A40 TCLNR 12
ATTC-TCLNR/L series · see all 6 sizes
Insert compatibility
This size is built for the insert designation CNM. 1204 (as listed in the catalogue data).

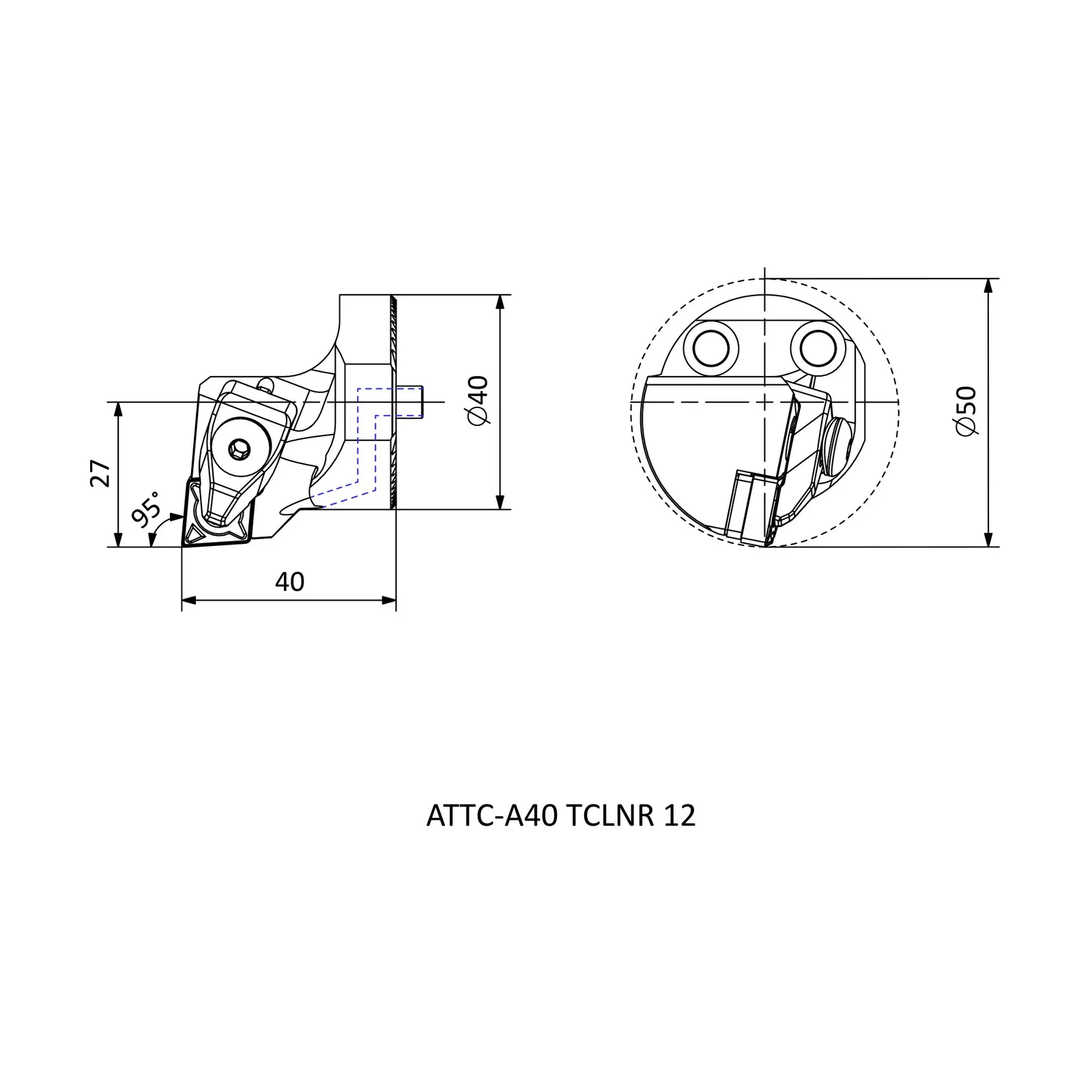

Specifications — ATTC-A40 TCLNR 12
| Insert Code | Insert designation | CNM. 1204.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 40 |
| LF | Functional length (mm) | 38 |
| WF | Functional width (mm) | 27 |
| D min | Minimum working diameter (mm) | 50 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 6 sizes in ATTC-TCLNR/L
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Functional width (mm) |
|---|---|---|---|---|
| ATTC-A40 TCLNR 16 | R | 40 | 40 | 32 |
| ATTC-A40 TCLNL 16 | L | 40 | 40 | 32 |
| ATTC-A32 TCLNL 12 | L | 32 | 32 | 22 |
| ATTC-A32 TCLNR 12 | R | 32 | 32 | 22 |
| ATTC-A40 TCLNL 12 | L | 40 | 38 | 27 |
| ATTC-A40 TCLNR 12 | R | 40 | 38 | 27 |
