Tool Holders / Atum Drill
ATUM 22XD2 KDR 07T2..
ATUM XD2 KDR series · see all 14 sizes
Insert compatibility
This size is built for the insert designation SPMT 07T208 (as listed in the catalogue data).

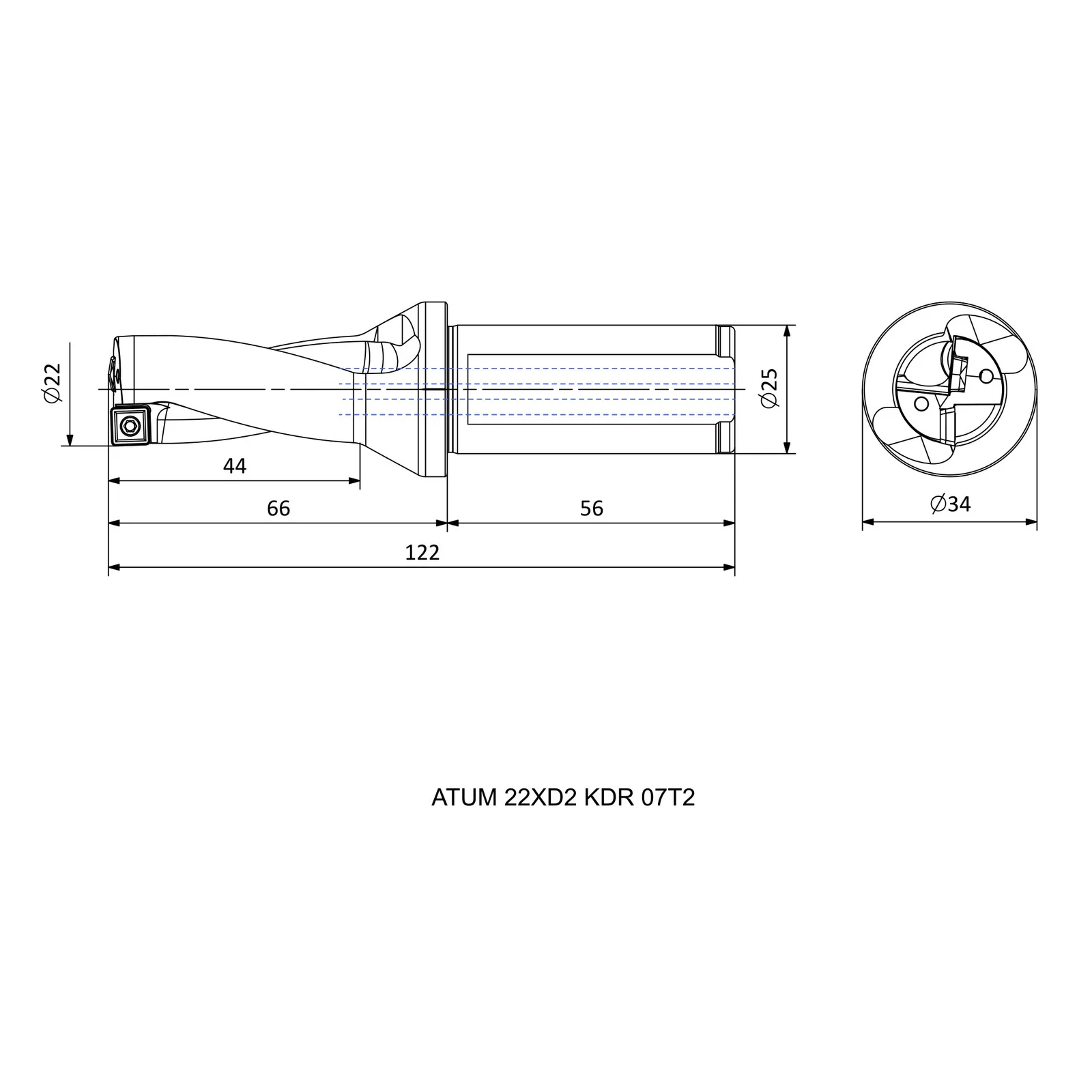

Specifications — ATUM 22XD2 KDR 07T2..
| Insert Code | Insert designation | SPMT 07T208 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 22 |
| DCON | Connection diameter (mm) | 25 |
| DCSFMS | Contact-face diameter, machine side (mm) | 34 |
| OAL | Overall length (mm) | 122 |
| LU | Usable length (mm) | 44 |
| LPR | Protruding / projection length (mm) | 66 |
| LS | Shank length (mm) | 56 |
| X max [mm] | Adjustment range, max (mm) | 0.3 |
| X min [mm] | Adjustment range, min (mm) | 22.6 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 14 sizes in ATUM XD2 KDR
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Contact-face diameter, machine side (mm) |
|---|---|---|---|---|
| ATUM 14XD2 KDR 0502.. | R | 14 | 20 | 25 |
| ATUM 18XD2 KDR 0602.. | R | 18 | 25 | 34 |
| ATUM 20XD2 KDR 07T2.. | R | 20 | 25 | 34 |
| ATUM 22XD2 KDR 07T2.. | R | 22 | 25 | 34 |
| ATUM 24XD2 KDR 0903.. | R | 24 | 25 | 34 |
| ATUM 25XD2 KDR 0903.. | R | 25 | 25 | 34 |
| ATUM 26XD2 KDR 0903.. | R | 26 | 25 | 34 |
| ATUM 28XD2 KDR 0903.. | R | 28 | 25 | 34 |
| ATUM 30XD2 KDR 11T3.. | R | 30 | 25 | 34 |
| ATUM 32XD2 KDR 11T3.. | R | 32 | 32 | 44 |
| ATUM 34XD2 KDR 11T3.. | R | 34 | 32 | 44 |
| ATUM 36XD2 KDR 1304.. | R | 36 | 32 | 44 |
| ATUM 37XD2 KDR 1304.. | R | 37 | 32 | 44 |
| ATUM 38XD2 KDR 1304.. | R | 38 | 32 | 44 |
