Tool Holders / Atum Drill

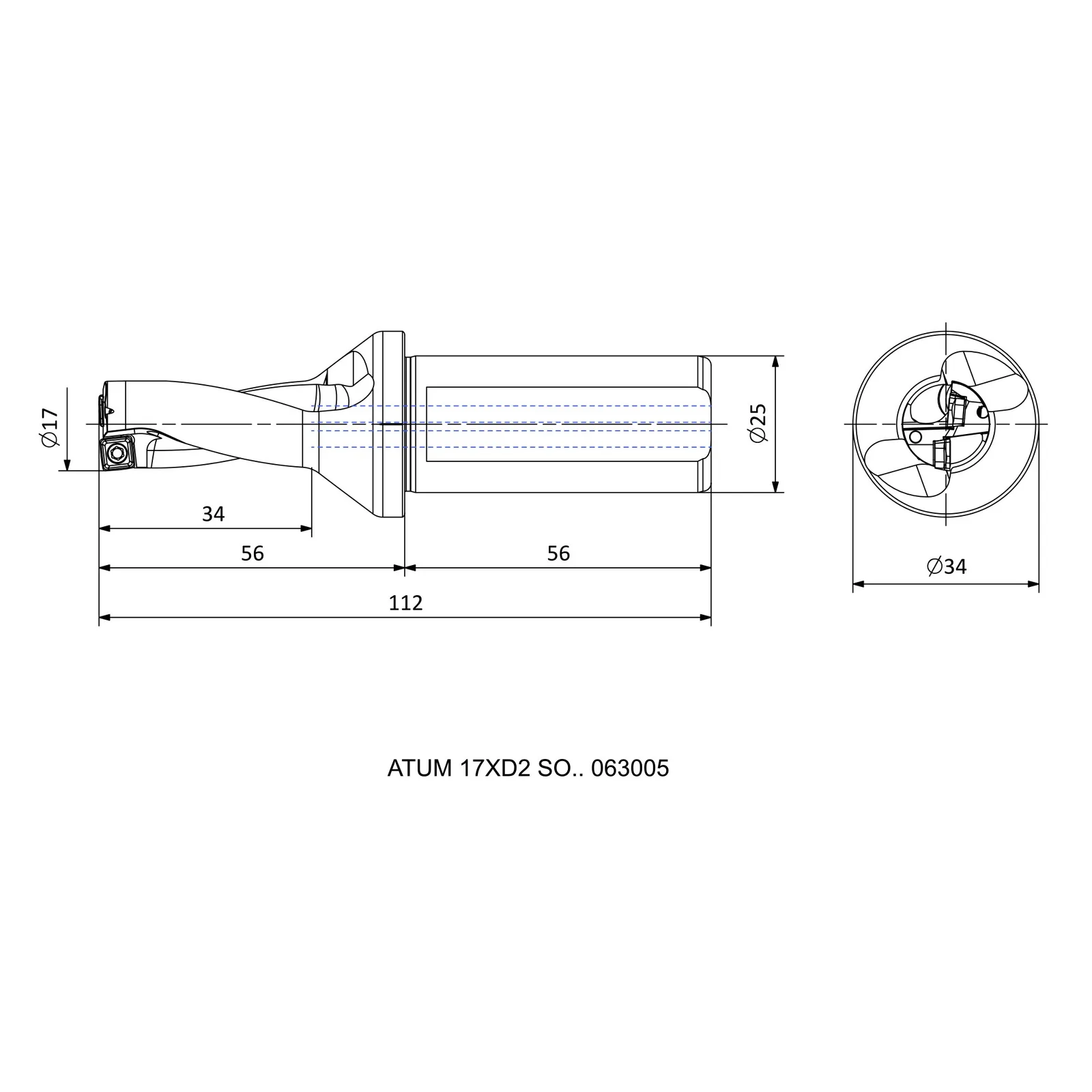

ATUM 17XD2 SO.. 063005
ATUM XD2 SO series · see all 17 sizes
Insert compatibility
This size is built for the insert designation SOMX 063005 (as listed in the catalogue data).
Specifications — ATUM 17XD2 SO.. 063005
| Insert Code | Insert designation | SOMX 063005 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 17 |
| DCON | Connection diameter (mm) | 25 |
| DCSFMS | Contact-face diameter, machine side (mm) | 34 |
| OAL | Overall length (mm) | 112 |
| LU | Usable length (mm) | 34 |
| LPR | Protruding / projection length (mm) | 56 |
| LS | Shank length (mm) | 56 |
| X max [mm] | Adjustment range, max (mm) | 0.5 |
| X min [mm] | Adjustment range, min (mm) | 18 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 17 sizes in ATUM XD2 SO
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Contact-face diameter, machine side (mm) |
|---|---|---|---|---|
| ATUM 55XD2 SO.. 166508 | R | 55 | 40 | 54 |
| ATUM 48XD2 SO.. 166508 | R | 48 | 40 | 54 |
| ATUM 14XD2 SO.. 052704 | R | 14 | 20 | 25 |
| ATUM 15XD2 SO.. 052704 | R | 15 | 20 | 25 |
| ATUM 16XD2 SO.. 052704 | R | 16 | 25 | 34 |
| ATUM 17XD2 SO.. 063005 | R | 17 | 25 | 34 |
| ATUM 18XD2 SO.. 063005 | R | 18 | 25 | 34 |
| ATUM 19XD2 SO.. 063005 | R | 19 | 25 | 34 |
| ATUM 20XD2 SO.. 073505 | R | 20 | 25 | 34 |
| ATUM 21XD2 SO.. 073505 | R | 21 | 25 | 34 |
| ATUM 22XD2 SO.. 073505 | R | 22 | 25 | 34 |
| ATUM 23XD2 SO.. 084005 | R | 23 | 25 | 34 |
| ATUM 24XD2 SO.. 084005 | R | 24 | 25 | 34 |
| ATUM 25XD2 SO.. 084005 | R | 25 | 25 | 34 |
| ATUM 26XD2 SO.. 084005 | R | 26 | 25 | 34 |
| ATUM 28XD2 SO.. 094506 | R | 28 | 25 | 34 |
| ATUM 30XD2 SO.. 094506 | R | 30 | 32 | 44 |
