ATUM 29XD2 WCM. 050308

Name: ATUM 29XD2 WCM. 050308
Brand: Axior
SKU: ATUM 29XD2 WCM. 050308

ATUM XD2 WCM series · see all 28 sizes

This size is built for the insert designation WCM. 050308 (as listed in the catalogue data).

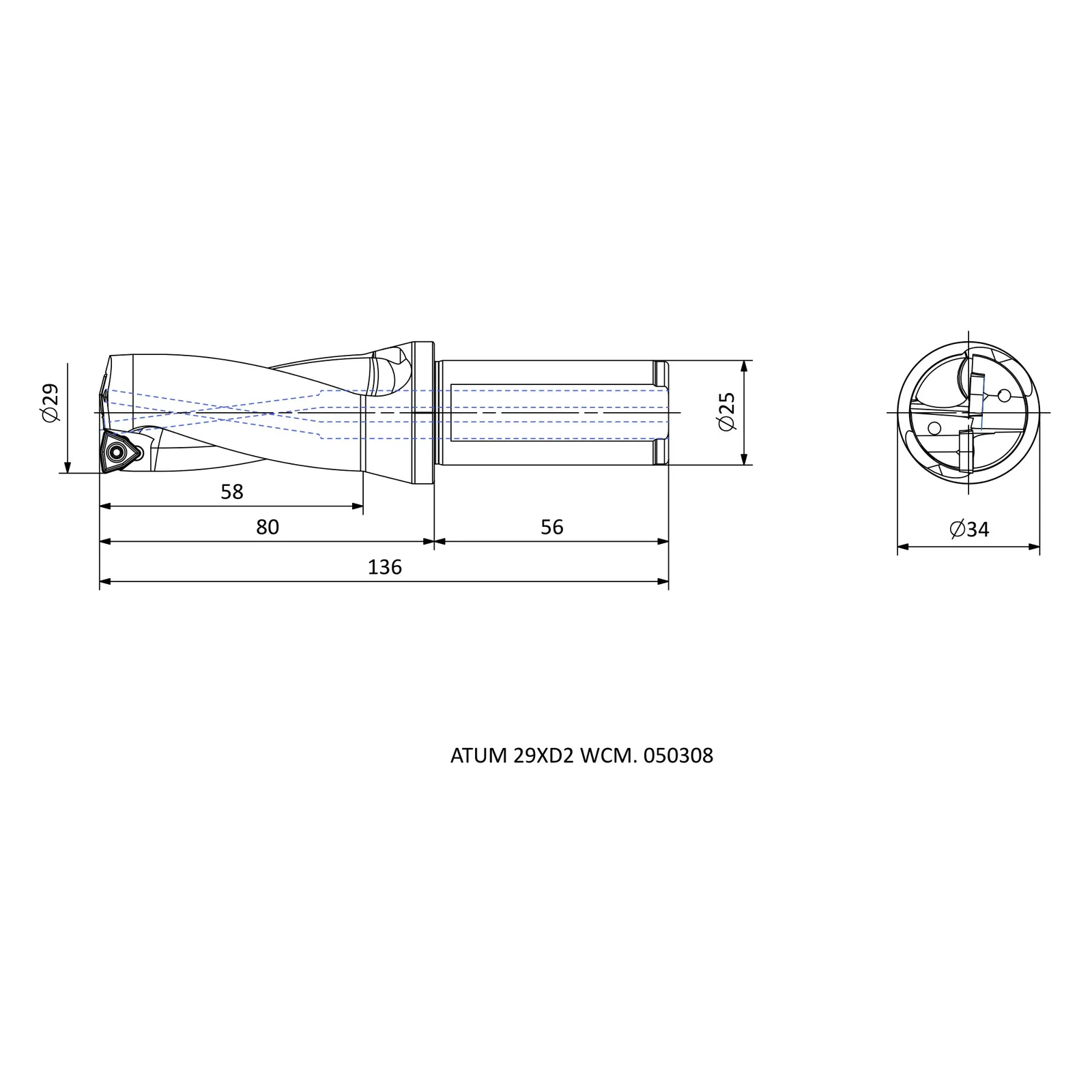

Specifications — ATUM 29XD2 WCM. 050308

Insert Code	Insert designation	WCM. 050308
Product Direction	Cutting direction (hand)	R
DC	Cutting diameter (mm)	29
DCON	Connection diameter (mm)	25
DCSFMS	Contact-face diameter, machine side (mm)	34
OAL	Overall length (mm)	136
LU	Usable length (mm)	58
LPR	Protruding / projection length (mm)	80
LS	Shank length (mm)	56
X max [mm]	Adjustment range, max (mm)	1.65
X min [mm]	Adjustment range, min (mm)	32.3

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

Product code	Cutting direction (hand)	Cutting diameter (mm)	Connection diameter (mm)	Contact-face diameter, machine side (mm)
ATUM 16XD2 WCM. 030208	R	16	25	34
ATUM 16.5XD2 WCM. 030208	R	16.5	25	34
ATUM 17XD2 WCM. 030208	R	17	25	34
ATUM 17.5XD2 WCM 030208	R	17.5	25	34
ATUM 18XD2 WCM. 030208	R	18	25	34
ATUM 18.5XD2 WCM. 030208	R	18.5	25	34
ATUM 19XD2 WCM. 030208	R	19	25	34
ATUM 19.5XD2 WCM. 030208	R	19.5	25	34
ATUM 20XD2 WCM. 040208	R	20	25	34
ATUM 20.5XD2 WCM. 040208	R	20.5	25	34
ATUM 21XD2 WCM. 040208	R	21	25	34
ATUM 21.5XD2 WCM. 040208	R	21.5	25	34
ATUM 22XD2 WCM. 040208	R	22	25	34
ATUM 22.5XD2 WCM. 040208	R	22.5	25	34
ATUM 23XD2 WCM. 040208	R	23	25	34
ATUM 23.5XD2 WCM. 040208	R	23.5	25	34
ATUM 24XD2 WCM. 050308	R	24	25	34
ATUM 24.5XD2 WCM. 050308	R	24.5	25	34
ATUM 25XD2 WCM. 050308	R	25	25	34
ATUM 25.5XD2 WCM. 050308	R	25.5	25	34
ATUM 26XD2 WCM. 050308	R	26	25	34
ATUM 26.5XD2 WCM. 050308	R	26.5	25	34
ATUM 27XD2 WCM. 050308	R	27	25	34
ATUM 27.5XD2 WCM. 050308	R	27.5	25	34
ATUM 28XD2 WCM. 050308	R	28	25	34
ATUM 28.5XD2 WCM. 050308	R	28.5	25	34
ATUM 29XD2 WCM. 050308	R	29	25	34
ATUM 29.5XD2 WCM. 050308	R	29.5	25	34
