Tool Holders / Atum Drill
ATUM 43XD3 SPGT 140512
ATUM XD3 SPGT1 series · see all 13 sizes
Insert compatibility
This size is built for the insert designation SPGT 140512 (as listed in the catalogue data).

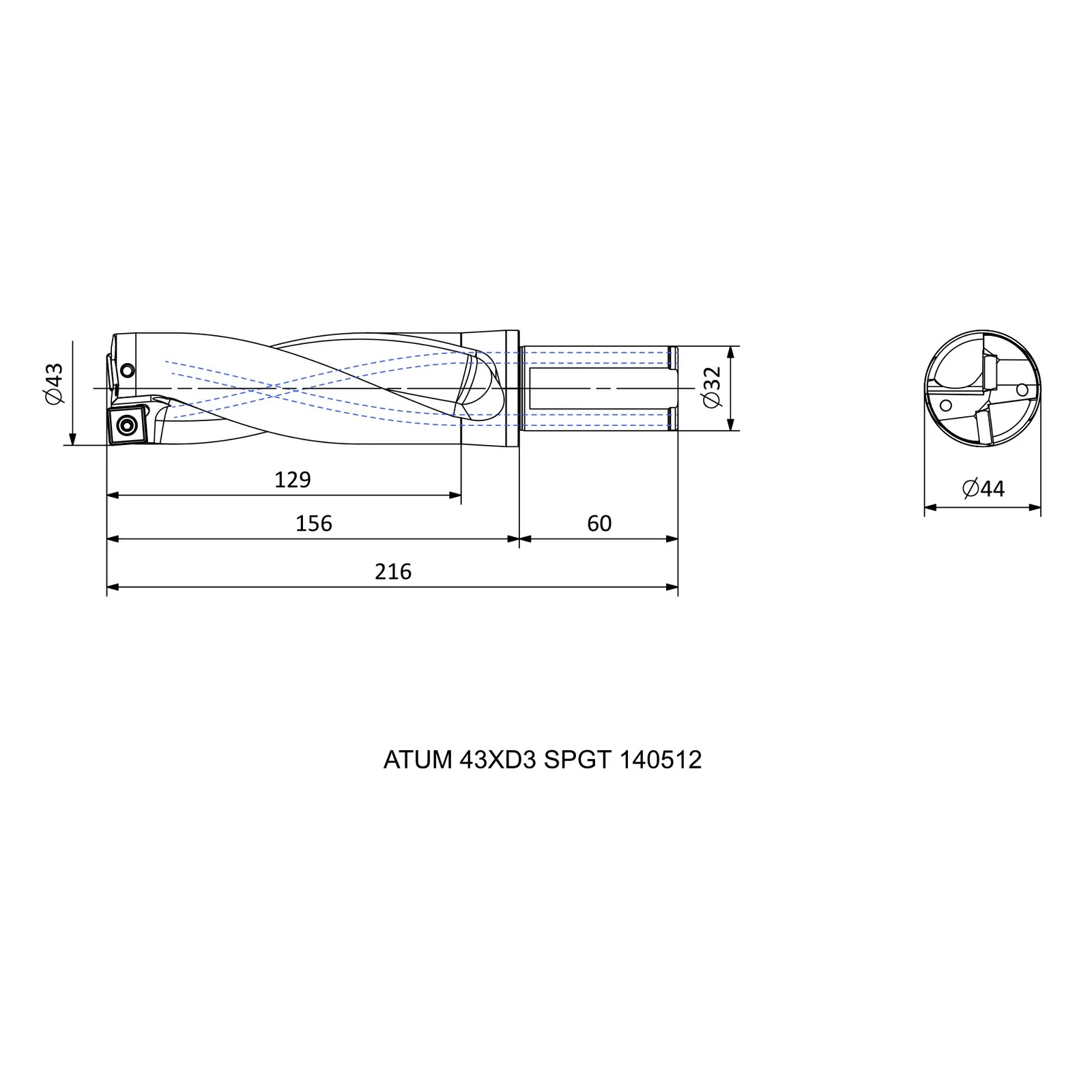

Specifications — ATUM 43XD3 SPGT 140512
| Insert Code | Insert designation | SPGT 140512 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 43 |
| DCON | Connection diameter (mm) | 32 |
| DCSFMS | Contact-face diameter, machine side (mm) | 44 |
| OAL | Overall length (mm) | 216 |
| LU | Usable length (mm) | 129 |
| LPR | Protruding / projection length (mm) | 156 |
| LS | Shank length (mm) | 60 |
| X max [mm] | Adjustment range, max (mm) | 1 |
| X min [mm] | Adjustment range, min (mm) | 45 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 13 sizes in ATUM XD3 SPGT1
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Contact-face diameter, machine side (mm) |
|---|---|---|---|---|
| ATUM 34XD3 SPGT 110408 | R | 34 | 32 | 44 |
| ATUM 35XD3 SPGT 110408 | R | 35 | 32 | 44 |
| ATUM 36XD3 SPGT 110408 | R | 36 | 32 | 44 |
| ATUM 36.5XD3 SPGT 110408 | R | 36.5 | 32 | 44 |
| ATUM 37XD3 SPGT 110408 | R | 37 | 32 | 44 |
| ATUM 38XD3 SPGT 110408 | R | 38 | 32 | 44 |
| ATUM 39XD3 SPGT 110408 | R | 39 | 32 | 44 |
| ATUM 40XD3 SPGT 110408 | R | 40 | 32 | 44 |
| ATUM 42XD3 SPGT 140512 | R | 42 | 32 | 44 |
| ATUM 43XD3 SPGT 140512 | R | 43 | 32 | 44 |
| ATUM 44XD3 SPGT 140512 | R | 44 | 32 | 44 |
| ATUM 49XD3 SPGT 140512 | R | 49 | 40 | 54 |
| ATUM 50XD3 SPGT 140512 | R | 50 | 40 | 54 |
