Tool Holders / Atum Drill
ATUM 20XD4 SO.. 073505
ATUM XD4 SO series · see all 15 sizes
Insert compatibility
This size is built for the insert designation SOMX 073505 (as listed in the catalogue data).

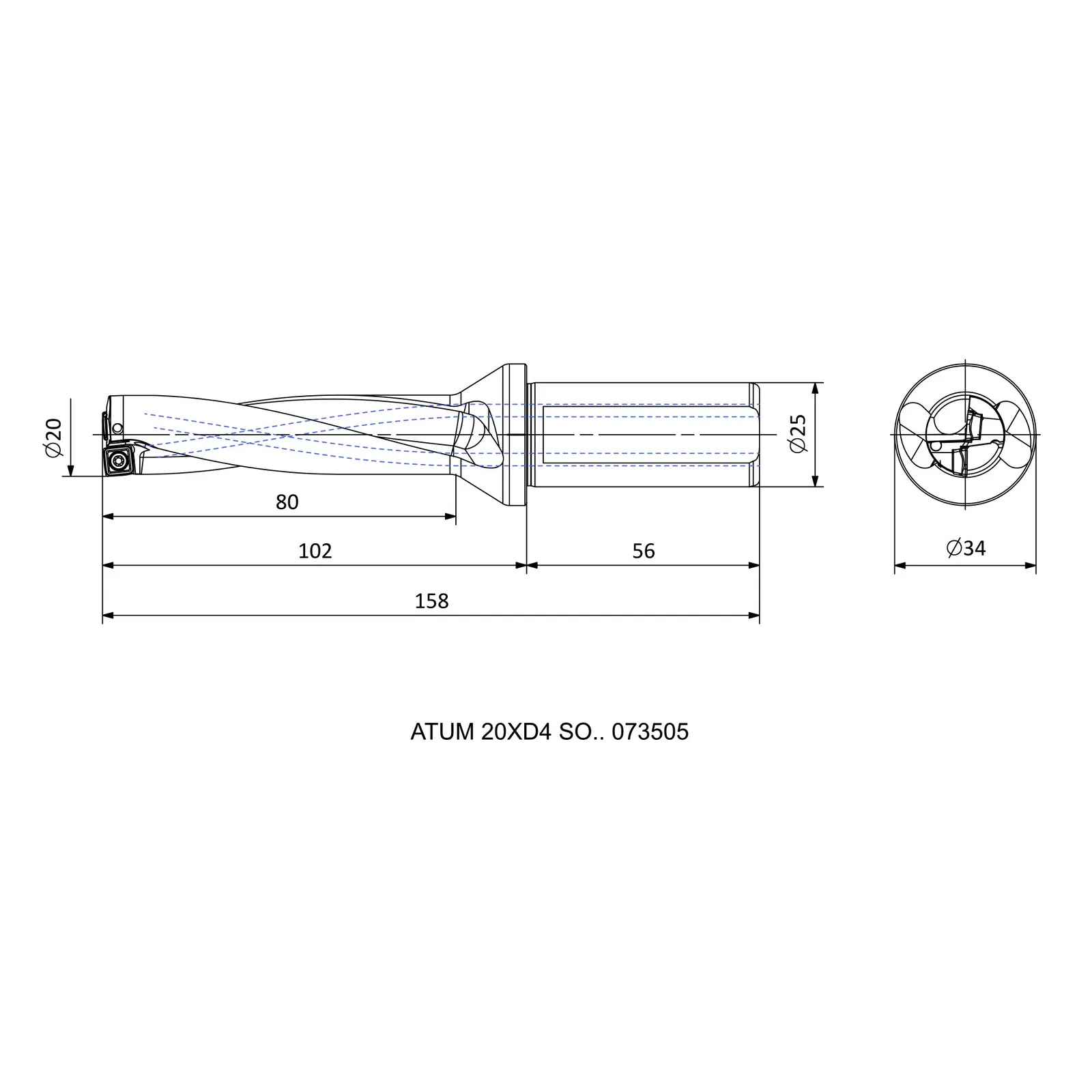

Specifications — ATUM 20XD4 SO.. 073505
| Insert Code | Insert designation | SOMX 073505 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 20 |
| DCON | Connection diameter (mm) | 25 |
| DCSFMS | Contact-face diameter, machine side (mm) | 34 |
| OAL | Overall length (mm) | 158 |
| LU | Usable length (mm) | 80 |
| LPR | Protruding / projection length (mm) | 102 |
| LS | Shank length (mm) | 56 |
| X max [mm] | Adjustment range, max (mm) | 0.6 |
| X min [mm] | Adjustment range, min (mm) | 21.2 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 15 sizes in ATUM XD4 SO
