Tool Holders / Atum Drill
ATUM 24XD4 SO.. 070305
ATUM XD4 SO series · see all 22 sizes
Insert compatibility
This size is built for the insert designation SO.. 070305 (as listed in the catalogue data).

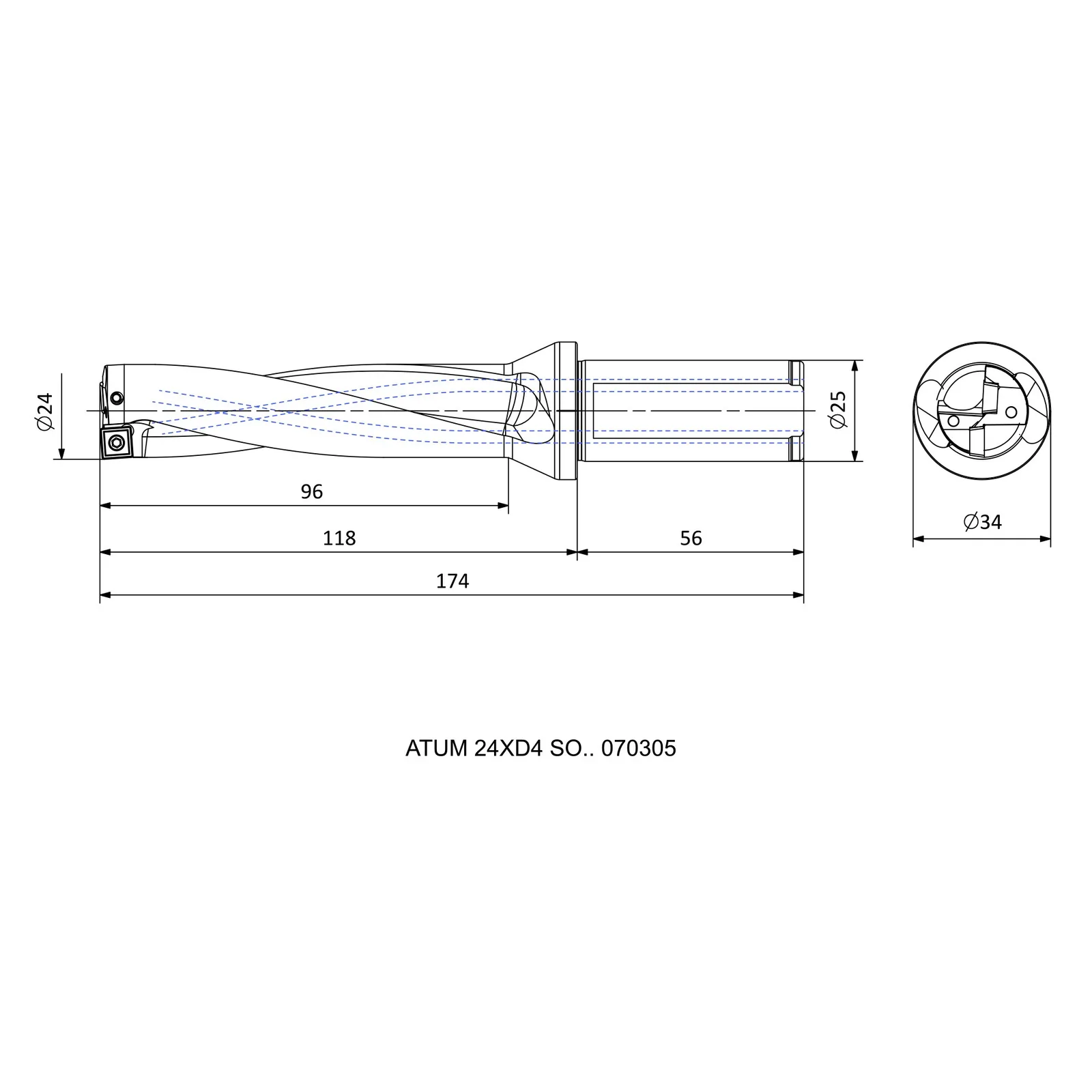

Specifications — ATUM 24XD4 SO.. 070305
| Insert Code | Insert designation | SO.. 070305 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 24 |
| DCON | Connection diameter (mm) | 25 |
| DCSFMS | Contact-face diameter, machine side (mm) | 34 |
| OAL | Overall length (mm) | 174 |
| LU | Usable length (mm) | 96 |
| LPR | Protruding / projection length (mm) | 118 |
| LS | Shank length (mm) | 56 |
| X max [mm] | Adjustment range, max (mm) | 1 |
| X min [mm] | Adjustment range, min (mm) | 26 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 22 sizes in ATUM XD4 SO
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Contact-face diameter, machine side (mm) |
|---|---|---|---|---|
| ATUM 14XD4 SO.. 050204 | R | 14 | 20 | 25 |
| ATUM 14.5XD4 SO.. 050204 | R | 14.5 | 20 | 25 |
| ATUM 15XD4 SO.. 050204 | R | 15 | 20 | 25 |
| ATUM 15.5XD4 SO.. 050204 | R | 15.5 | 20 | 25 |
| ATUM 17XD4 SO.. 050204 | R | 17 | 25 | 34 |
| ATUM 19XD4 SO.. 060304 | R | 19 | 25 | 34 |
| ATUM 19.5XD4 SO.. 060304 | R | 19.5 | 25 | 34 |
| ATUM 20XD4 SO.. 060304 | R | 20 | 25 | 34 |
| ATUM 21XD4 SO.. 070305 | R | 21 | 25 | 34 |
| ATUM 22XD4 SO.. 070305 | R | 22 | 25 | 34 |
| ATUM 22.5XD4 SO.. 070305 | R | 22.5 | 25 | 34 |
| ATUM 23XD4 SO.. 070305 | R | 23 | 25 | 34 |
| ATUM 24XD4 SO.. 070305 | R | 24 | 25 | 34 |
| ATUM 25XD4 SO.. 09T306 | R | 25 | 25 | 34 |
| ATUM 27XD4 SO.. 09T306 | R | 27 | 25 | 34 |
| ATUM 28XD4 SO.. 09T306 | R | 28 | 25 | 34 |
| ATUM 29XD4 SO.. 09T306 | R | 29 | 25 | 34 |
| ATUM 30XD4 SO.. 09T306 | R | 30 | 32 | 44 |
| ATUM 31XD4 SO.. 09T306 | R | 31 | 32 | 44 |
| ATUM 33XD4 SO.. 09T306 | R | 33 | 32 | 44 |
| ATUM 34XD4 SO.. 09T306 | R | 34 | 32 | 44 |
| ATUM 35XD4 SO.. 120408 | R | 35 | 32 | 44 |
