ATUM 27.5XD4 WCM. 050308

Name: ATUM 27.5XD4 WCM. 050308
Brand: Axior
SKU: ATUM 27.5XD4 WCM. 050308

ATUM XD4 WCM series · see all 28 sizes

This size is built for the insert designation WCM. 050308 (as listed in the catalogue data).

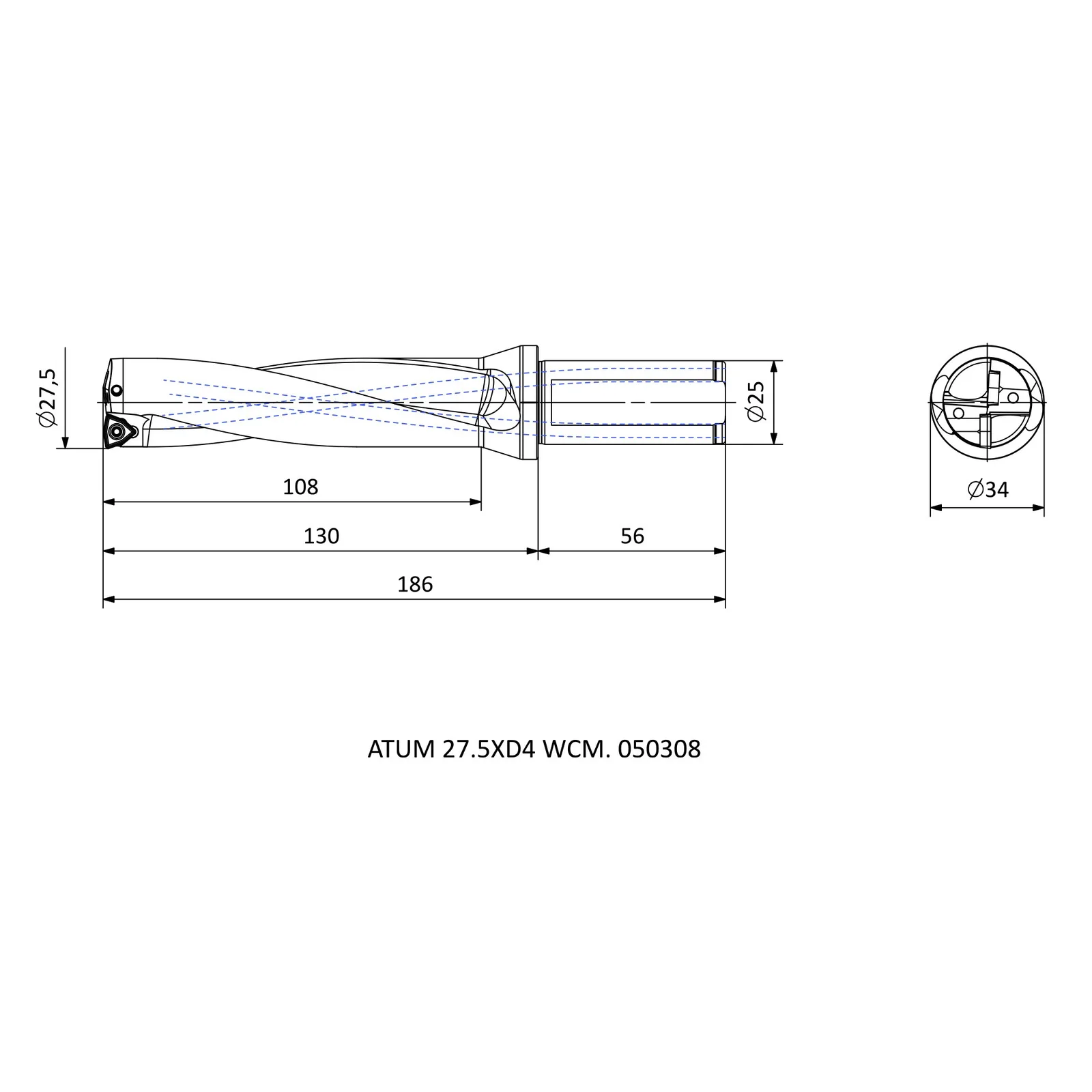

Specifications — ATUM 27.5XD4 WCM. 050308

Insert Code	Insert designation	WCM. 050308
Product Direction	Cutting direction (hand)	R
DC	Cutting diameter (mm)	27.5
DCON	Connection diameter (mm)	25
DCSFMS	Contact-face diameter, machine side (mm)	34
OAL	Overall length (mm)	186
LU	Usable length (mm)	108
LPR	Protruding / projection length (mm)	130
LS	Shank length (mm)	56
X max [mm]	Adjustment range, max (mm)	1.45
X min [mm]	Adjustment range, min (mm)	30.4

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

Product code	Cutting direction (hand)	Cutting diameter (mm)	Connection diameter (mm)	Contact-face diameter, machine side (mm)
ATUM 17.5XD4 WCM. 030208	R	17.5	25	34
ATUM 18.5XD4 WCM. 030208	R	18.5	25	34
ATUM 18XD4 WCM. 030208	R	18	25	34
ATUM 19.5XD4 WCM. 030208	R	19.5	25	34
ATUM 20.5XD4 WCM. 040208	R	20.5	25	34
ATUM 22XD4 WCM. 040208	R	22	25	34
ATUM 29.5XD4 WCM. 050308	R	29.5	25	34
ATUM 20XD4 WCM. 040208	R	20	25	34
ATUM 17XD4 WCM. 030208	R	17	25	34
ATUM 19XD4 WCM. 030208	R	19	25	34
ATUM 24.5XD4 WCM. 050308	R	24.5	25	34
ATUM 28XD4 WCM. 050308	R	28	25	34
ATUM 22.5XD4 WCM. 040208	R	22.5	25	34
ATUM 26.5XD4 WCM. 050308	R	26.5	25	34
ATUM 23.5XD4 WCM. 040208	R	23.5	25	34
ATUM 24XD4 WCM. 050308	R	24	25	34
ATUM 16.5XD4 WCM. 030208	R	16.5	25	34
ATUM 23XD4 WCM. 040208	R	23	25	34
ATUM 25XD4 WCM. 050308	R	25	25	34
ATUM 16XD4 WCM. 030208	R	16	25	34
ATUM 28.5XD4 WCM. 050308	R	28.5	25	34
ATUM 29XD4 WCM. 050308	R	29	25	34
ATUM 21.5XD4 WCM. 040208	R	21.5	25	34
ATUM 21XD4 WCM. 040208	R	21	25	34
ATUM 26XD4 WCM. 050308	R	26	25	34
ATUM 25.5XD4 WCM. 050308	R	25.5	25	34
ATUM 27.5XD4 WCM. 050308	R	27.5	25	34
ATUM 27XD4 WCM. 050308	R	27	25	34
