Tool Holders / Atum Drill

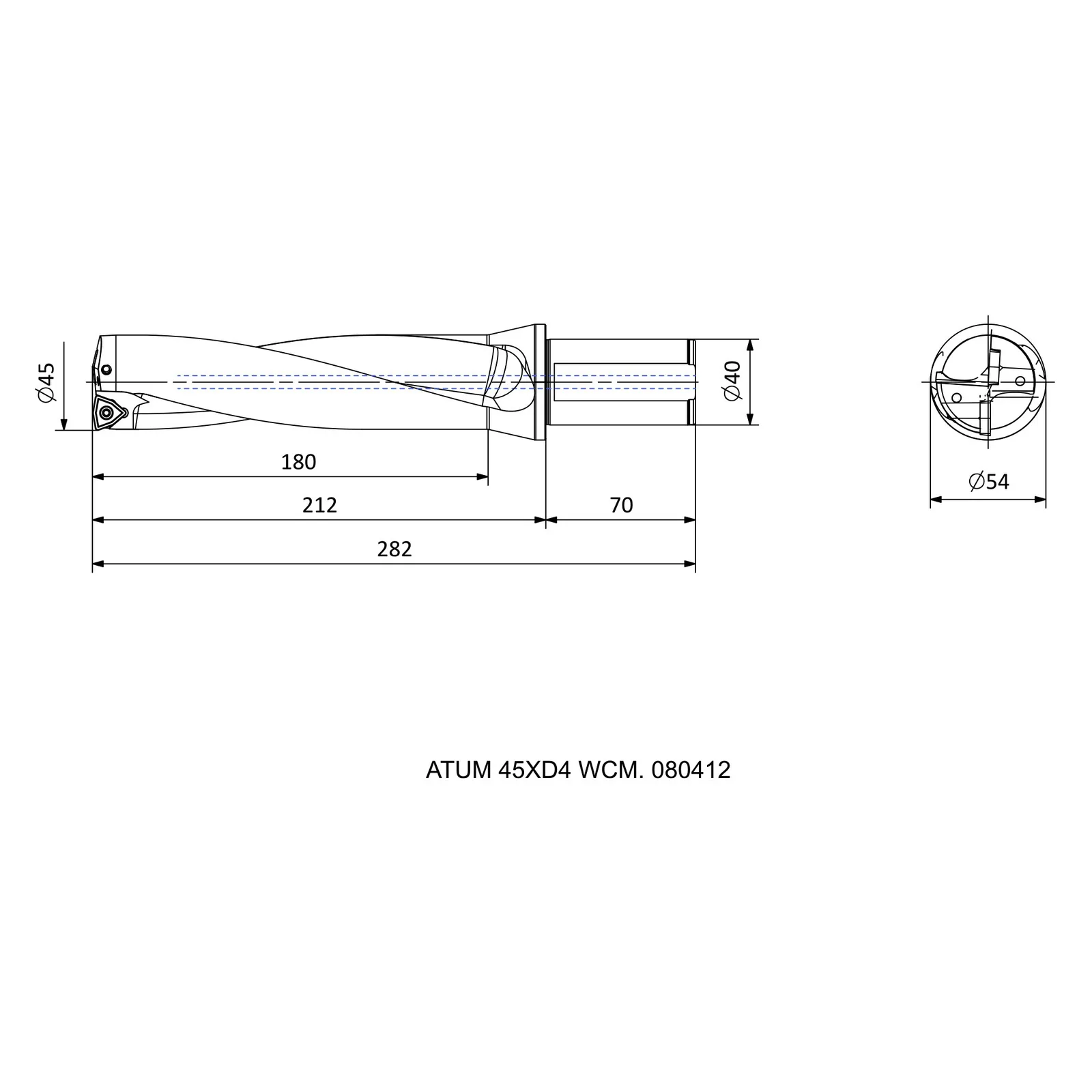

ATUM 45XD4 WCM. 080412
ATUM XD4 WCM1 series · see all 23 sizes
Insert compatibility
This size is built for the insert designation WCM. 080412 (as listed in the catalogue data).
Specifications — ATUM 45XD4 WCM. 080412
| Insert Code | Insert designation | WCM. 080412 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 45 |
| DCON | Connection diameter (mm) | 40 |
| DCSFMS | Contact-face diameter, machine side (mm) | 54 |
| OAL | Overall length (mm) | 282 |
| LU | Usable length (mm) | 180 |
| LPR | Protruding / projection length (mm) | 212 |
| LS | Shank length (mm) | 70 |
| X max [mm] | Adjustment range, max (mm) | 3.3 |
| X min [mm] | Adjustment range, min (mm) | 51.6 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 23 sizes in ATUM XD4 WCM1
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Contact-face diameter, machine side (mm) |
|---|---|---|---|---|
| ATUM 30XD4 WCM. 06T308 | R | 30 | 32 | 44 |
| ATUM 31XD4 WCM. 06T308 | R | 31 | 32 | 44 |
| ATUM 32XD4 WCM. 06T308 | R | 32 | 32 | 44 |
| ATUM 33XD4 WCM. 06T308 | R | 33 | 32 | 44 |
| ATUM 33.5XD4 WCM. 06T308 | R | 33.5 | 32 | 44 |
| ATUM 34XD4 WCM. 06T308 | R | 34 | 32 | 44 |
| ATUM 35XD4 WCM. 06T308 | R | 35 | 32 | 44 |
| ATUM 36XD4 WCM. 06T308 | R | 36 | 32 | 44 |
| ATUM 37XD4 WCM. 06T308 | R | 37 | 32 | 44 |
| ATUM 38XD4 WCM. 06T308 | R | 38 | 32 | 44 |
| ATUM 38.5XD4 WCM. 06T308 | R | 38.5 | 32 | 44 |
| ATUM 39XD4 WCM. 06T308 | R | 39 | 32 | 44 |
| ATUM 40XD4 WCM. 06T308 | R | 40 | 32 | 44 |
| ATUM 41XD4 WCM. 06T308 | R | 41 | 32 | 44 |
| ATUM 42XD4 WCM. 06T308 | R | 42 | 32 | 44 |
| ATUM 43XD4 WCM. 06T308 | R | 43 | 32 | 44 |
| ATUM 44XD4 WCM. 06T308 | R | 44 | 32 | 44 |
| ATUM 45XD4 WCM. 080412 | R | 45 | 40 | 54 |
| ATUM 46XD4 WCM. 080412 | R | 46 | 40 | 54 |
| ATUM 47XD4 WCM. 080412 | R | 47 | 40 | 54 |
| ATUM 48XD4 WCM. 080412 | R | 48 | 40 | 54 |
| ATUM 49XD4 WCM. 080412 | R | 49 | 40 | 54 |
| ATUM 50XD4 WCM. 080412 | R | 50 | 40 | 54 |
