Tool Holders / Atum Drill
ATUM 36XD5 SOMT 11T308
ATUM XD5 SOMT series · see all 25 sizes
Insert compatibility
This size is built for the insert designation SOMT 11T308 (as listed in the catalogue data).

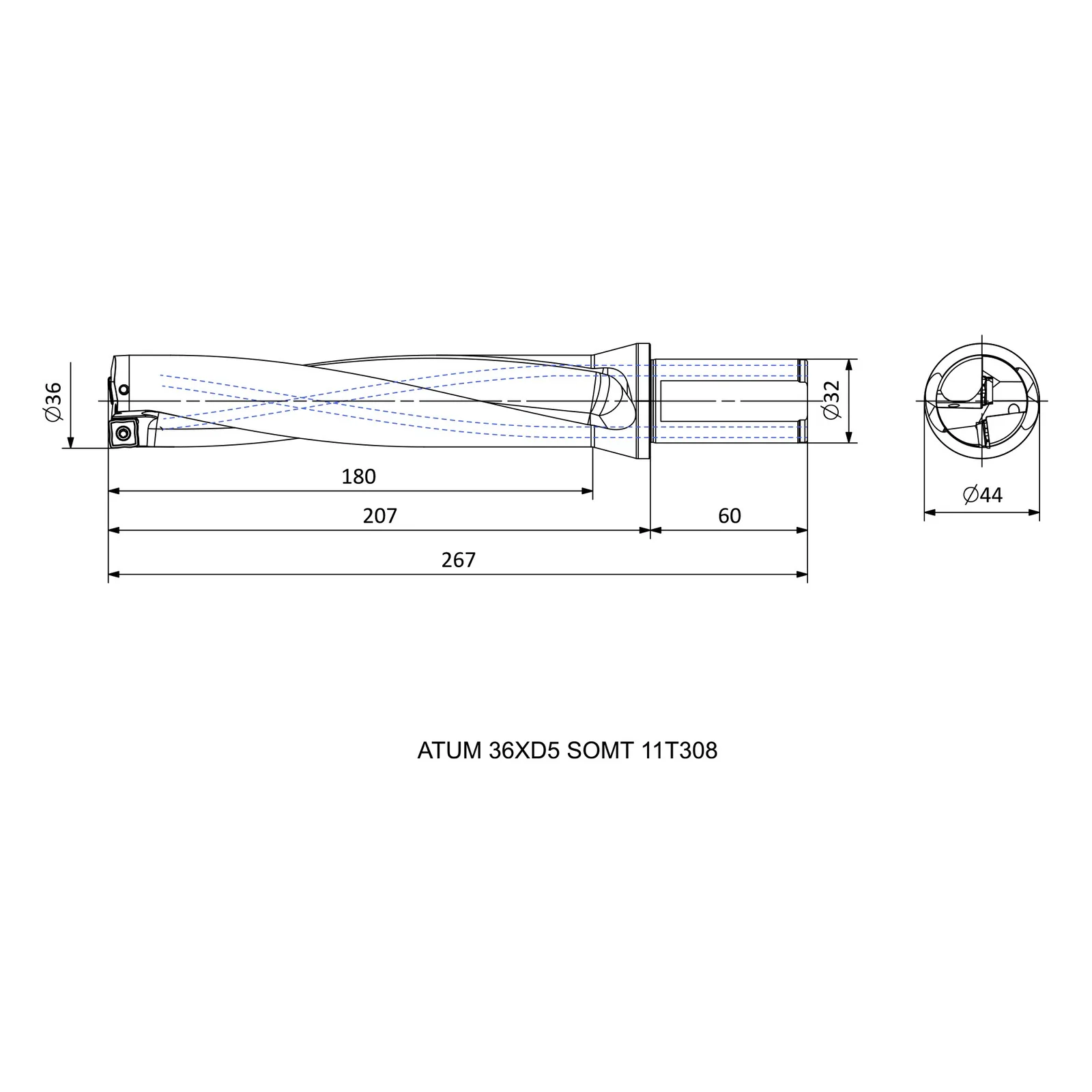

Specifications — ATUM 36XD5 SOMT 11T308
| Insert Code | Insert designation | SOMT 11T308 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 36 |
| DCON | Connection diameter (mm) | 32 |
| DCSFMS | Contact-face diameter, machine side (mm) | 44 |
| OAL | Overall length (mm) | 267 |
| LU | Usable length (mm) | 180 |
| LPR | Protruding / projection length (mm) | 207 |
| LS | Shank length (mm) | 60 |
| X max [mm] | Adjustment range, max (mm) | 0.4 |
| X min [mm] | Adjustment range, min (mm) | 36.8 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 25 sizes in ATUM XD5 SOMT
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Contact-face diameter, machine side (mm) |
|---|---|---|---|---|
| ATUM 14XD5 SOMT 050204 | R | 14 | 20 | 25 |
| ATUM 15XD5 SOMT 050204 | R | 15 | 20 | 25 |
| ATUM 15.5XD5 SOMT 050204 | R | 15.5 | 20 | 25 |
| ATUM 16XD5 SOMT 050204 | R | 16 | 25 | 34 |
| ATUM 16.5XD5 SOMT 060204 | R | 16.5 | 25 | 34 |
| ATUM 17.5XD5 SOMT 060204 | R | 17.5 | 25 | 34 |
| ATUM 18XD5 SOMT 060204 | R | 18 | 25 | 34 |
| ATUM 18.5XD5 SOMT 060204 | R | 18.5 | 25 | 34 |
| ATUM 19XD5 SOMT 060204 | R | 19 | 25 | 34 |
| ATUM 19.5XD5 SOMT 070306 | R | 19.5 | 25 | 34 |
| ATUM 20XD5 SOMT 070306 | R | 20 | 25 | 34 |
| ATUM 21XD5 SOMT 070306 | R | 21 | 25 | 34 |
| ATUM 22XD5 SOMT 070306 | R | 22 | 25 | 34 |
| ATUM 23XD5 SOMT 08T306 | R | 23 | 25 | 34 |
| ATUM 24XD5 SOMT 08T306 | R | 24 | 25 | 34 |
| ATUM 25XD5 SOMT 08T306 | R | 25 | 25 | 34 |
| ATUM 26XD5 SOMT 08T306 | R | 26 | 25 | 34 |
| ATUM 27XD5 SOMT 09T308 | R | 27 | 25 | 34 |
| ATUM 28XD5 SOMT 09T308 | R | 28 | 25 | 34 |
| ATUM 29XD5 SOMT 09T308 | R | 29 | 25 | 34 |
| ATUM 30XD5 SOMT 09T308 | R | 30 | 32 | 44 |
| ATUM 33XD5 SOMT 11T308 | R | 33 | 32 | 44 |
| ATUM 34XD5 SOMT 11T308 | R | 34 | 32 | 44 |
| ATUM 35XD5 SOMT 11T308 | R | 35 | 32 | 44 |
| ATUM 36XD5 SOMT 11T308 | R | 36 | 32 | 44 |
