Tool Holders / Ball Nose Mills
APMR-BNM20-D20-C20-L160
APMR-BNM series · see all 9 sizes
Insert compatibility
This size is built for the insert designation BNM 200 (as listed in the catalogue data).

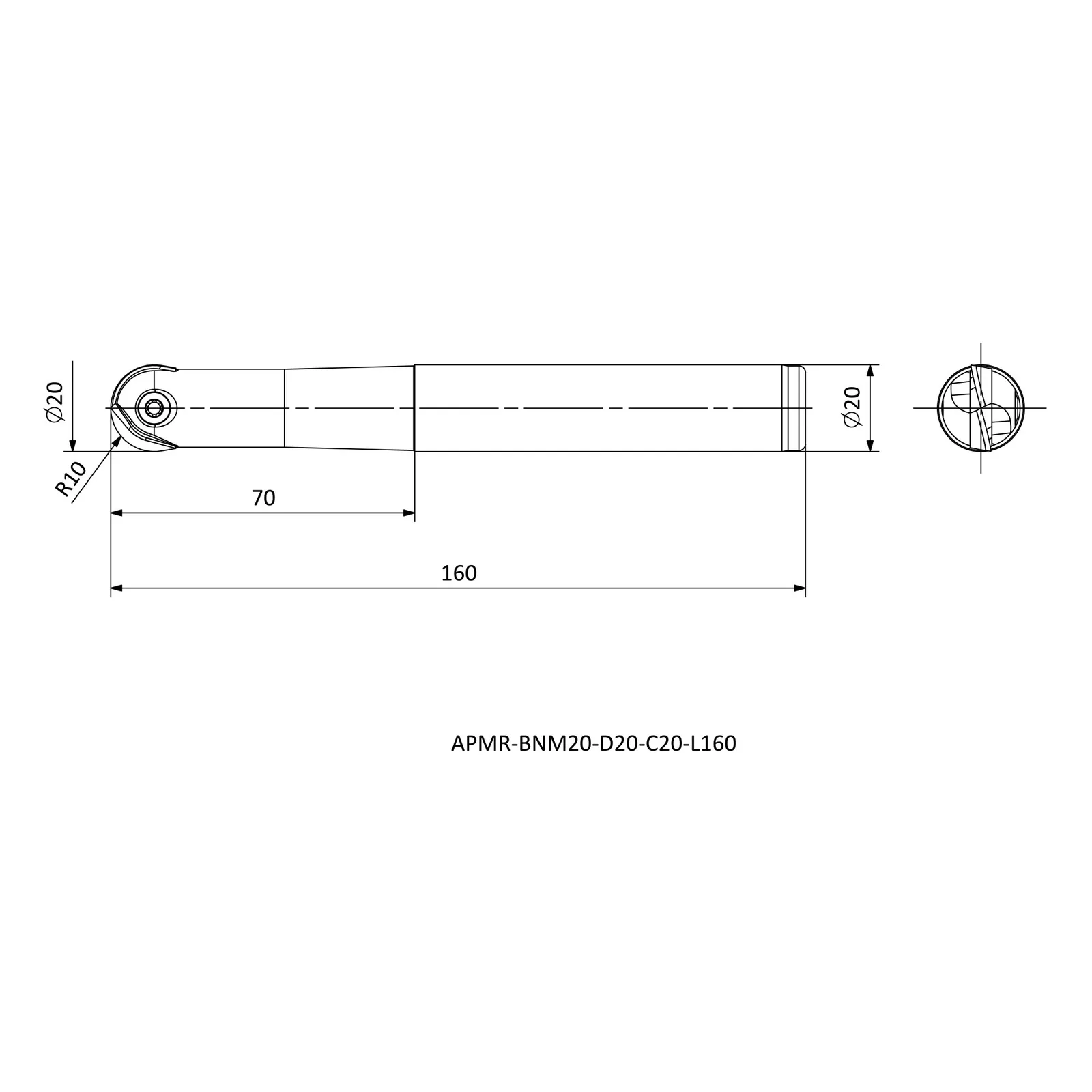

Specifications — APMR-BNM20-D20-C20-L160
| Insert Code | Insert designation | BNM 200-S |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 20 |
| LF | Functional length (mm) | 160 |
| DCX | Maximum diameter (mm) | 20 |
| LH | Head length (mm) | 70 |
| RE | Corner radius (mm) | 10 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 9 sizes in APMR-BNM
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Maximum diameter (mm) |
|---|---|---|---|---|
| APMR-BNM12-D12-C12-L130 | R | 12 | 130 | 12 |
| APMR-BNM16-D16-C16-L175 | R | 16 | 175 | 16 |
| APMR-BNM16-D16-C16-L200 | R | 16 | 200 | 16 |
| APMR-BNM20-D20-C20-L160 | R | 20 | 160 | 20 |
| APMR-BNM20-D20-C20-L200 | R | 20 | 200 | 20 |
| APMR-BNM20-D20-C20-L250 | R | 20 | 250 | 20 |
| APMR-BNM25-D25-C25-L160 | R | 25 | 160 | 25 |
| APMR-BNM25-D25-C25-L200 | R | 25 | 200 | 25 |
| APMR-BNM25-D25-C25-L250 | R | 25 | 250 | 25 |
