Tool Holders / Ball Nose Modular End Mills (SCREW Type Tools)
APMR-BNM16-D16-M08-L23
APMR-BNM-H series · see all 3 sizes
Insert compatibility
This size is built for the insert designation BNM 160 (as listed in the catalogue data).

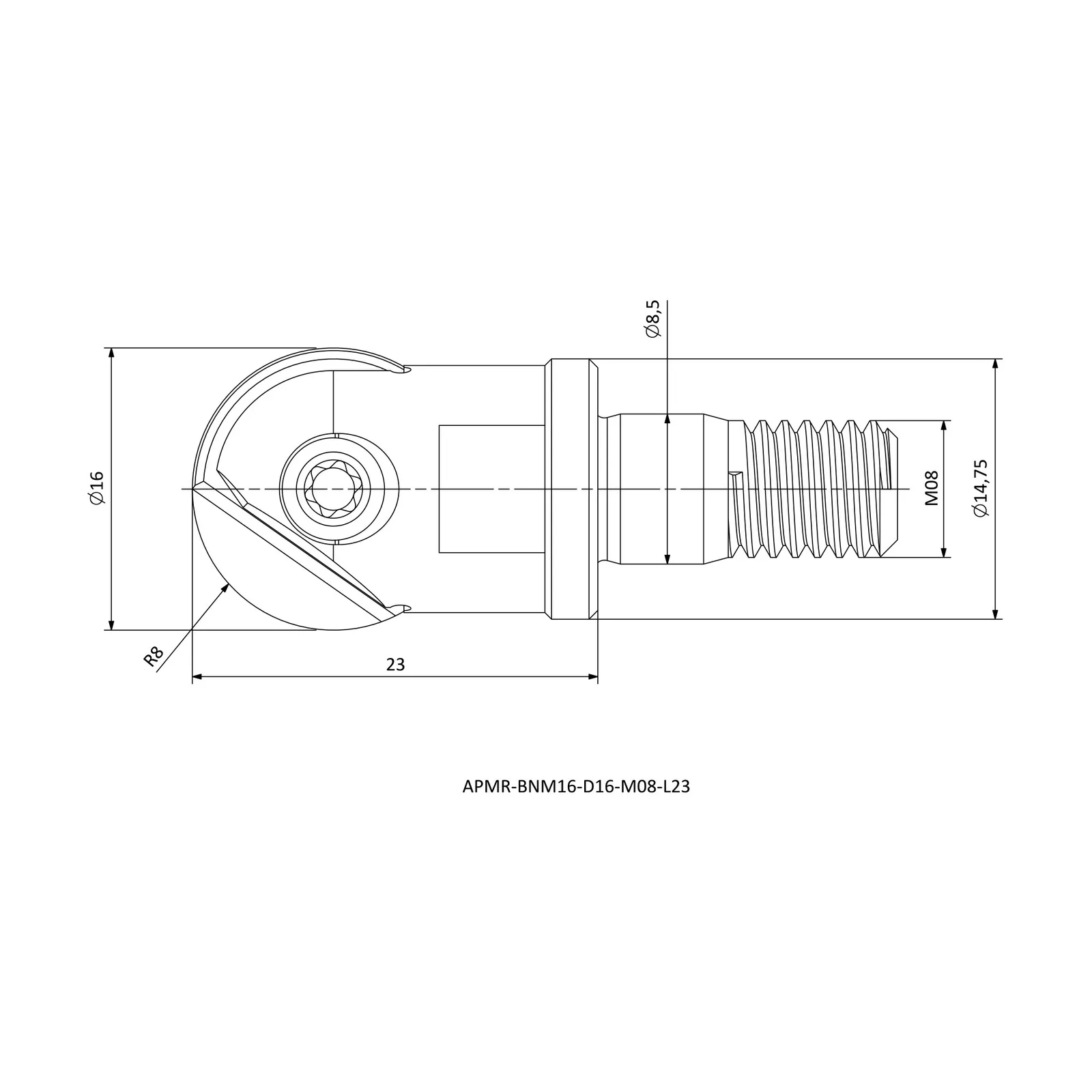

Specifications — APMR-BNM16-D16-M08-L23
| Insert Code | Insert designation | BNM 160-S |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 8.5 |
| DCSFMS | Contact-face diameter, machine side (mm) | 14.75 |
| LF | Functional length (mm) | 23 |
| DCX | Maximum diameter (mm) | 16 |
| TDZ | Thread depth (mm) | M08 |
| RE | Corner radius (mm) | 8 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 3 sizes in APMR-BNM-H
| Product code | Cutting direction (hand) | Connection diameter (mm) | Contact-face diameter, machine side (mm) | Functional length (mm) |
|---|---|---|---|---|
| APMR-BNM12-D12-M06-L20 | R | 6.5 | 11 | 20 |
| APMR-BNM16-D16-M08-L23 | R | 8.5 | 14.75 | 23 |
| APMR-BNM20-D20-M10-L30 | R | 10.5 | 18 | 30 |
