Tool Holders / Ball Nose Modular End Mills (SCREW Type Tools)
APMR-P3225-D25-M12-L35
APMR-P series · see all 6 sizes
Insert compatibility
This size is built for the insert designation P 3225 (as listed in the catalogue data).

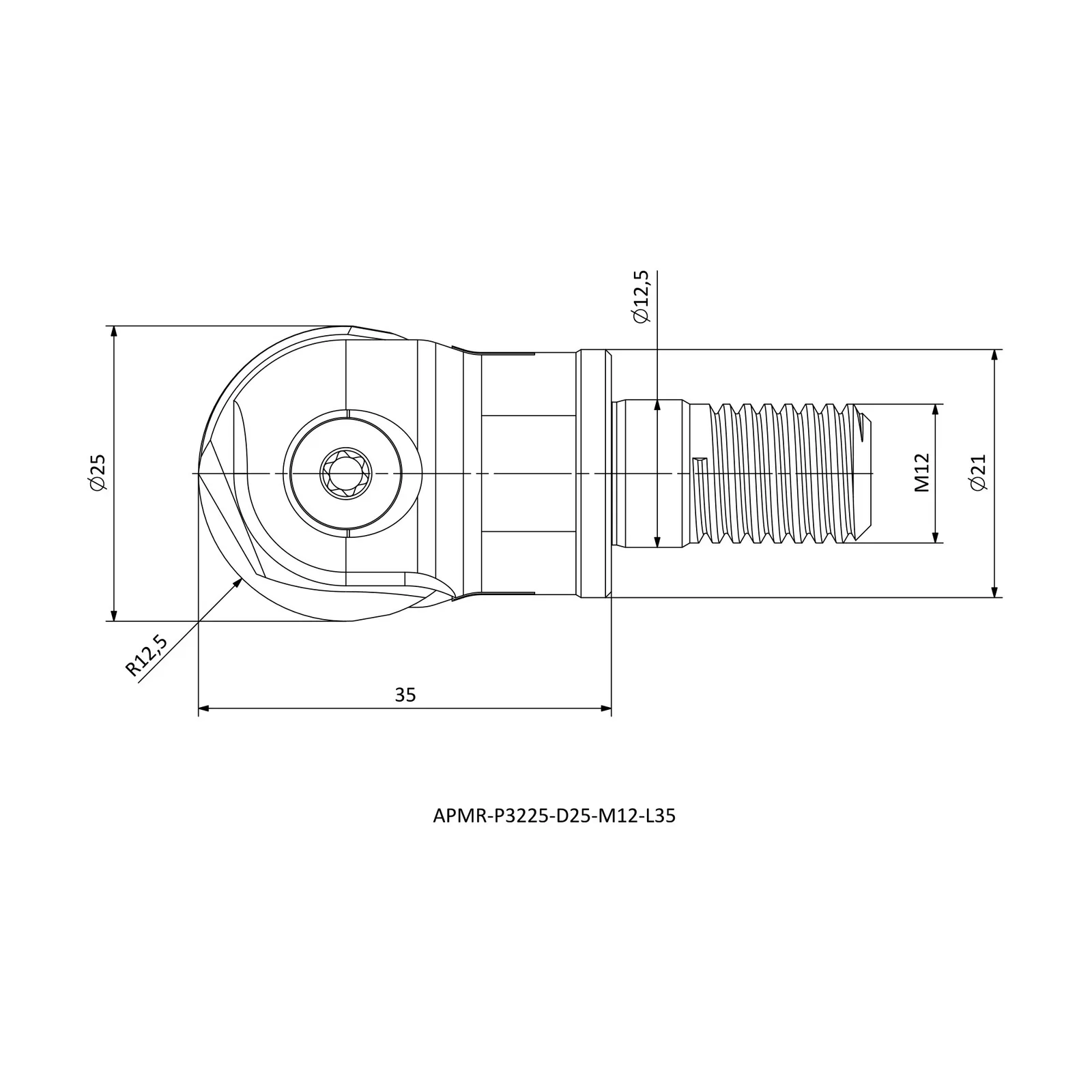

Specifications — APMR-P3225-D25-M12-L35
| Insert Code | Insert designation | P3225 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 12.5 |
| DCSFMS | Contact-face diameter, machine side (mm) | 21 |
| LF | Functional length (mm) | 35 |
| DCX | Maximum diameter (mm) | 25 |
| TDZ | Thread depth (mm) | M12 |
| RE | Corner radius (mm) | 12.5 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 6 sizes in APMR-P
| Product code | Cutting direction (hand) | Connection diameter (mm) | Contact-face diameter, machine side (mm) | Functional length (mm) |
|---|---|---|---|---|
| APMR-P3210-D10-M06-L20 | R | 6.5 | 10 | 20 |
| APMR-P3212-D12-M06-L20 | R | 6.5 | 10 | 20 |
| APMR-P3216-D16-M08-L25 | R | 8.5 | 14 | 25 |
| APMR-P3220-D20-M10-L30 | R | 10.5 | 18 | 30 |
| APMR-P3225-D25-M12-L35 | R | 12.5 | 21 | 35 |
| APMR-P3232-D32-M16-L43 | R | 17 | 30 | 43 |
