Tool Holders / Ball Nose Modular End Mills (SCREW Type Tools)
APMR-SWB225-D25-M12-L35
APMR-SWB series · see all 3 sizes
Insert compatibility
This size is built for the insert designation SWB 225HM (as listed in the catalogue data).

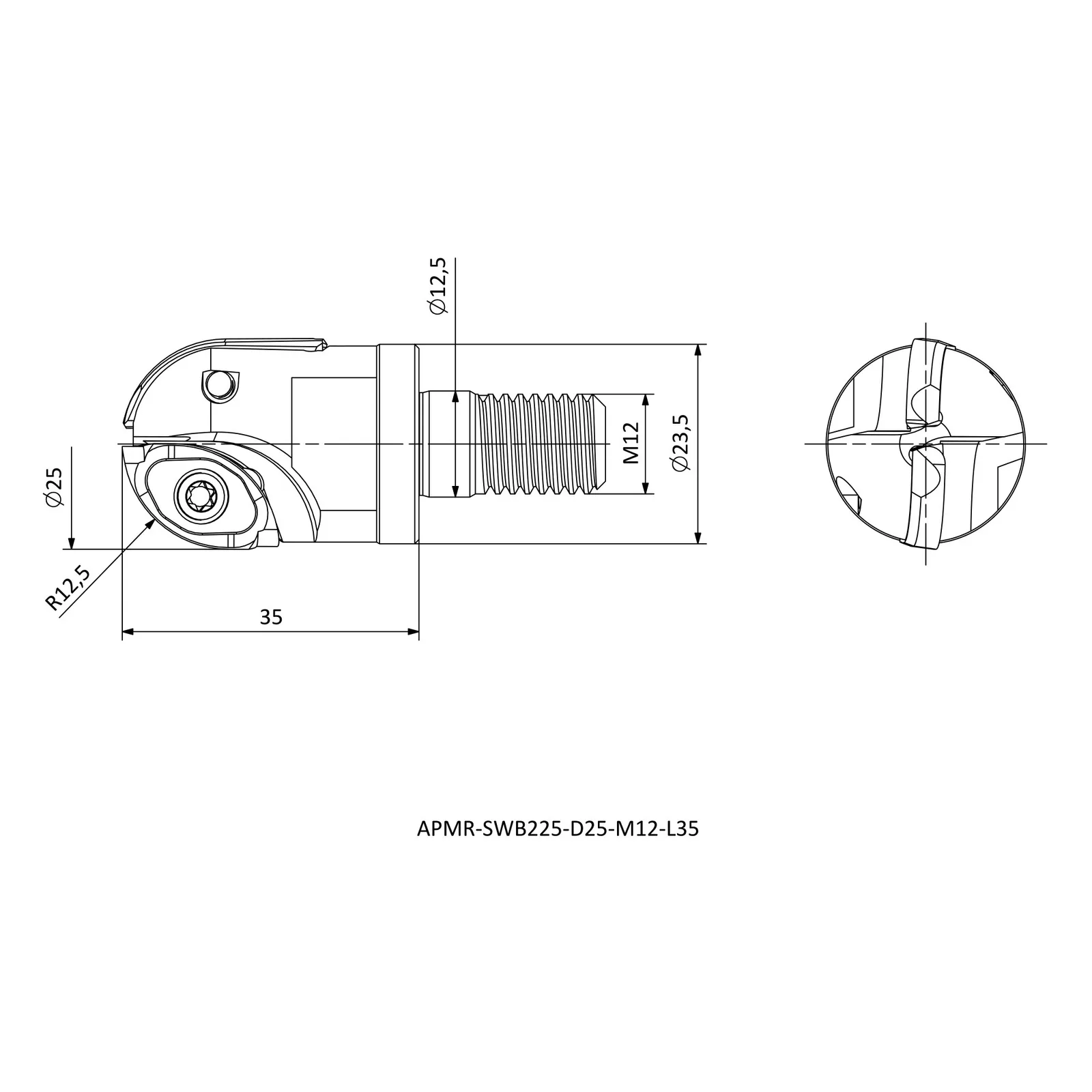

Specifications — APMR-SWB225-D25-M12-L35
| Insert Code | Insert designation | SWB225HM-HS |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 12.5 |
| DCSFMS | Contact-face diameter, machine side (mm) | 23.5 |
| LF | Functional length (mm) | 35 |
| DCX | Maximum diameter (mm) | 25 |
| TDZ | Thread depth (mm) | M12 |
| RE | Corner radius (mm) | 12.5 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 3 sizes in APMR-SWB
| Product code | Cutting direction (hand) | Connection diameter (mm) | Contact-face diameter, machine side (mm) | Functional length (mm) |
|---|---|---|---|---|
| APMR-SWB230-D30-M16-L43 | R | 17 | 28 | 43 |
| APMR-SWB225-D25-M12-L35 | R | 12.5 | 23.5 | 35 |
| APMR-SWB232-D32-M16-L43 | R | 17 | 30 | 43 |
