Tool Holders / Ball Nose Modular End Mills (SCREW Type Tools)

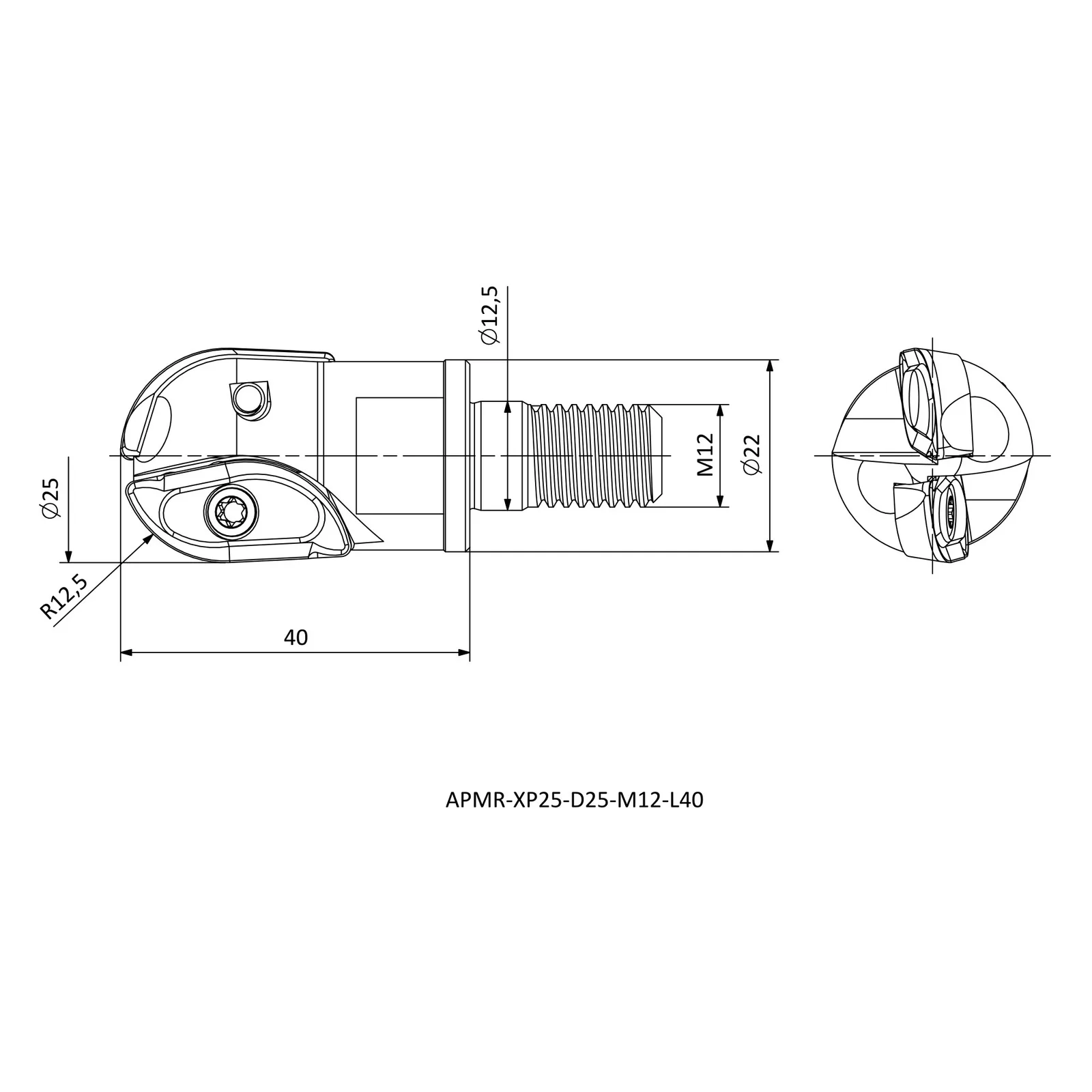

APMR-XP25-D25-M12-L40
APMR-XP series · see all 3 sizes
Insert compatibility
This size is built for the insert designation XPHT 25R1204 (as listed in the catalogue data).
Specifications — APMR-XP25-D25-M12-L40
| Insert Code | Insert designation | XPHT 25R1204 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 12.5 |
| DCSFMS | Contact-face diameter, machine side (mm) | 2 |
| LF | Functional length (mm) | 40 |
| DCX | Maximum diameter (mm) | 25 |
| APMX | Depth of cut, maximum (mm) | 25 |
| TDZ | Thread depth (mm) | M12 |
| RE | Corner radius (mm) | 12.5 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 3 sizes in APMR-XP
| Product code | Cutting direction (hand) | Connection diameter (mm) | Contact-face diameter, machine side (mm) | Functional length (mm) |
|---|---|---|---|---|
| APMR-XP16-D16-M08-L25 | R | 8.5 | 14.75 | 25 |
| APMR-XP20-D20-M10-L30 | R | 10.5 | 18 | 30 |
| APMR-XP25-D25-M12-L40 | R | 12.5 | 2 | 40 |
