Tool Holders / C-System Boring Bars
S25T CTFPR 16
CTFPR/L series · see all 4 sizes
Insert compatibility
This size is built for the insert designation TP.. 1603 (as listed in the catalogue data).

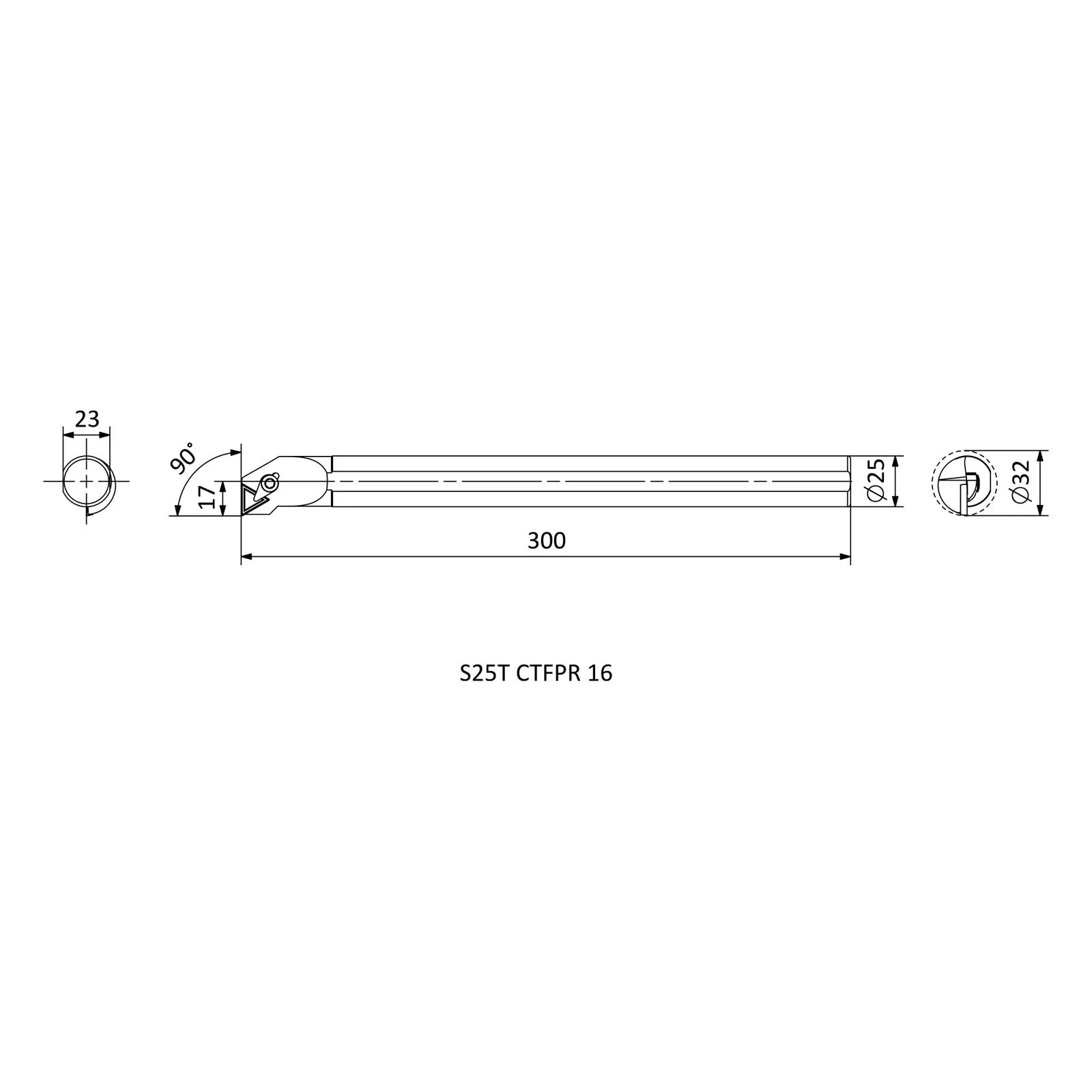

Specifications — S25T CTFPR 16
| Insert Code | Insert designation | TP.. 1603.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 25 |
| LF | Functional length (mm) | 300 |
| WF | Functional width (mm) | 17 |
| H | Shank height (mm) | 23 |
| D min | Minimum working diameter (mm) | 32 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 4 sizes in CTFPR/L
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Functional width (mm) |
|---|---|---|---|---|
| S20S CTFPL 16 | L | 20 | 250 | 13 |
| S20S CTFPR 16 | R | 20 | 250 | 13 |
| S25T CTFPL 16 | L | 25 | 300 | 17 |
| S25T CTFPR 16 | R | 25 | 300 | 17 |
