Tool Holders / C-System External Turning Toolholders
CKJNR 3232 P16
CKJNR/L series · see all 8 sizes
Insert compatibility
This size is built for the insert designation KNUX 1604 (as listed in the catalogue data).

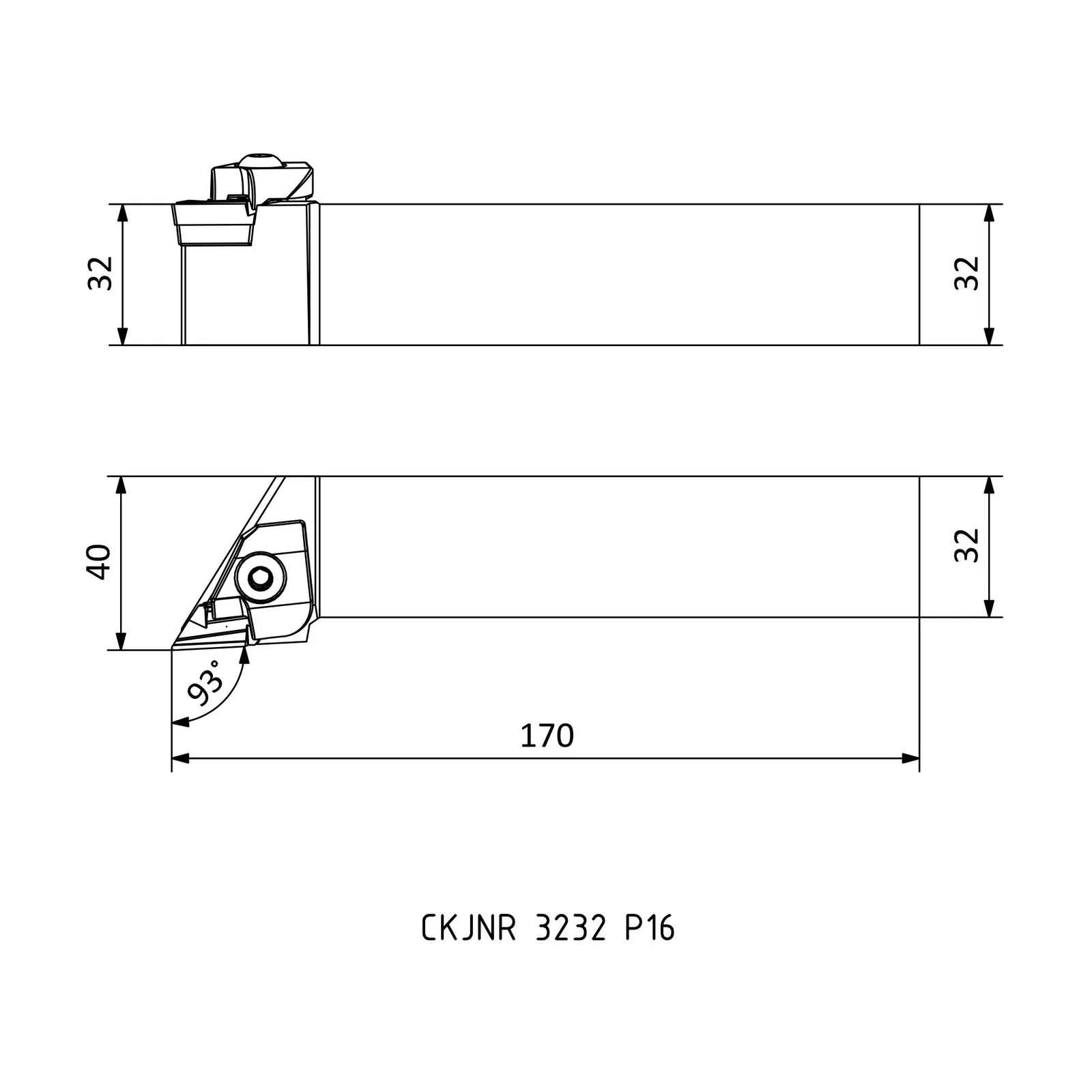

Specifications — CKJNR 3232 P16
| Insert Code | Insert designation | KNUX 1604.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| LF | Functional length (mm) | 170 |
| WF | Functional width (mm) | 40 |
| HF=H | Functional height (mm) | 32 |
| B | Shank width (mm) | 32 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 8 sizes in CKJNR/L
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| CKJNL 2020 K16 | L | 125 | 27.5 | 20 |
| CKJNR 2020 K16 | R | 125 | 27.5 | 20 |
| CKJNL 2525 M16 | L | 150 | 31.5 | 25 |
| CKJNR 2525 M16 | R | 150 | 31.5 | 25 |
| CKJNL 3232 P16 | L | 170 | 40 | 32 |
| CKJNR 3232 P16 | R | 170 | 40 | 32 |
| CKJNL 4040 S16 | L | 250 | 50 | 40 |
| CKJNR 4040 S16 | R | 250 | 50 | 40 |
