Tool Holders / C-System External Turning Toolholders
CRDCN 2525 M09CV
CRDCN series · see all 11 sizes
Insert compatibility
This size is built for the insert designation RCGX 0907 (as listed in the catalogue data).

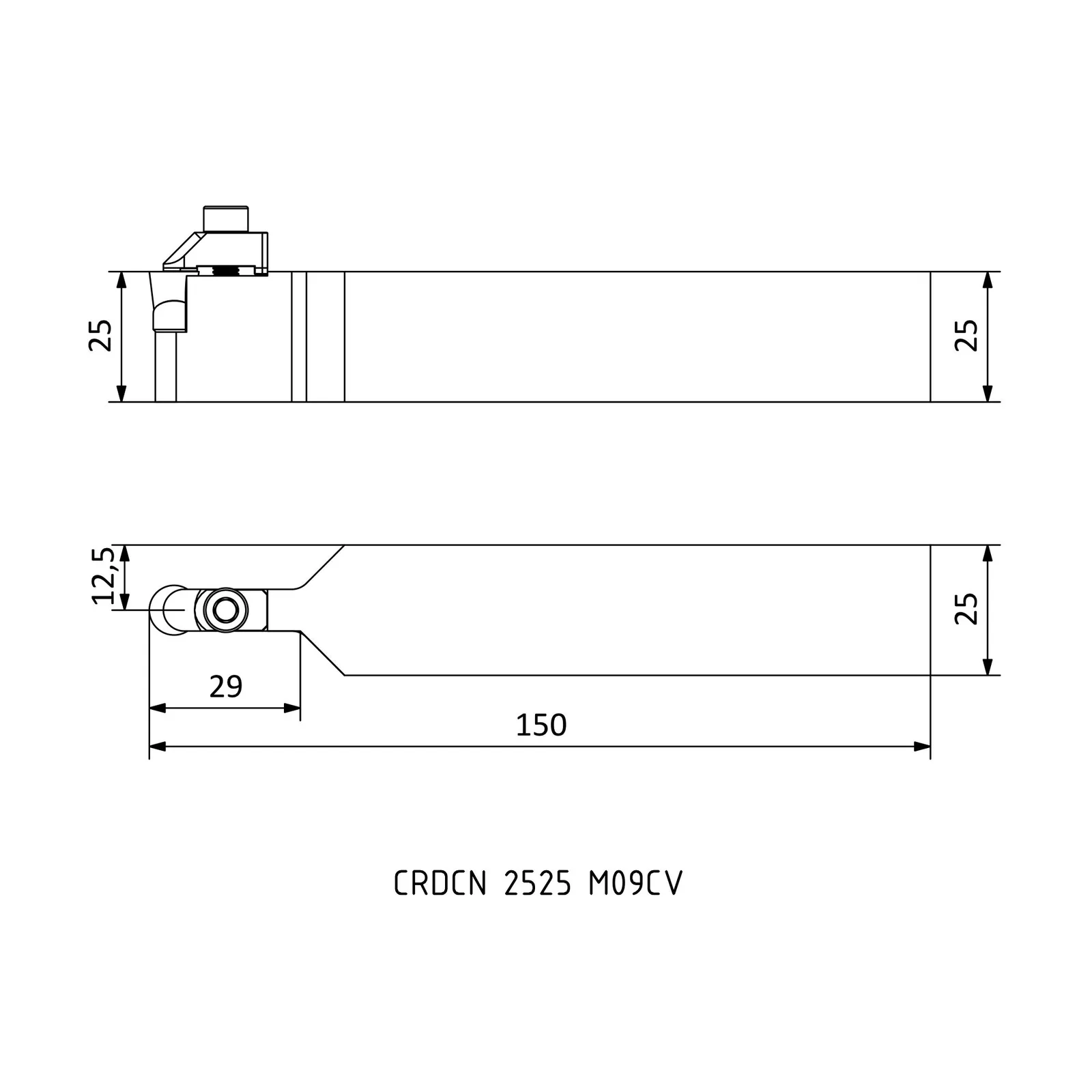

Specifications — CRDCN 2525 M09CV
| Insert Code | Insert designation | RCGX 0907.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | N |
| LU | Usable length (mm) | 29 |
| LF | Functional length (mm) | 150 |
| WF | Functional width (mm) | 12.5 |
| HF=H | Functional height (mm) | 25 |
| B | Shank width (mm) | 25 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
