Tool Holders / C-System External Turning Toolholders
CRDCN 4040 R12CVK
CRDCNCVK series · see all 6 sizes
Insert compatibility
This size is built for the insert designation RCGX 1207 (as listed in the catalogue data).

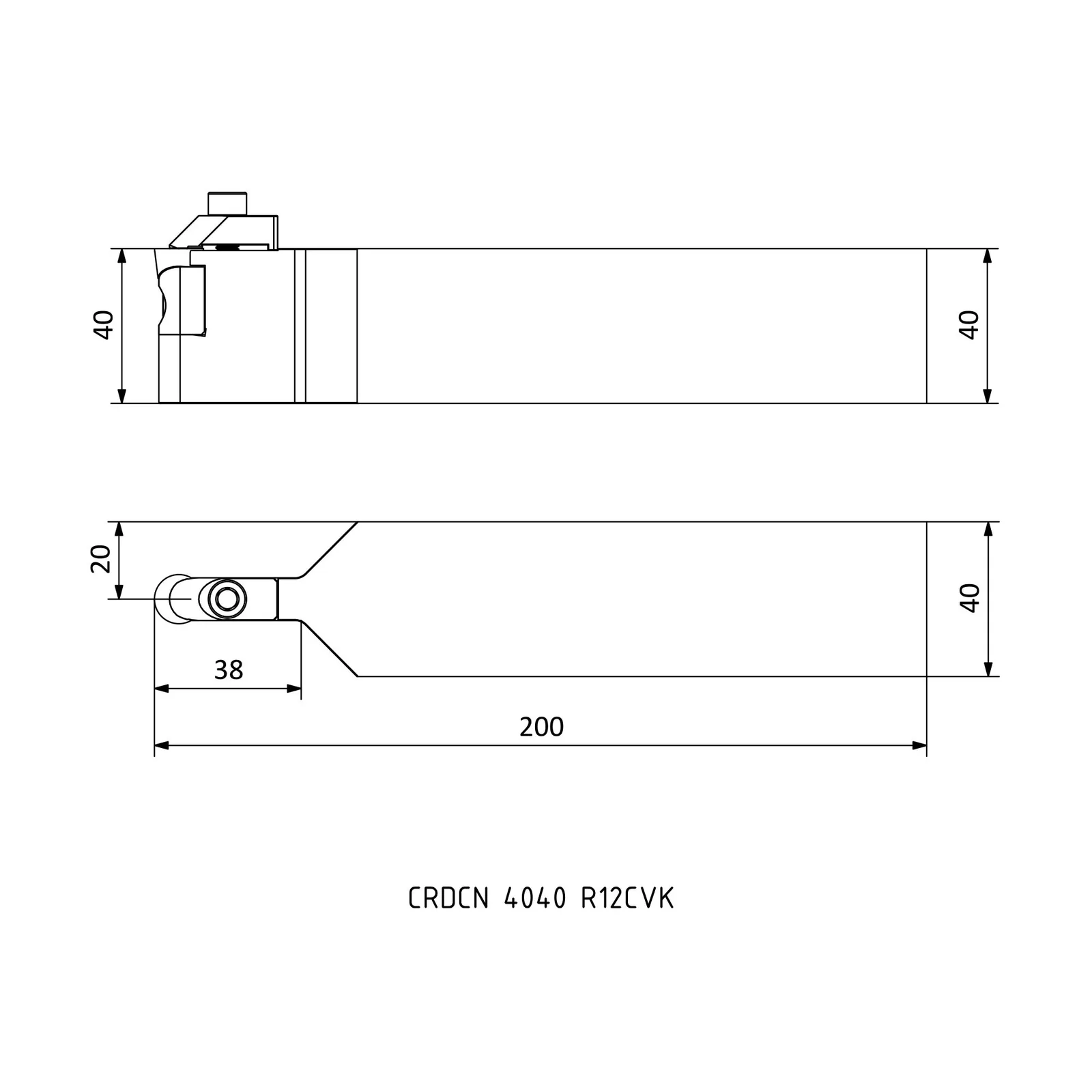

Specifications — CRDCN 4040 R12CVK
| Insert Code | Insert designation | RCGX 1207.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | N |
| LU | Usable length (mm) | 38 |
| LF | Functional length (mm) | 200 |
| WF | Functional width (mm) | 20 |
| HF=H | Functional height (mm) | 40 |
| B | Shank width (mm) | 40 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 6 sizes in CRDCNCVK
| Product code | Cutting direction (hand) | Usable length (mm) | Functional length (mm) | Functional width (mm) |
|---|---|---|---|---|
| CRDCN 3232 P06CVK | N | 19 | 170 | 16 |
| CRDCN 4040 R06CVK | N | 19 | 200 | 20 |
| CRDCN 3232 P09CVK | N | 29 | 170 | 16 |
| CRDCN 4040 R09CVK | N | 29 | 200 | 20 |
| CRDCN 3232 P12CVK | N | 38 | 170 | 16 |
| CRDCN 4040 R12CVK | N | 38 | 200 | 20 |
