Tool Holders / C-System External Turning Toolholders
CRDCR 3225 P06CV
CRDCR/L series · see all 6 sizes
Insert compatibility
This size is built for the insert designation RCGX 0606 (as listed in the catalogue data).

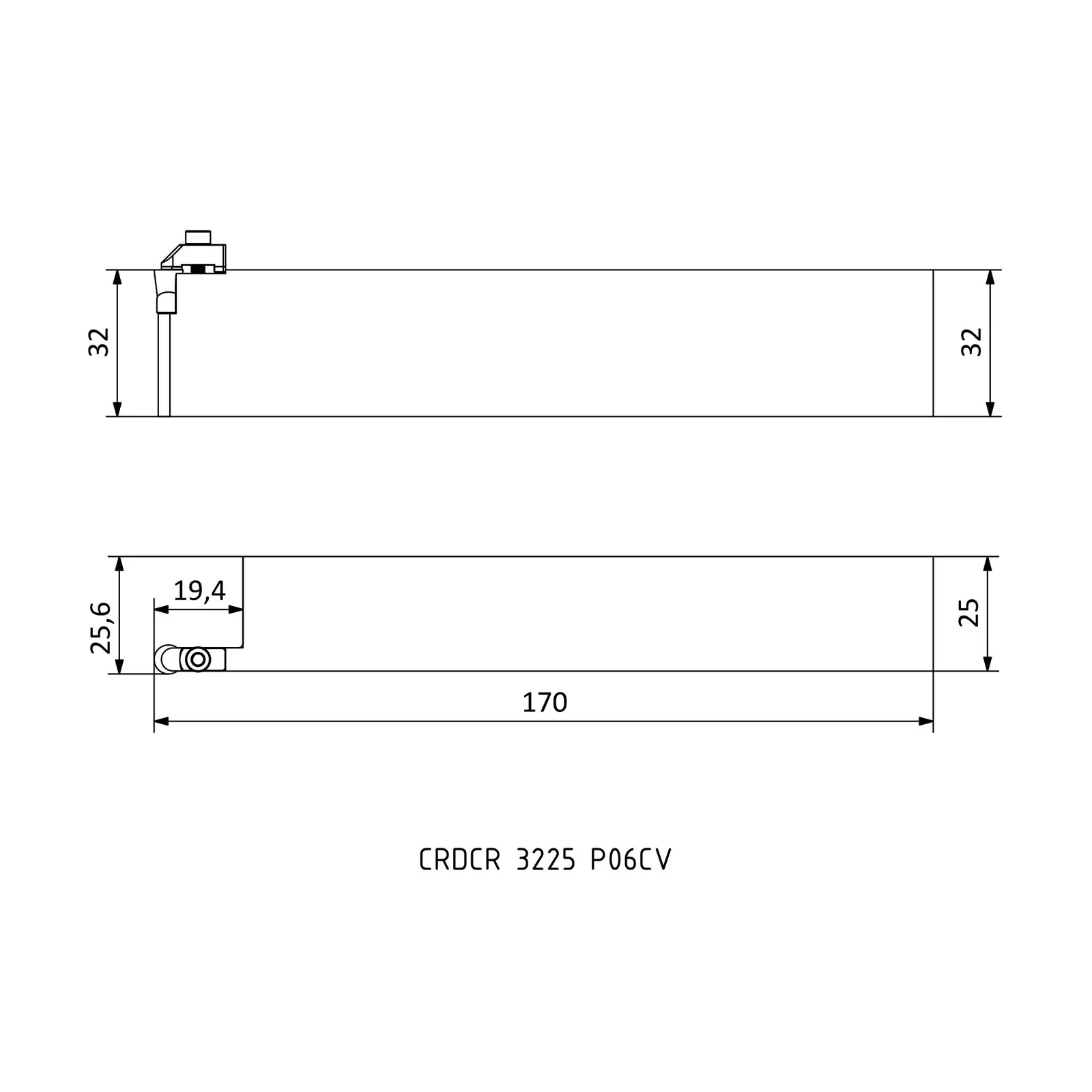

Specifications — CRDCR 3225 P06CV
| Insert Code | Insert designation | RCGX 0606.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| LF | Functional length (mm) | 170 |
| WF | Functional width (mm) | 25.6 |
| HF=H | Functional height (mm) | 32 |
| B | Shank width (mm) | 25 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 6 sizes in CRDCR/L
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| CRDCL 3225 P06CV | L | 170 | 25.8 | 32 |
| CRDCR 3225 P06CV | R | 170 | 25.6 | 32 |
| CRDCL 3225 P09CV | L | 170 | 25.8 | 32 |
| CRDCR 3225 P09CV | R | 170 | 25.8 | 32 |
| CRDCL 3225 P12CV | L | 170 | 25.9 | 32 |
| CRDCR 3225 P12CV | R | 170 | 25.9 | 32 |
