Tool Holders / C-System External Turning Toolholders
CSDNN 3232 P1207C
CSDNN series · see all 2 sizes
Insert compatibility
This size is built for the insert designation SN.N 1207 (as listed in the catalogue data).

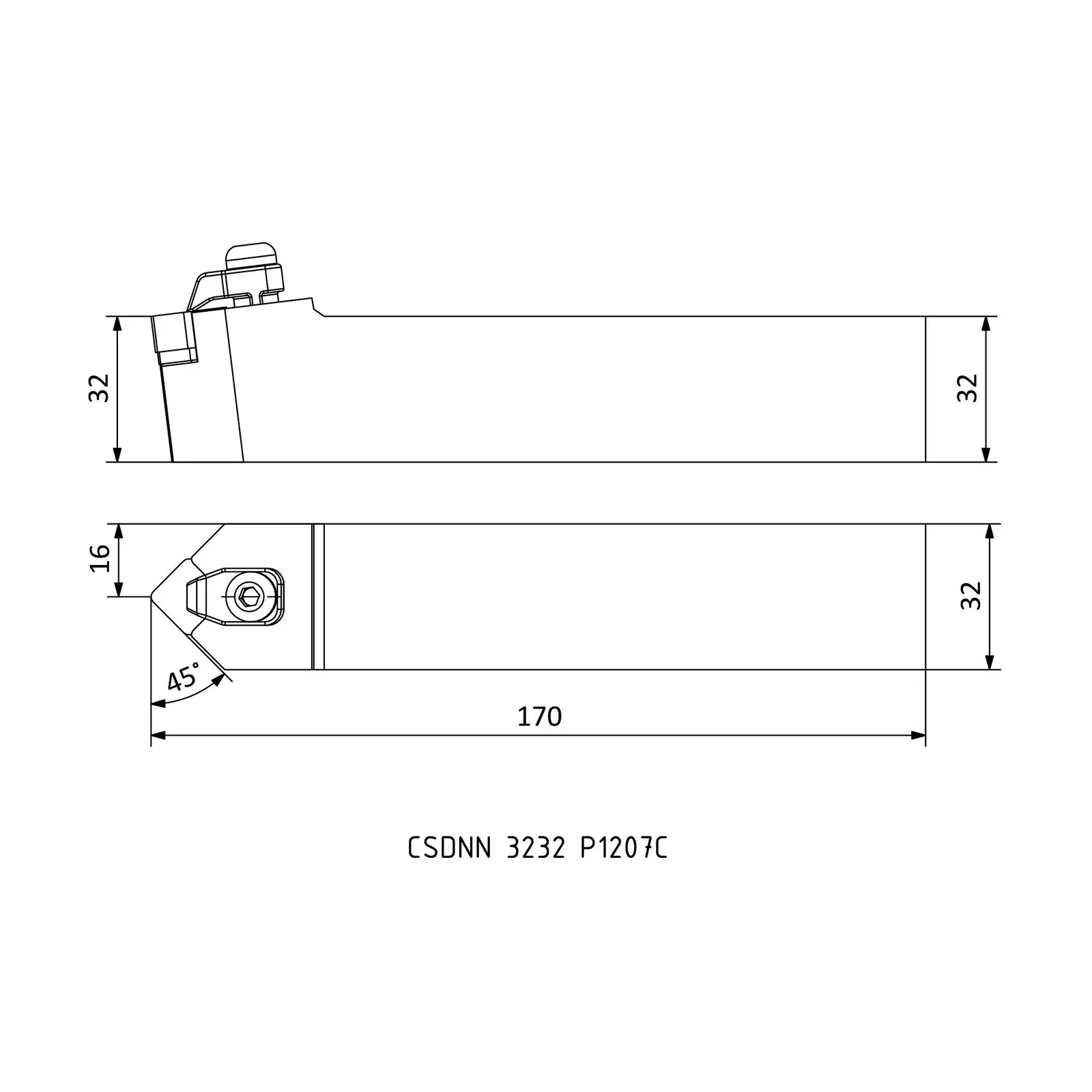

Specifications — CSDNN 3232 P1207C
| Insert Code | Insert designation | SN.N 1207.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | N |
| LF | Functional length (mm) | 170 |
| WF | Functional width (mm) | 16 |
| HF=H | Functional height (mm) | 32 |
| B | Shank width (mm) | 32 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 2 sizes in CSDNN
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| CSDNN 2525 M1207C | N | 150 | 12.5 | 25 |
| CSDNN 3232 P1207C | N | 170 | 16 | 32 |
