Tool Holders / C-System External Turning Toolholders
CTJNL 3232 P1607C
CTJNR/L series · see all 4 sizes
Insert compatibility
This size is built for the insert designation TN.N 1607 (as listed in the catalogue data).

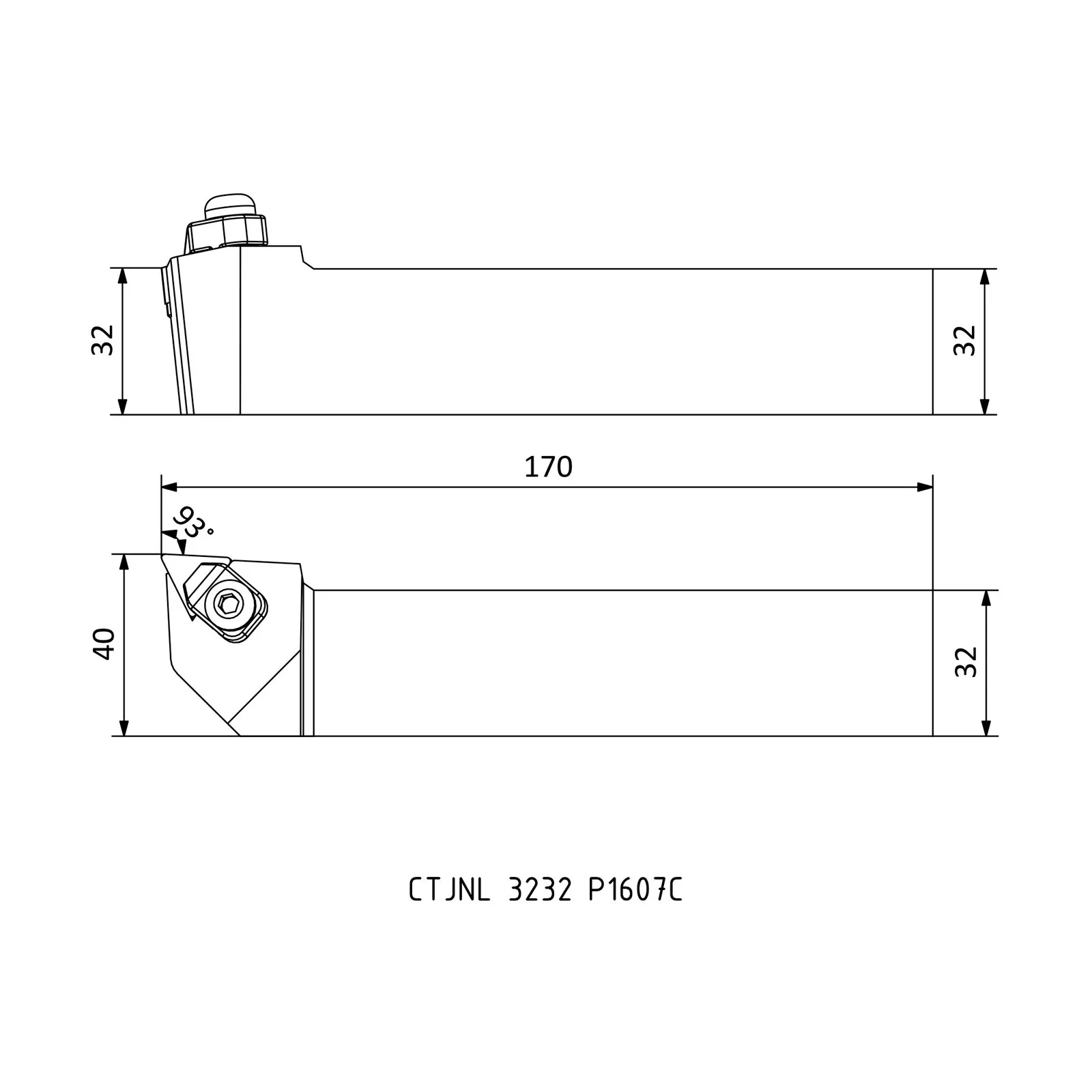

Specifications — CTJNL 3232 P1607C
| Insert Code | Insert designation | TN.N 1607.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| LF | Functional length (mm) | 170 |
| WF | Functional width (mm) | 40 |
| HF=H | Functional height (mm) | 32 |
| B | Shank width (mm) | 32 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 4 sizes in CTJNR/L
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| CTJNL 2525 M1607C | L | 150 | 32 | 25 |
| CTJNR 2525 M1607C | R | 150 | 32 | 25 |
| CTJNL 3232 P1607C | L | 170 | 40 | 32 |
| CTJNR 3232 P1607C | R | 170 | 40 | 32 |
