Tool Holders / C-System Face Milling (ARBOR Type)

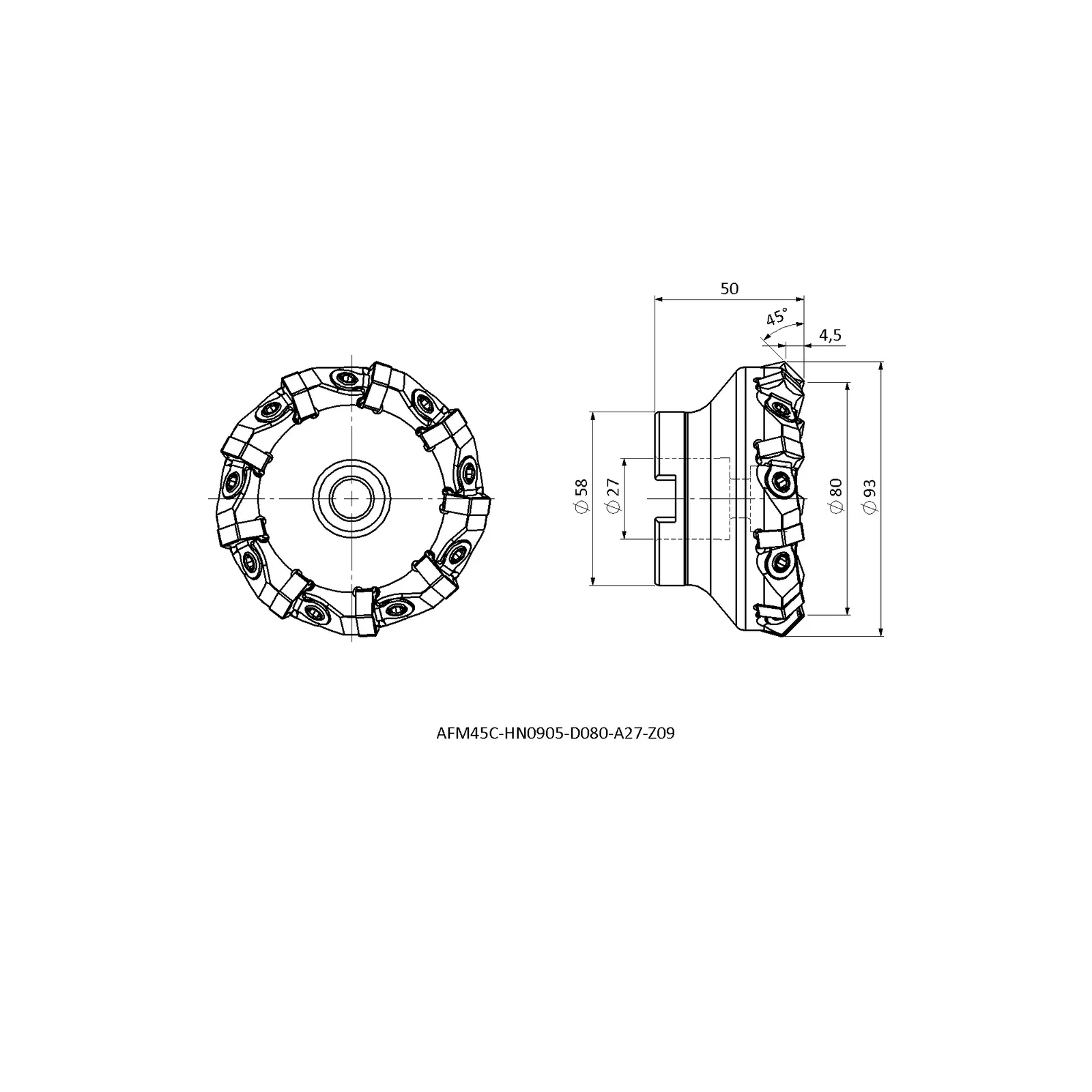

AFM45C-HN0905-D080-A27-Z09
AFM45C(L)-HN series · see all 6 sizes
Insert compatibility
This size is built for the insert designation HN.. 0905 (as listed in the catalogue data).
Specifications — AFM45C-HN0905-D080-A27-Z09
| Insert Code | Insert designation | HN.. 0905.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 80 |
| DCON | Connection diameter (mm) | 27 |
| LF | Functional length (mm) | 50 |
| ZEFP | Effective cutting edges | 9 |
| APMX | Depth of cut, maximum (mm) | 4.5 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 6 sizes in AFM45C(L)-HN
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AFM45C-HN0905-D063-A22-Z07 | R | 63 | 22 | 40 |
| AFM45C-HN0905-D080-A27-Z09 | R | 80 | 27 | 50 |
| AFM45C-HN0905-D100-A32-Z11 | R | 100 | 32 | 50 |
| AFM45C-HN0905-D125-B40-Z13 | R | 125 | 40 | 63 |
| AFM45CL-HN0905-D125-B40-Z10 | R | 125 | 40 | 63 |
| AFM45C-HN0905-D160-C40-Z15 | R | 160 | 40 | 63 |
