Tool Holders / C-System Face Milling (ARBOR Type)
AFM45C-XN0806-D200-C60-Z12
AFM45C-XN series · see all 6 sizes
Insert compatibility
This size is built for the insert designation XNMU 0806 (as listed in the catalogue data).

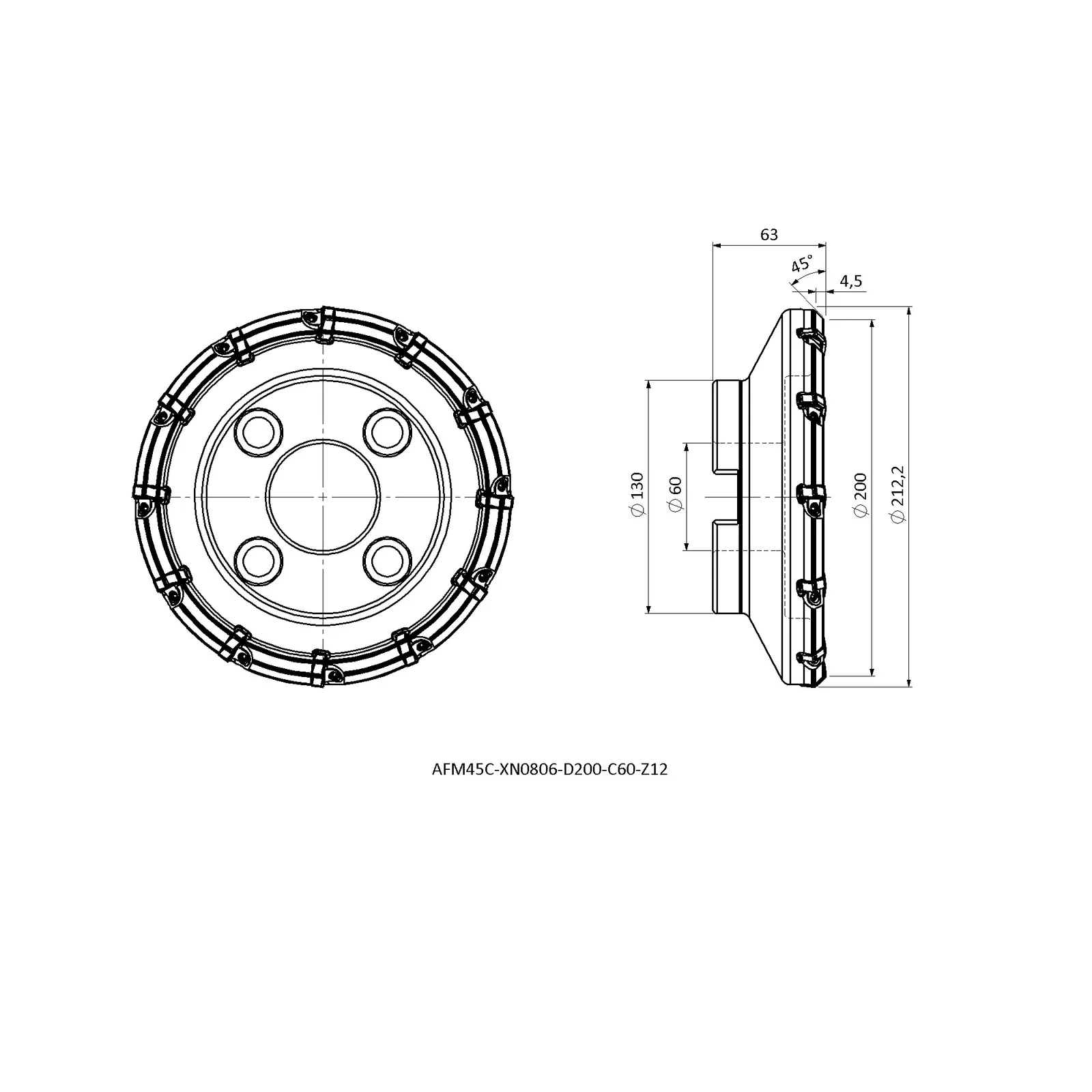

Specifications — AFM45C-XN0806-D200-C60-Z12
| Insert Code | Insert designation | XNMU 0806.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 200 |
| DCON | Connection diameter (mm) | 60 |
| LF | Functional length (mm) | 63 |
| ZEFP | Effective cutting edges | 12 |
| APMX | Depth of cut, maximum (mm) | 4.5 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 6 sizes in AFM45C-XN
