Tool Holders / C-System Face Milling (ARBOR Type)
AFM75C-SP12-D200-C60-Z12
AFM75C-SP series · see all 7 sizes
Insert compatibility
This size is built for the insert designation SPKN 1203 (as listed in the catalogue data).

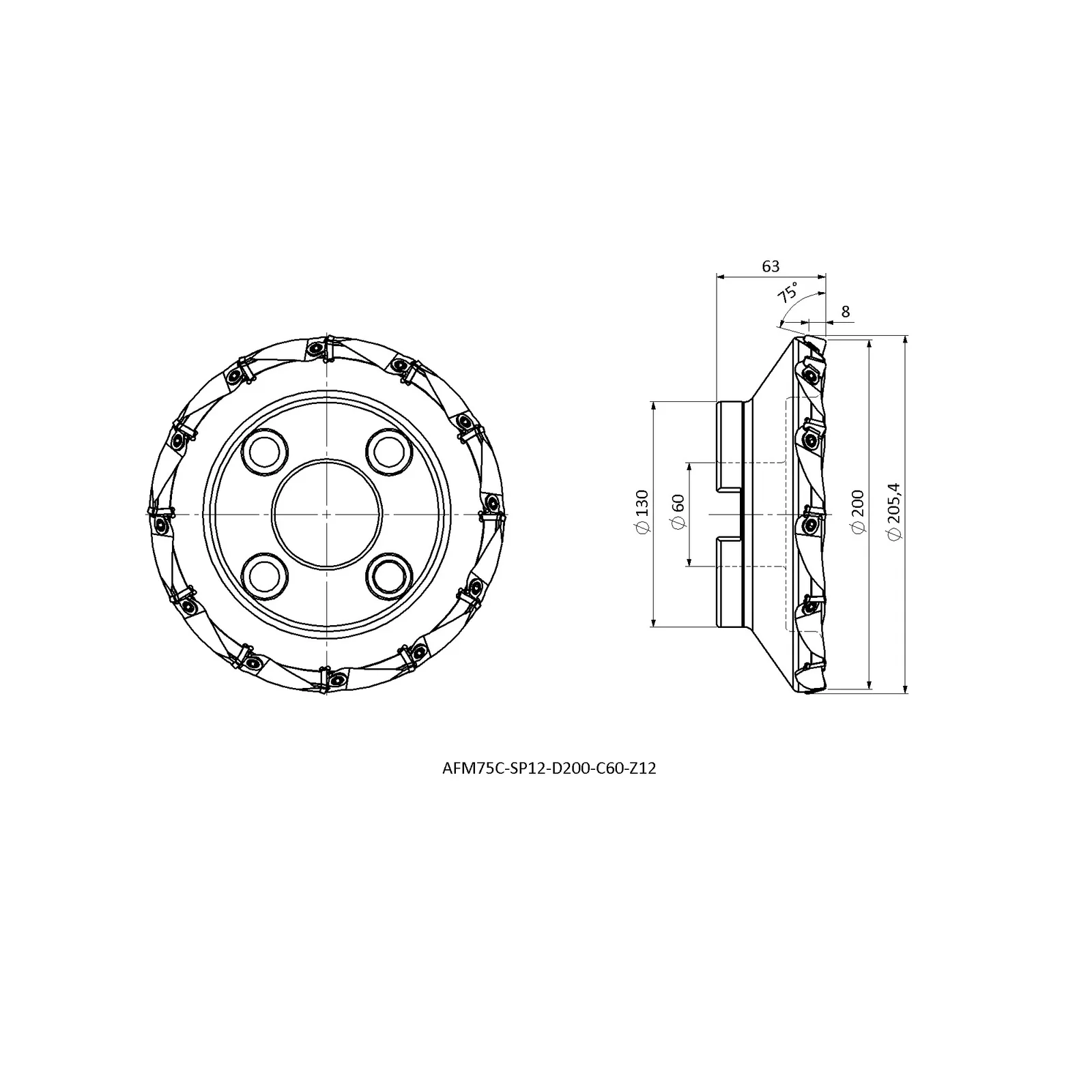

Specifications — AFM75C-SP12-D200-C60-Z12
| Insert Code | Insert designation | SPKN 1203.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 200 |
| DCON | Connection diameter (mm) | 60 |
| LF | Functional length (mm) | 63 |
| ZEFP | Effective cutting edges | 12 |
| APMX | Depth of cut, maximum (mm) | 8 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 7 sizes in AFM75C-SP
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AFM75C-SP12-D050-A22-Z04 | R | 50 | 22 | 42 |
| AFM75C-SP12-D063-A22-Z05 | R | 63 | 22 | 40 |
| AFM75C-SP12-D080-A27-Z06 | R | 80 | 27 | 50 |
| AFM75C-SP12-D100-A32-Z07 | R | 100 | 32 | 50 |
| AFM75C-SP12-D125-B40-Z08 | R | 125 | 40 | 63 |
| AFM75C-SP12-D160-C40-Z09 | R | 160 | 40 | 63 |
| AFM75C-SP12-D200-C60-Z12 | R | 200 | 60 | 63 |
