Tool Holders / C-System Face Milling (ARBOR Type)
AFM88C-SN1204-D100-A32-Z08
AFM88C-SN series · see all 5 sizes
Insert compatibility
This size is built for the insert designation SN.. 1204 (as listed in the catalogue data).

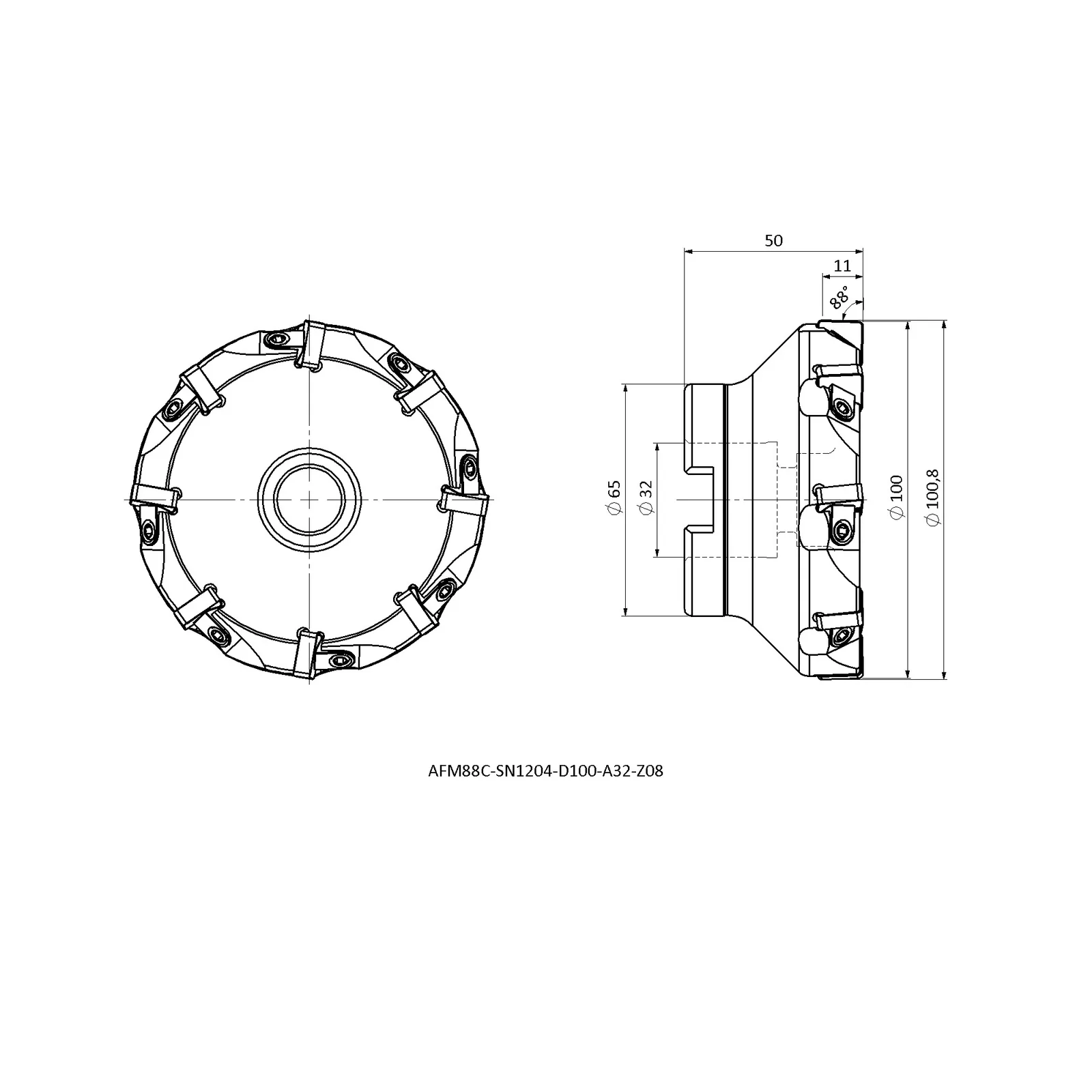

Specifications — AFM88C-SN1204-D100-A32-Z08
| Insert Code | Insert designation | SN.. 1204.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 100 |
| DCON | Connection diameter (mm) | 32 |
| LF | Functional length (mm) | 50 |
| ZEFP | Effective cutting edges | 8 |
| APMX | Depth of cut, maximum (mm) | 11 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 5 sizes in AFM88C-SN
