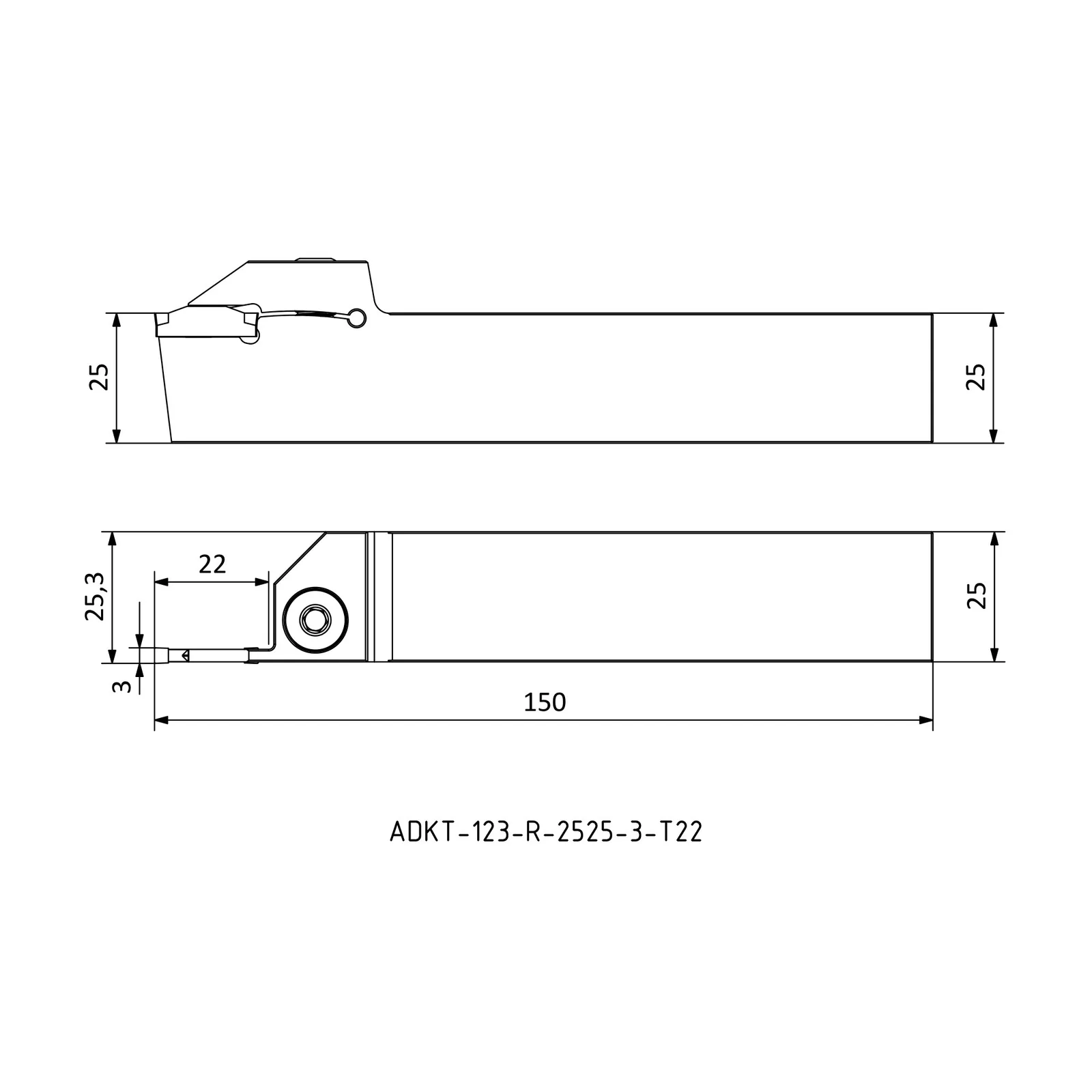

ADKT-123-R-2525-3-T22 — dimensioned drawing
Tool Holders / External Grooving Toolholders

ADKT-123-R-2525-3-T22

ADKT-123-R/L series · see all 52 sizes

Insert compatibility

This size is built for the insert designation 123 (as listed in the catalogue data).

Ask about this size

Specifications — ADKT-123-R-2525-3-T22

Insert Code Insert designation 123 - 3
Product Direction Cutting direction (hand) R
LF Functional length (mm) 150
WF Functional width (mm) 25.3
HF=H Functional height (mm) 25
B Shank width (mm) 25
CDX Cutting depth, maximum (mm) 22

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

All 52 sizes in ADKT-123-R/L

Product codeCutting direction (hand)Functional length (mm)Functional width (mm)Functional height (mm)
ADKT-123-L-1212-2-T12 L12512.212
ADKT-123-R-1212-2-T12 R12512.212
ADKT-123-L-1616-2.5-R17 L12516.2516
ADKT-123-R-1616-2.5-R17 R12516.2516
ADKT-123-L-1212-1.5-R15 L10012.212
ADKT-123-R-1212-1.5-R15 R10012.212
ADKT-123-L-1616-1.5-R15 L12516.216
ADKT-123-R-1616-1.5-R15 R12516.216
ADKT-123-L-2012-1.5-R15 L12512.520
ADKT-123-R-2012-1.5-R15 R12512.520
ADKT-123-L-1616-2-T15 L12516.216
ADKT-123-R-1616-2-T15 R12516.216
ADKT-123-L-2020-2-T8 L12520.220
ADKT-123-R-2020-2-T8 R12520.220
ADKT-123-L-2020-2-T15 L12520.220
ADKT-123-R-2020-2-T15 R12520.220
ADKT-123-L-2525-2-T8 L15025.225
ADKT-123-R-2525-2-T8 R15025.225
ADKT-123-L-2525-2-T15 L15025.225
ADKT-123-R-2525-2-T15 R15025.225
ADKT-123-L-3232-2-T15 L17032.232
ADKT-123-R-3232-2-T15 R17032.232
ADKT-123-L-1616-3-T10 L12516.316
ADKT-123-R-1616-3-T10 R12516.316
ADKT-123-L-1616-3-T15 L12516.316
ADKT-123-R-1616-3-T15 R12516.316
ADKT-123-L-2020-3-T10 L12520.320
ADKT-123-R-2020-3-T10 R12520.320
ADKT-123-L-2020-3-T15 L12520.320
ADKT-123-R-2020-3-T15 R12520.320
ADKT-123-L-2020-3-T20 L12520.320
ADKT-123-R-2020-3-T20 R12520.320
ADKT-123-L-2525-3-T10 L15025.325
ADKT-123-R-2525-3-T10 R15025.325
ADKT-123-L-2525-3-T15 L15025.325
ADKT-123-R-2525-3-T15 R15025.325
ADKT-123-L-2525-3-T22 L15025.325
ADKT-123-R-2525-3-T22 R15025.325
ADKT-123-L-2020-4-T20 L12520.420
ADKT-123-R-2020-4-T20 R12520.420
ADKT-123-L-2525-4-T13 L15025.425
ADKT-123-R-2525-4-T13 R15025.425
ADKT-123-L-2525-4-T22 L15025.425
ADKT-123-R-2525-4-T22 R15025.425
ADKT-123-L-3232-4-T25 L17032.432
ADKT-123-R-3232-4-T25 R17032.432
ADKT-123-L-2020-5-T20 L12520.520
ADKT-123-R-2020-5-T20 R12520.520
ADKT-123-L-2525-5-T25 L15025.525
ADKT-123-R-2525-5-T25 R15025.525
ADKT-123-L-3232-6-T15 L17032.532
ADKT-123-R-3232-6-T15 R17032.532

Full specification table & catalogue PDF
