Tool Holders / External Grooving Toolholders
ADKT-ITG-L-2525-4-T17
ADKT-ITG-R/L series · see all 14 sizes
Insert compatibility
This size is built for the insert designation TGM. - 4 (as listed in the catalogue data).

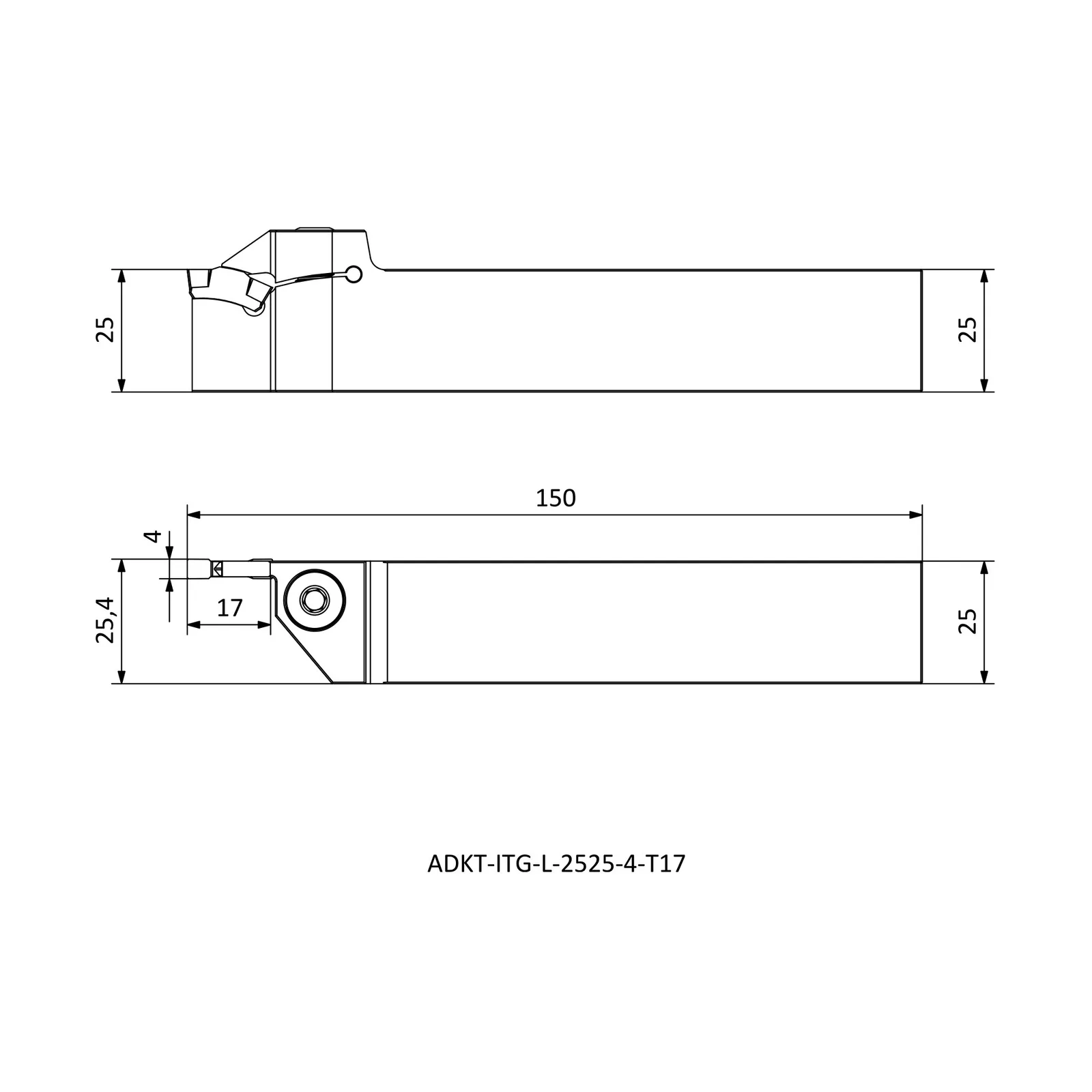

Specifications — ADKT-ITG-L-2525-4-T17
| Insert Code | Insert designation | TGM. - 4 |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| LF | Functional length (mm) | 150 |
| WF | Functional width (mm) | 25.4 |
| HF=H | Functional height (mm) | 25 |
| B | Shank width (mm) | 25 |
| CDX | Cutting depth, maximum (mm) | 17 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
