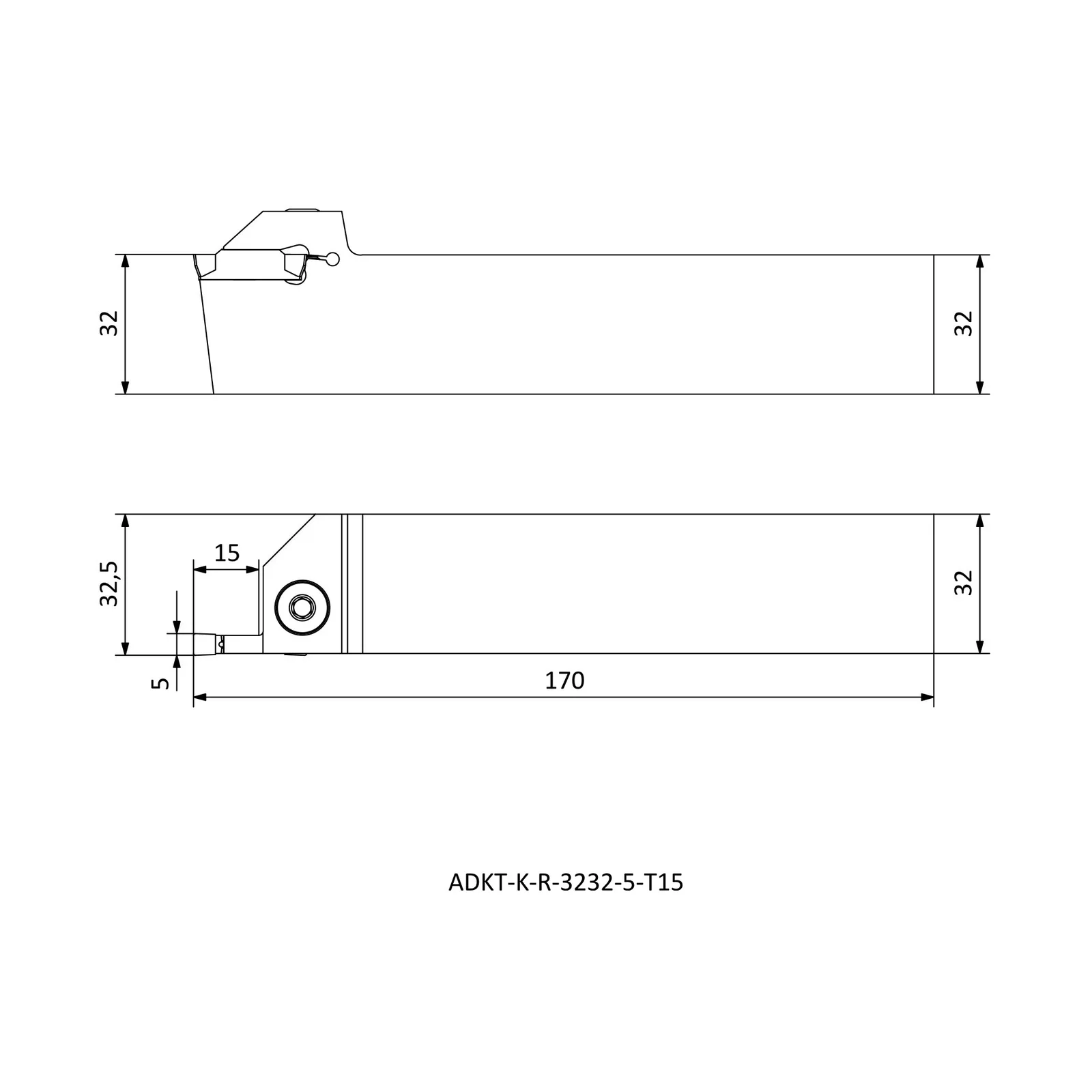

ADKT-K-R-3232-5-T15 — dimensioned drawing
Tool Holders / External Grooving Toolholders

ADKT-K-R-3232-5-T15

ADKT-K-R/L series · see all 76 sizes

Insert compatibility

This size is built for the insert designation MGM. - 5 (as listed in the catalogue data).

Ask about this size

Specifications — ADKT-K-R-3232-5-T15

Insert Code Insert designation MGM. - 5
Product Direction Cutting direction (hand) R
LF Functional length (mm) 170
WF Functional width (mm) 32.5
HF=H Functional height (mm) 32
B Shank width (mm) 32
CDX Cutting depth, maximum (mm) 15

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

All 76 sizes in ADKT-K-R/L

Product codeCutting direction (hand)Functional length (mm)Functional width (mm)Functional height (mm)
ADKT-K-L-1616-3-T7 L12516.316
ADKT-K-R-1616-3-T7 R12516.316
ADKT-K-L-2525-3-T30 L15025.316
ADKT-K-R-2525-3-T30 R15025.316
ADKT-K-L-1212-1.5-T15 L10012.212
ADKT-K-R-1212-1.5-T15 R10012.212
ADKT-K-L-2020-1.5-T15 L12520.220
ADKT-K-R-2020-1.5-T15 R12520.220
ADKT-K-L-1212-2-T15 L10016.312
ADKT-K-R-1212-2-T15 R10016.312
ADKT-K-L-1616-2-T10 L12516.316
ADKT-K-R-1616-2-T10 R12516.316
ADKT-K-L-1616-2-T15 L12516.316
ADKT-K-R-1616-2-T15 R12516.316
ADKT-K-L-2020-2-T15 L15020.320
ADKT-K-R-2020-2-T15 R15020.320
ADKT-K-L-2525-2-T15 L15025.325
ADKT-K-R-2525-2-T15 R15025.325
ADKT-K-L-3232-2-T15 L17032.332
ADKT-K-R-3232-2-T15 R17032.332
ADKT-K-L-1212-3-T15 L10012.312
ADKT-K-R-1212-3-T15 R10012.312
ADKT-K-L-1616-3-T15 L12516.316
ADKT-K-R-1616-3-T15 R12516.316
ADKT-K-L-2020-3-T10 L12520.320
ADKT-K-R-2020-3-T10 R12520.320
ADKT-K-L-2020-3-T20 L12520.320
ADKT-K-R-2020-3-T20 R12520.320
ADKT-K-L-2020-3-R28 L12520.320
ADKT-K-R-2020-3-R28 R12520.320
ADKT-K-L-2525-3-T10 L15025.325
ADKT-K-R-2525-3-T10 R15025.325
ADKT-K-L-2525-3-R15 L15025.325
ADKT-K-R-2525-3-R15 R15025.325
ADKT-K-L-2525-3-T22 L15025.325
ADKT-K-R-2525-3-T22 R15025.325
ADKT-K-L-3232-3-T10 L17032.332
ADKT-K-R-3232-3-T10 R17032.332
ADKT-K-L-3232-3-T22 L17032.332
ADKT-K-R-3232-3-T22 R17032.332
ADKT-K-L-2020-4-T10 L12520.420
ADKT-K-R-2020-4-T10 R12520.420
ADKT-K-L-2020-4-T20 L12520.420
ADKT-K-R-2020-4-T20 R12520.420
ADKT-K-L-2020-4-R25 L12520.420
ADKT-K-R-2020-4-R25 R12520.420
ADKT-K-L-2525-4-T10 L15025.425
ADKT-K-R-2525-4-T10 R15025.425
ADKT-K-L-2525-4-T18 L15025.425
ADKT-K-R-2525-4-T18 R15025.425
ADKT-K-L-2525-4-T22 L15025.425
ADKT-K-R-2525-4-T22 R15025.425
ADKT-K-L-3232-4-T10 L17032.432
ADKT-K-R-3232-4-T10 R17032.432
ADKT-K-L-3232-4-T22 L17032.432
ADKT-K-R-3232-4-T22 R17032.432
ADKT-K-L-2020-5-T20 L12520.520
ADKT-K-R-2020-5-T20 R12520.520
ADKT-K-L-2525-5-T15 L15025.525
ADKT-K-R-2525-5-T15 R15025.525
ADKT-K-L-2525-5-T18 L15025.525
ADKT-K-R-2525-5-T18 R15025.525
ADKT-K-L-2525-5-T25 L15025.525
ADKT-K-R-2525-5-T25 R15025.525
ADKT-K-L-3232-5-T15 L17032.532
ADKT-K-R-3232-5-T15 R17032.532
ADKT-K-L-3232-5-T25 L17032.532
ADKT-K-R-3232-5-T25 R17032.532
ADKT-K-L-2525-6-T15 L15025.625
ADKT-K-R-2525-6-T15 R15025.625
ADKT-K-L-2525-6-T25 L15025.625
ADKT-K-R-2525-6-T25 R15025.625
ADKT-K-L-3232-6-T25 L17032.632
ADKT-K-R-3232-6-T25 R17032.632
ADKT-K-L-3232-8-T32 L17032.832
ADKT-K-R-3232-8-T32 R17032.832
