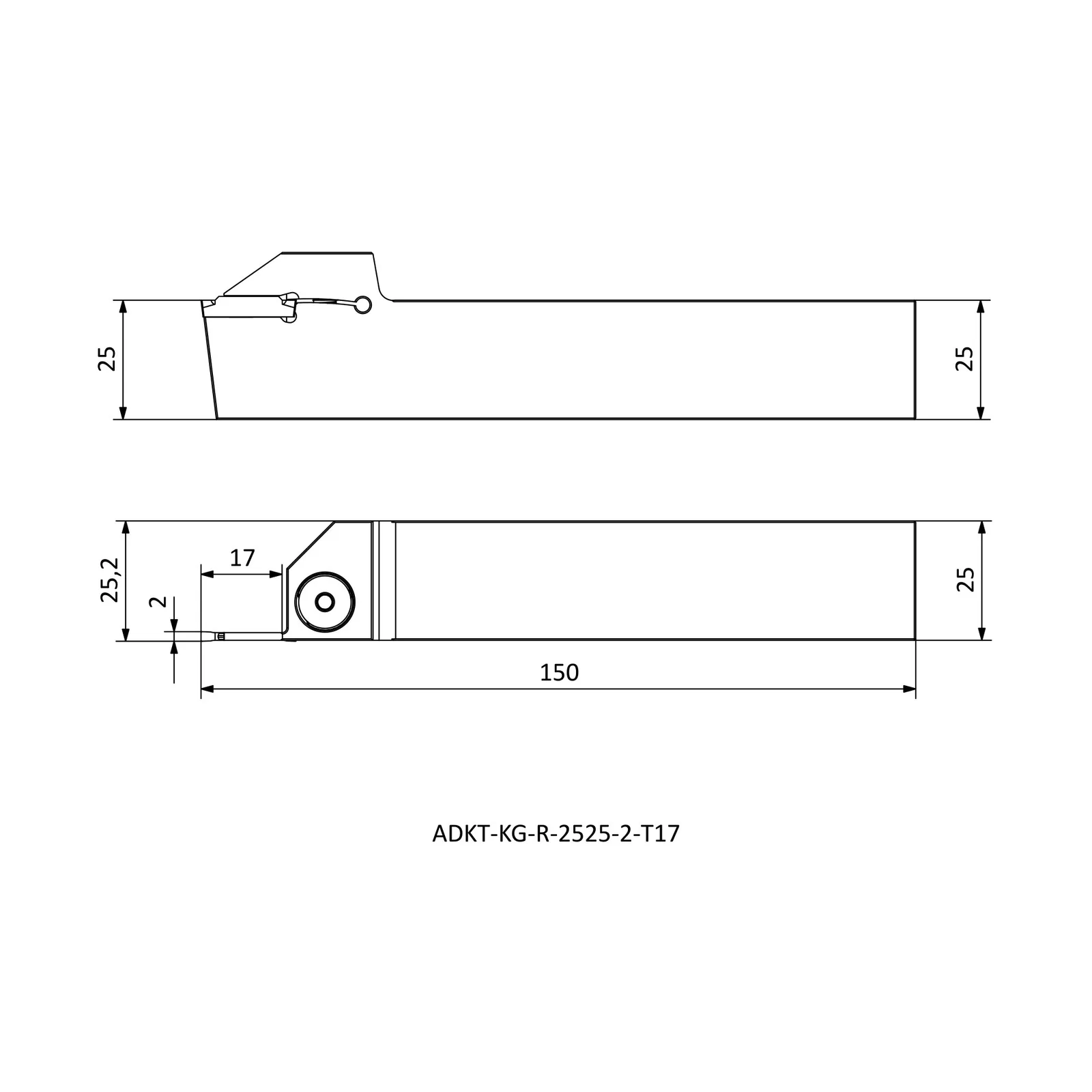

ADKT-KG-R-2525-2-T17 — dimensioned drawing
Tool Holders / External Grooving Toolholders

ADKT-KG-R-2525-2-T17

ADKT-KG-R/L series · see all 34 sizes

Insert compatibility

This size is built for the insert designation KG.. - 2 (as listed in the catalogue data).

Ask about this size

Specifications — ADKT-KG-R-2525-2-T17

Insert Code Insert designation KG.. - 2
Product Direction Cutting direction (hand) R
LF Functional length (mm) 150
WF Functional width (mm) 25.2
HF=H Functional height (mm) 25
B Shank width (mm) 25
CDX Cutting depth, maximum (mm) 17

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

All 34 sizes in ADKT-KG-R/L

Product codeCutting direction (hand)Functional length (mm)Functional width (mm)Functional height (mm)
ADKT-KG-L-2020-2-T15 L12520.220
ADKT-KG-R-2020-2-T15 R12520.220
ADKT-KG-L-2525-2-T8 L15025.225
ADKT-KG-R-2525-2-T8 R15025.225
ADKT-KG-L-2525-2-T15 L15025.225
ADKT-KG-R-2525-2-T15 R15025.225
ADKT-KG-L-2525-2-T17 L15025.225
ADKT-KG-R-2525-2-T17 R15025.225
ADKT-KG-L-1616-3-T20 L12516.316
ADKT-KG-R-1616-3-T20 R12516.316
ADKT-KG-L-2020-3-T20 L12520.320
ADKT-KG-R-2020-3-T20 R12520.320
ADKT-KG-L-2525-3-T10 L15025.325
ADKT-KG-R-2525-3-T10 R15025.325
ADKT-KG-L-2525-3-T13 L15025.325
ADKT-KG-R-2525-3-T13 R15025.325
ADKT-KG-L-2525-3-T22 L15025.325
ADKT-KG-R-2525-3-T22 R15025.325
ADKT-KG-L-2020-4-T20 L12520.420
ADKT-KG-R-2020-4-T20 R12520.420
ADKT-KG-L-2525-4-T10 L15025.425
ADKT-KG-R-2525-4-T10 R15025.425
ADKT-KG-L-2525-4-T16 L15025.425
ADKT-KG-R-2525-4-T16 R15025.425
ADKT-KG-L-2525-4-T22 L15025.425
ADKT-KG-R-2525-4-T22 R15025.425
ADKT-KG-L-2525-5-T12 L15025.525
ADKT-KG-R-2525-5-T12 R15025.525
ADKT-KG-L-2525-5-T15 L15025.525
ADKT-KG-R-2525-5-T15 R15025.525
ADKT-KG-L-2525-5-T25 L15025.525
ADKT-KG-R-2525-5-T25 R15025.525
ADKT-KG-L-2525-6-T25 L15025.625
ADKT-KG-R-2525-6-T25 R15025.625

Full specification table & catalogue PDF
