Tool Holders / External Grooving Toolholders
ADKT-KM-L-2525-2-T15
ADKT-KM-R/L series · see all 10 sizes
Insert compatibility
This size is built for the insert designation A 4 (as listed in the catalogue data).

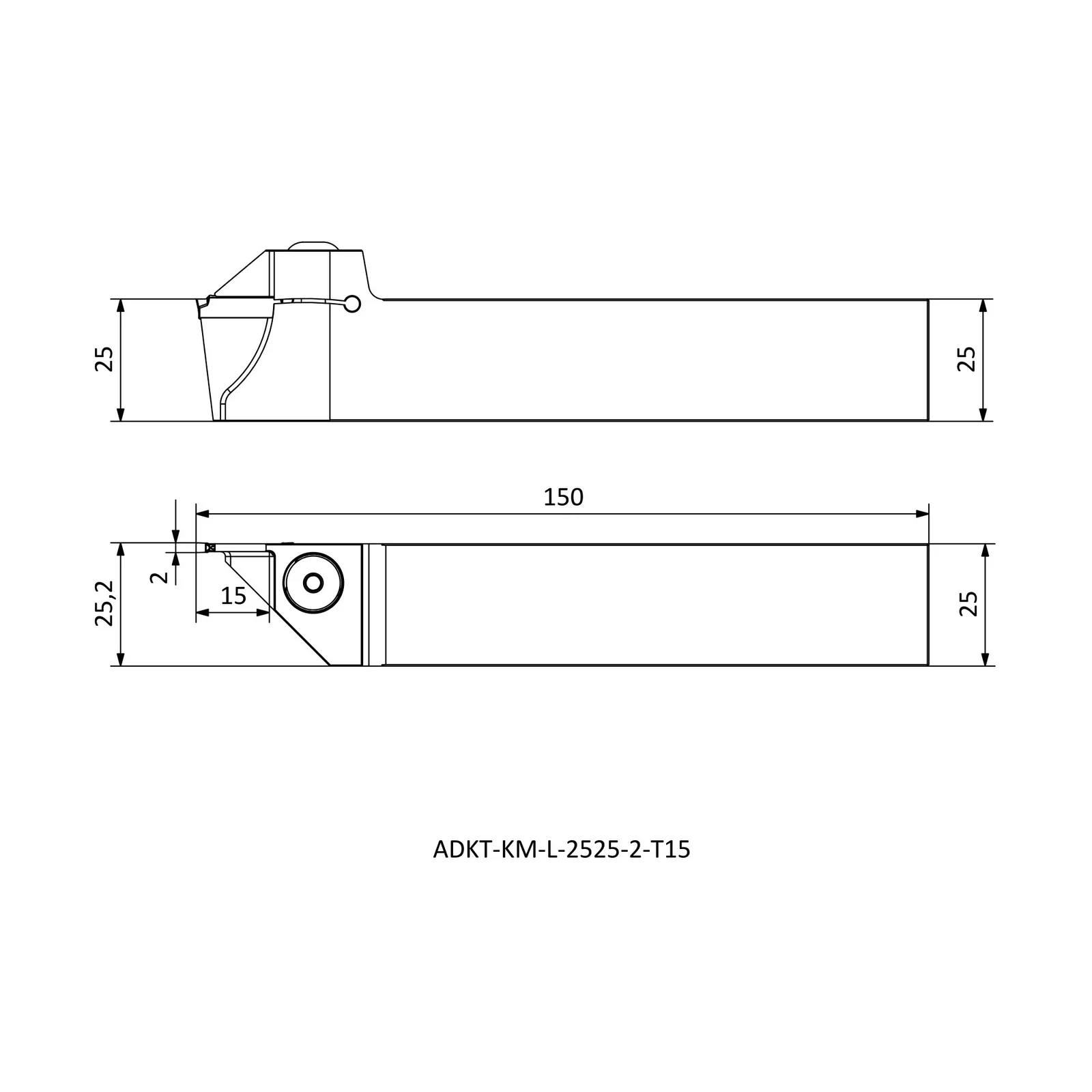

Specifications — ADKT-KM-L-2525-2-T15
| Insert Code | Insert designation | A4. - 2 |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| LF | Functional length (mm) | 150 |
| WF | Functional width (mm) | 25.3 |
| HF=H | Functional height (mm) | 25 |
| B | Shank width (mm) | 25 |
| CDX | Cutting depth, maximum (mm) | 15 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 10 sizes in ADKT-KM-R/L
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| ADKT-KM-L-2020-2-T15 | L | 125 | 20.3 | 20 |
| ADKT-KM-R-2020-2-T15 | R | 125 | 20.3 | 20 |
| ADKT-KM-L-2525-2-T15 | L | 150 | 25.3 | 25 |
| ADKT-KM-R-2525-2-T15 | R | 150 | 25.3 | 25 |
| ADKT-KM-L-2020-3-T20 | L | 125 | 20.4 | 20 |
| ADKT-KM-R-2020-3-T20 | R | 125 | 20.4 | 20 |
| ADKT-KM-L-2525-3-T22 | L | 150 | 25.4 | 25 |
| ADKT-KM-R-2525-3-T22 | R | 150 | 25.4 | 25 |
| ADKT-KM-L-2525-4-T22 | L | 150 | 25.5 | 25 |
| ADKT-KM-R-2525-4-T22 | R | 150 | 25.5 | 25 |
