Tool Holders / External Grooving Toolholders
ADKT-RD-R-2020-2-T17
ADKT-RD-R/L series · see all 16 sizes
Insert compatibility
This size is built for the insert designation RD. - 2 (as listed in the catalogue data).

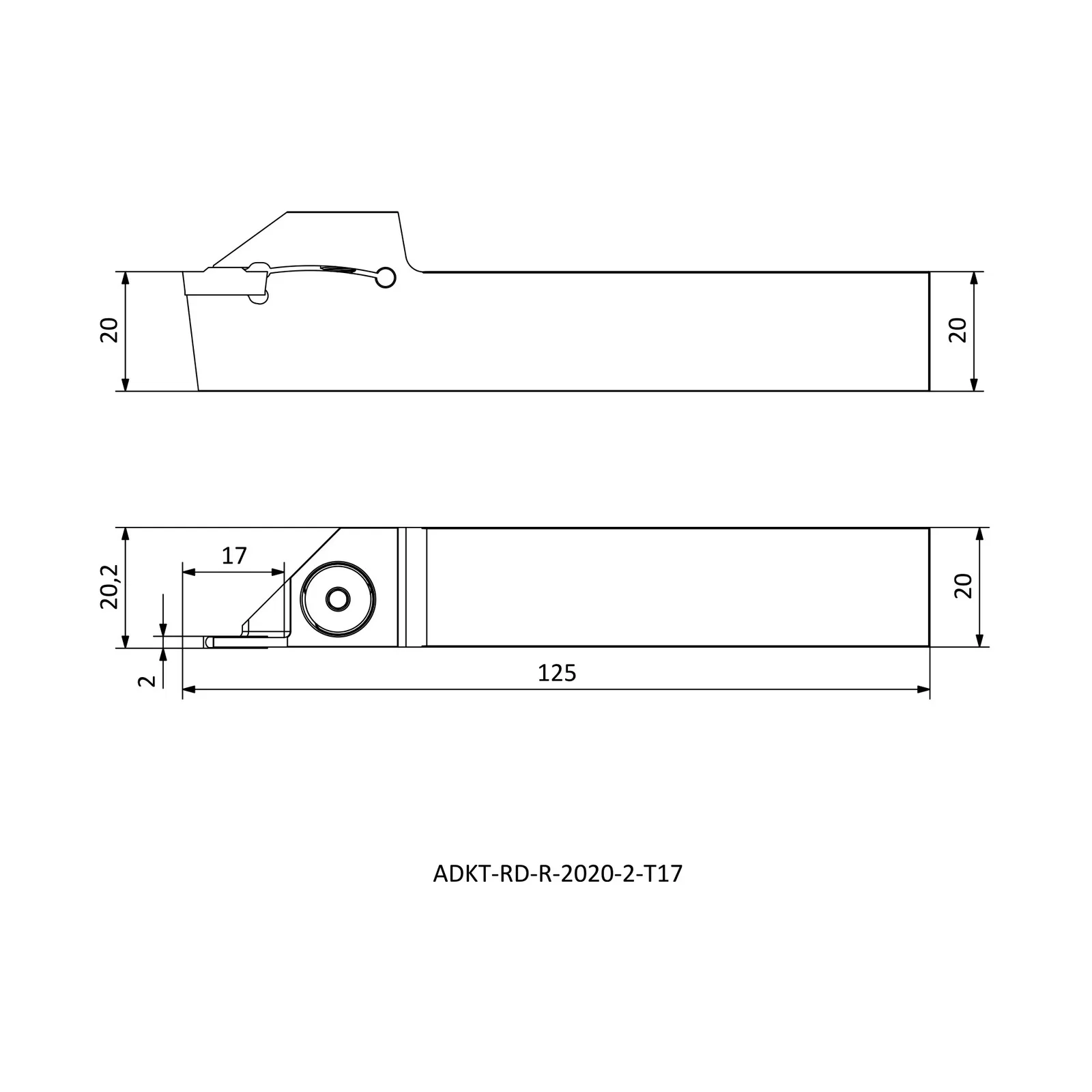

Specifications — ADKT-RD-R-2020-2-T17
| Insert Code | Insert designation | RD. - 2 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| LF | Functional length (mm) | 125 |
| WF | Functional width (mm) | 20.2 |
| HF=H | Functional height (mm) | 20 |
| B | Shank width (mm) | 20 |
| CDX | Cutting depth, maximum (mm) | 17 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 16 sizes in ADKT-RD-R/L
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| ADKT-RD-L-1616-2-T17 | L | 125 | 16.2 | 16 |
| ADKT-RD-R-1616-2-T17 | R | 125 | 16.2 | 16 |
| ADKT-RD-L-2020-2-T17 | L | 125 | 20.2 | 20 |
| ADKT-RD-R-2020-2-T17 | R | 125 | 20.2 | 20 |
| ADKT-RD-L-2525-2-T17 | L | 150 | 25.2 | 25 |
| ADKT-RD-R-2525-2-T17 | R | 150 | 25.2 | 25 |
| ADKT-RD-L-1616-3-T20 | L | 125 | 16.3 | 16 |
| ADKT-RD-R-1616-3-T20 | R | 125 | 16.3 | 16 |
| ADKT-RD-L-2020-3-T25 | L | 125 | 20.3 | 20 |
| ADKT-RD-R-2020-3-T25 | R | 125 | 20.3 | 20 |
| ADKT-RD-L-2525-3-T25 | L | 150 | 25.3 | 25 |
| ADKT-RD-R-2525-3-T25 | R | 150 | 25.3 | 25 |
| ADKT-RD-L-2020-4-T30 | L | 125 | 20.4 | 20 |
| ADKT-RD-R-2020-4-T30 | R | 125 | 20.4 | 20 |
| ADKT-RD-L-2525-4-T30 | L | 150 | 25.5 | 25 |
| ADKT-RD-R-2525-4-T30 | R | 150 | 25.5 | 25 |
