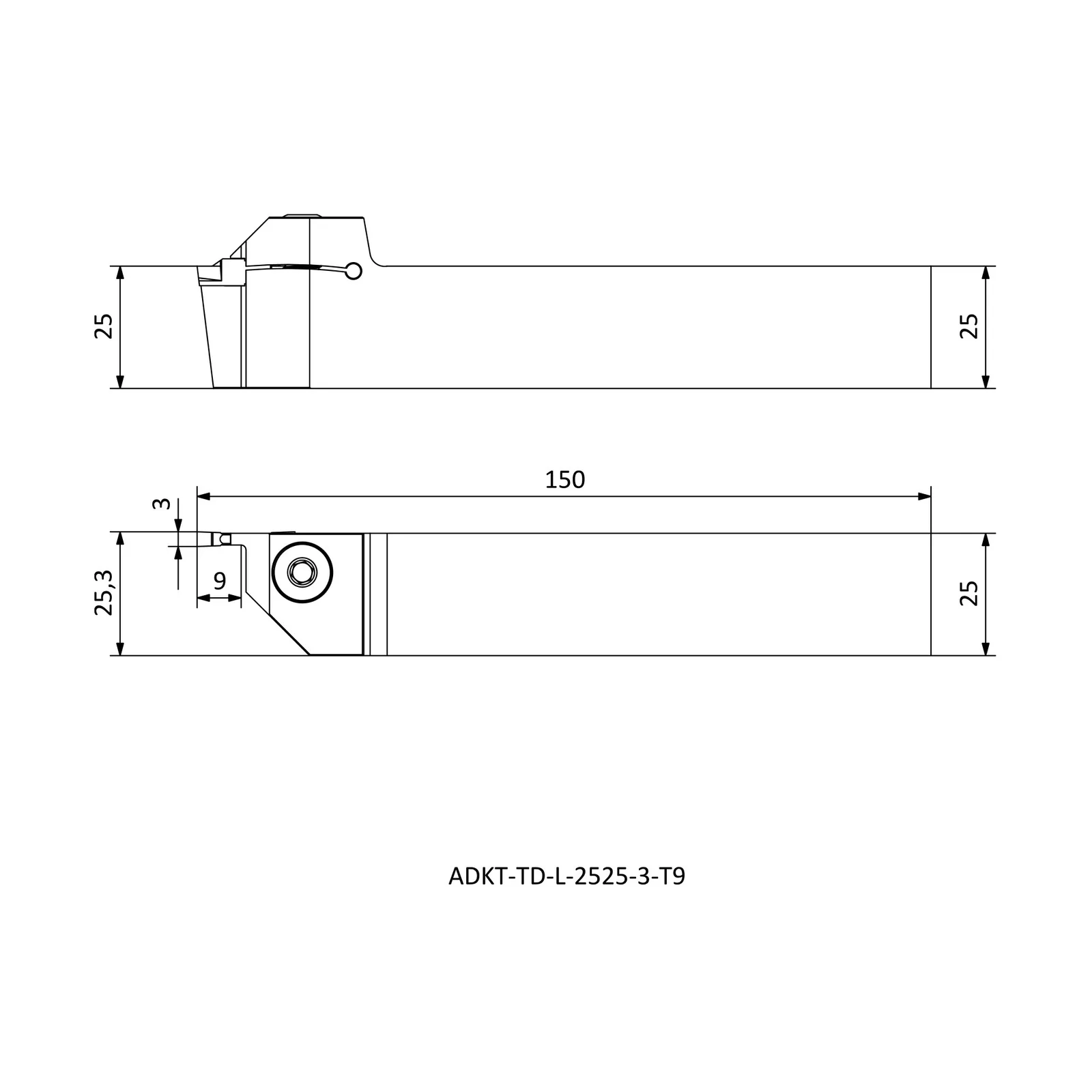

ADKT-TD-L-2525-3-T9 — dimensioned drawing
Tool Holders / External Grooving Toolholders

ADKT-TD-L-2525-3-T9

ADKT-TD-R/L series · see all 54 sizes

Insert compatibility

This size is built for the insert designation TD. - 3 (as listed in the catalogue data).

Ask about this size

Specifications — ADKT-TD-L-2525-3-T9

Insert Code Insert designation TD. - 3
Product Direction Cutting direction (hand) L
LF Functional length (mm) 150
WF Functional width (mm) 25.4
HF=H Functional height (mm) 25
B Shank width (mm) 25
CDX Cutting depth, maximum (mm) 9

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

All 54 sizes in ADKT-TD-R/L

Product codeCutting direction (hand)Functional length (mm)Functional width (mm)Functional height (mm)
ADKT-TD-L-1212-2-T15 L10012.212
ADKT-TD-R-1212-2-T15 R10012.212
ADKT-TD-L-1616-2-T8 L12516.216
ADKT-TD-R-1616-2-T8 R12516.216
ADKT-TD-L-1616-2-T15 L12516.216
ADKT-TD-R-1616-2-T15 R12516.216
ADKT-TD-L-2020-2-T9 L12520.220
ADKT-TD-R-2020-2-T9 R12520.220
ADKT-TD-L-2020-2-T15 L12520.220
ADKT-TD-R-2020-2-T15 R12520.220
ADKT-TD-L-2020-2-T17 L12520.220
ADKT-TD-R-2020-2-T17 R12520.220
ADKT-TD-L-2020-2-T20 L12520.220
ADKT-TD-R-2020-2-T20 R12520.220
ADKT-TD-L-2525-2-T8 L15025.225
ADKT-TD-R-2525-2-T8 R15025.225
ADKT-TD-L-2525-2-T17 L15025.225
ADKT-TD-R-2525-2-T17 R15025.225
ADKT-TD-L-1212-3-T15 L10012.412
ADKT-TD-R-1212-3-T15 R10012.412
ADKT-TD-L-1616-3-T15 L12516.416
ADKT-TD-R-1616-3-T15 R12516.416
ADKT-TD-L-2020-3-T12 L12520.420
ADKT-TD-R-2020-3-T12 R12520.420
ADKT-TD-L-2020-3-T20 L12520.420
ADKT-TD-R-2020-3-T20 R12520.420
ADKT-TD-L-2020-3-T25 L12520.420
ADKT-TD-R-2020-3-T25 R12520.420
ADKT-TD-L-2020-3-T30 L12520.420
ADKT-TD-R-2020-3-T30 R12520.420
ADKT-TD-L-2525-3-T9 L15025.425
ADKT-TD-R-2525-3-T9 R15025.425
ADKT-TD-L-2525-3-T12 L15025.425
ADKT-TD-R-2525-3-T12 R15025.425
ADKT-TD-L-2525-3-T22 L15025.425
ADKT-TD-R-2525-3-T22 R15025.425
ADKT-TD-L-2525-3-T25 L15025.425
ADKT-TD-R-2525-3-T25 R15025.425
ADKT-TD-L-2525-3-T30 L15025.425
ADKT-TD-R-2525-3-T30 R15025.425
ADKT-TD-L-3232-3-T25 L17032.432
ADKT-TD-R-3232-3-T25 R17032.432
ADKT-TD-L-2525-4-T10 L15025.525
ADKT-TD-R-2525-4-T10 R15025.525
ADKT-TD-L-2525-4-T15 L15025.525
ADKT-TD-R-2525-4-T15 R15025.525
ADKT-TD-L-2525-4-T22 L15025.525
ADKT-TD-R-2525-4-T22 R15025.525
ADKT-TD-L-2525-4-T25 L15025.425
ADKT-TD-R-2525-4-T25 R15025.425
ADKT-TD-L-2525-4-T30 L15025.525
ADKT-TD-R-2525-4-T30 R15025.525
ADKT-TD-L-2525-5-T25 L15025.525
ADKT-TD-R-2525-5-T25 R15025.525

Full specification table & catalogue PDF
