Tool Holders / External Grooving Toolholders
ADKT-TD-R-2020-3-T30-H
ADKT-TD-R/L-H series · see all 2 sizes
Insert compatibility
This size is built for the insert designation TD. - 3 (as listed in the catalogue data).

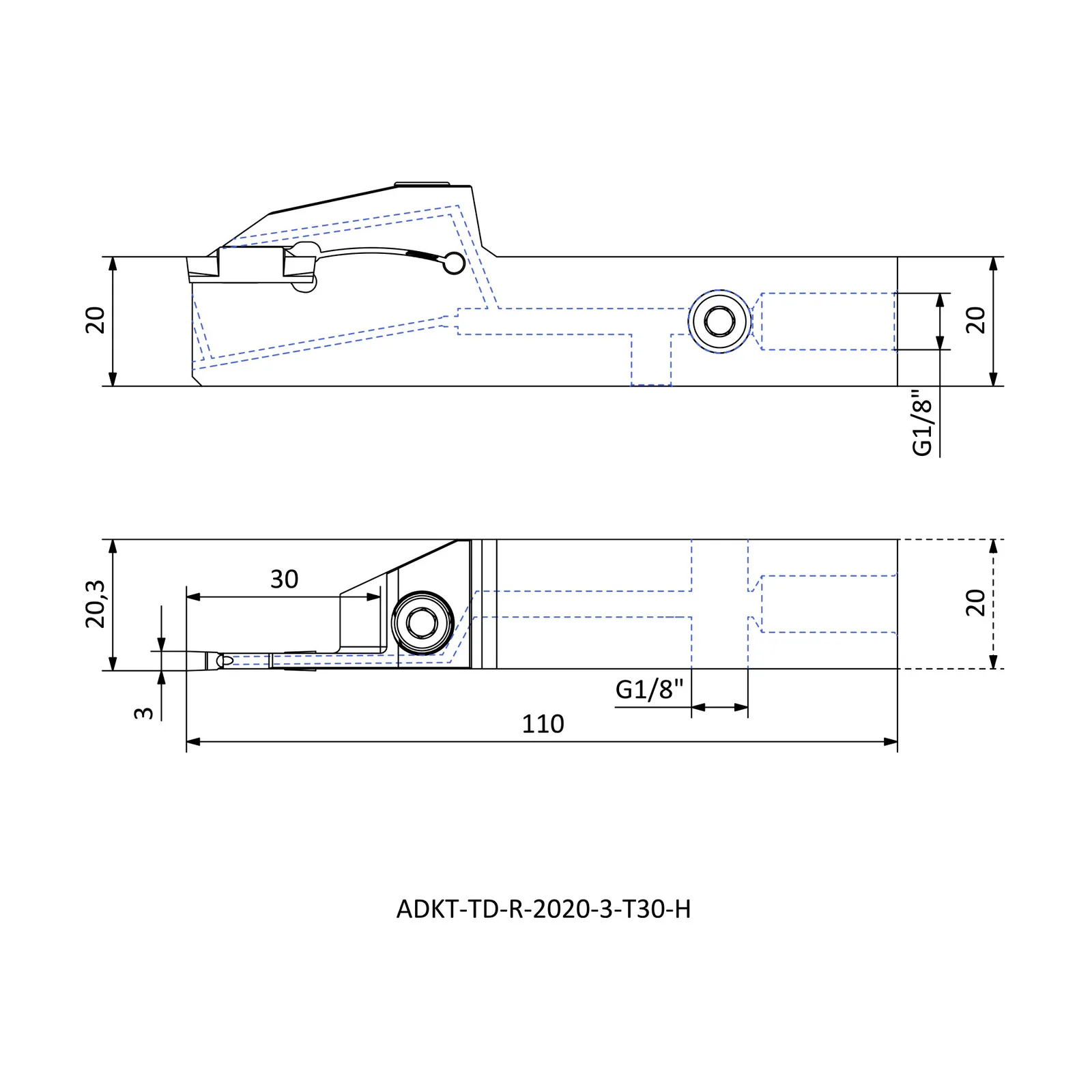

Specifications — ADKT-TD-R-2020-3-T30-H
| Insert Code | Insert designation | TD. - 3 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| LF | Functional length (mm) | 125 |
| WF | Functional width (mm) | 20.5 |
| HF=H | Functional height (mm) | 20 |
| B | Shank width (mm) | 20 |
| CDX | Cutting depth, maximum (mm) | 30 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 2 sizes in ADKT-TD-R/L-H
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| ADKT-TD-L-2020-3-T30-H | L | 125 | 20.5 | 20 |
| ADKT-TD-R-2020-3-T30-H | R | 125 | 20.5 | 20 |
